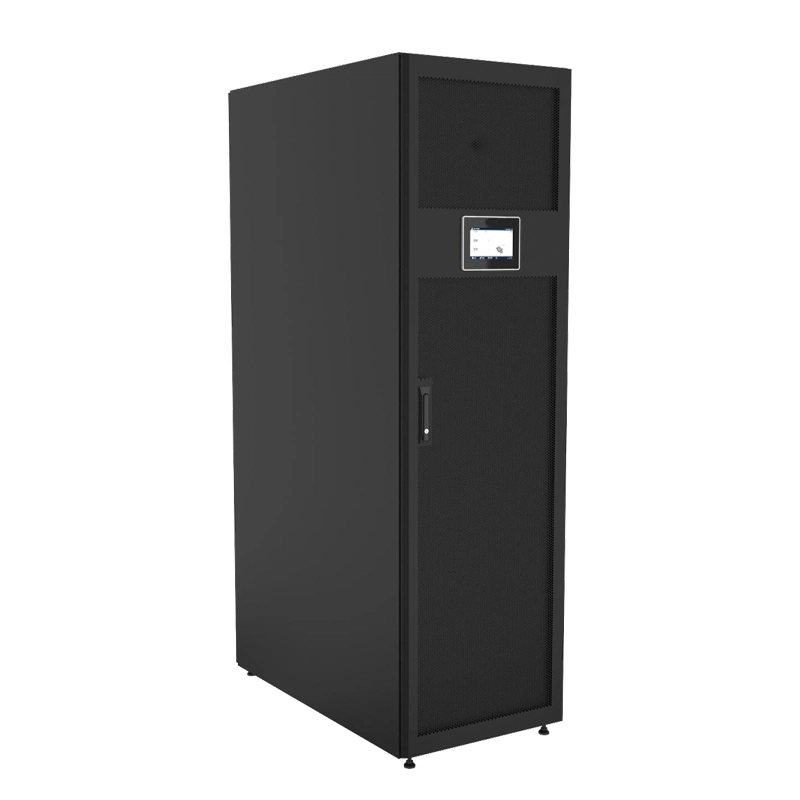

The Soeteck chilled water in-row cooling unit sits directly between server cabinets and delivers conditioned air to the rack inlets. Because the cooling coil is close to the heat source, air travels a short distance, duct losses are minimal and temperature and humidity can be held tightly. It is intended for high-density rows in data centres and for computer rooms where fast response and accurate control matter.
The range covers three rack-height models (025RC, 045RC and 065RC) in 300 mm or 600 mm widths and 1100 mm depth. Capacity depends on return air and water temperatures: with 7/12 °C chilled water and 45 °C return air (hot-aisle containment) the units deliver 47.1, 76.0 and 107.6 kW respectively, and remain fully sensible across the published operating points. Higher water temperatures such as 10/15 °C or 13/18 °C are supported, which helps chillers run longer in free-cooling mode.

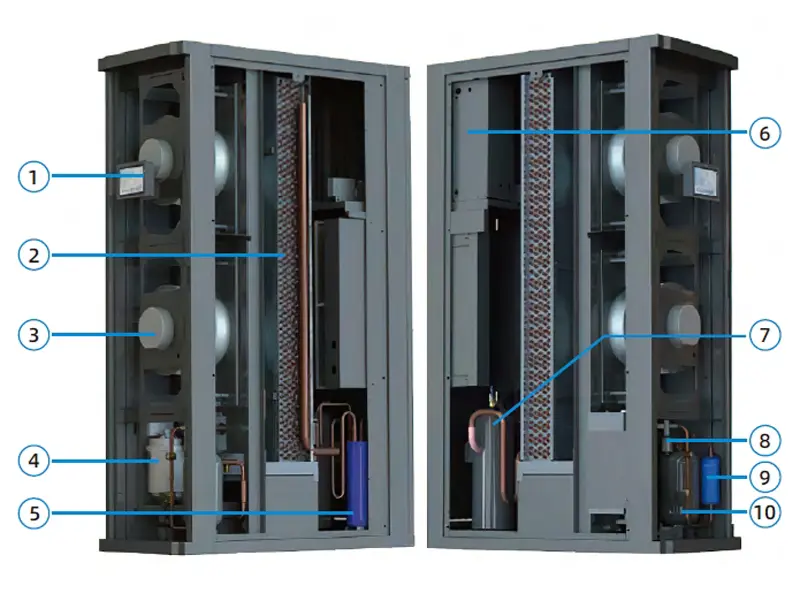

ZIEHL-ABEGG EC fans modulate speed to match cooling demand and air pressure, use 20–30% less energy than AC motor fans according to Soeteck, and soft-start to limit inrush current. The fan array is configured N+1 so airflow continues if one fan fails. The controller supports teamwork between multiple units, up to 16 remote temperature/humidity sensors and RS485 communication, with SNMP and TCP/IP available as options for integration with DCIM or BMS platforms. A 3 kW reheater is standard and a 1.5 kg/h CAREL electrode humidifier is optional.

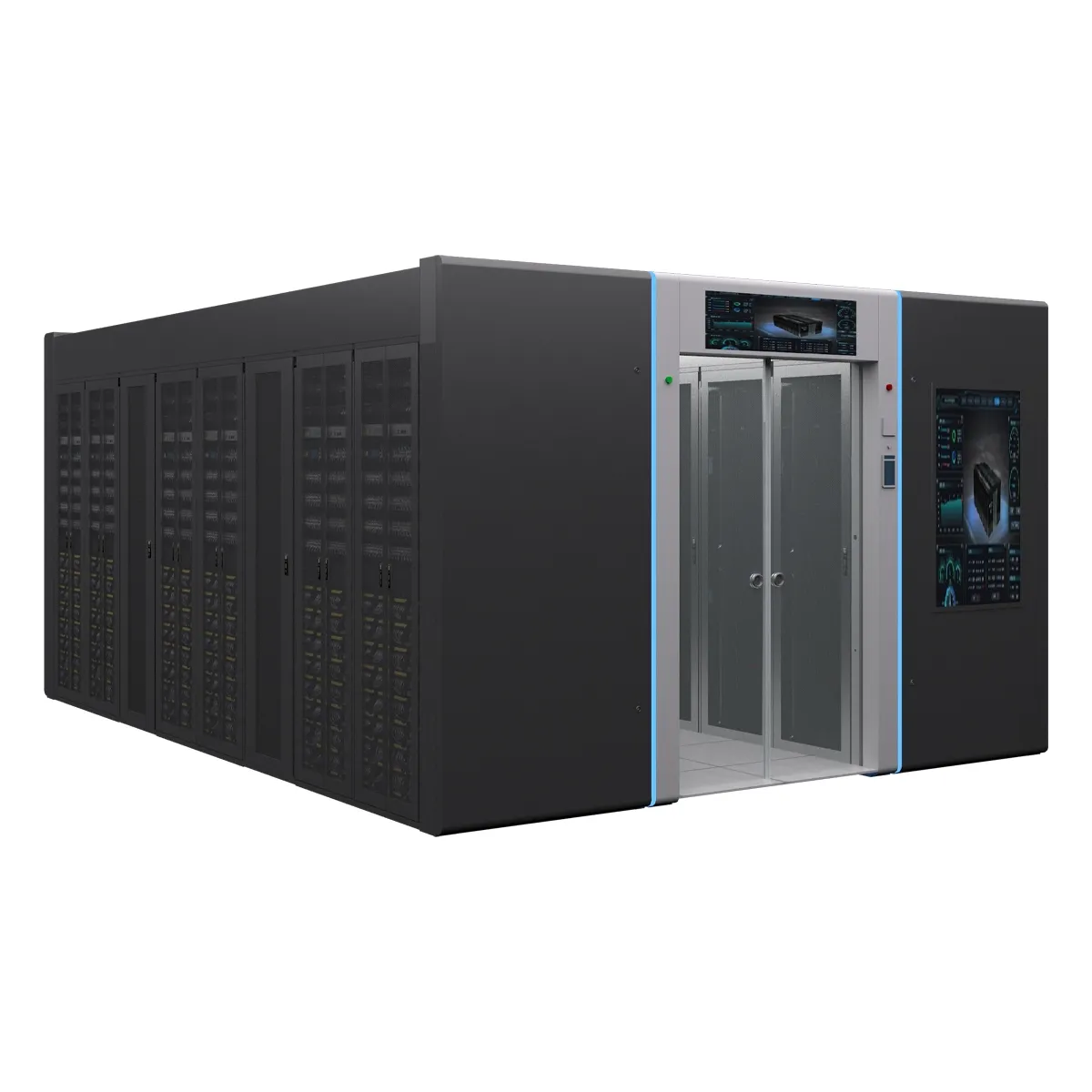

ServerInvest sizes, supplies and integrates these units with your racks, containment, servers and power distribution; the row layout can be modelled in our 3D Room Builder.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
