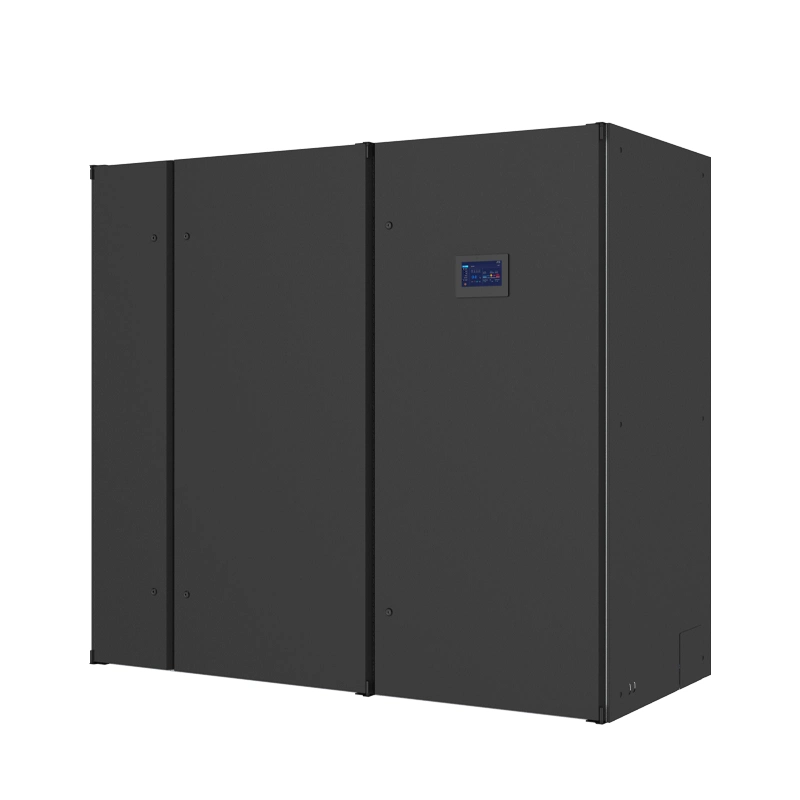

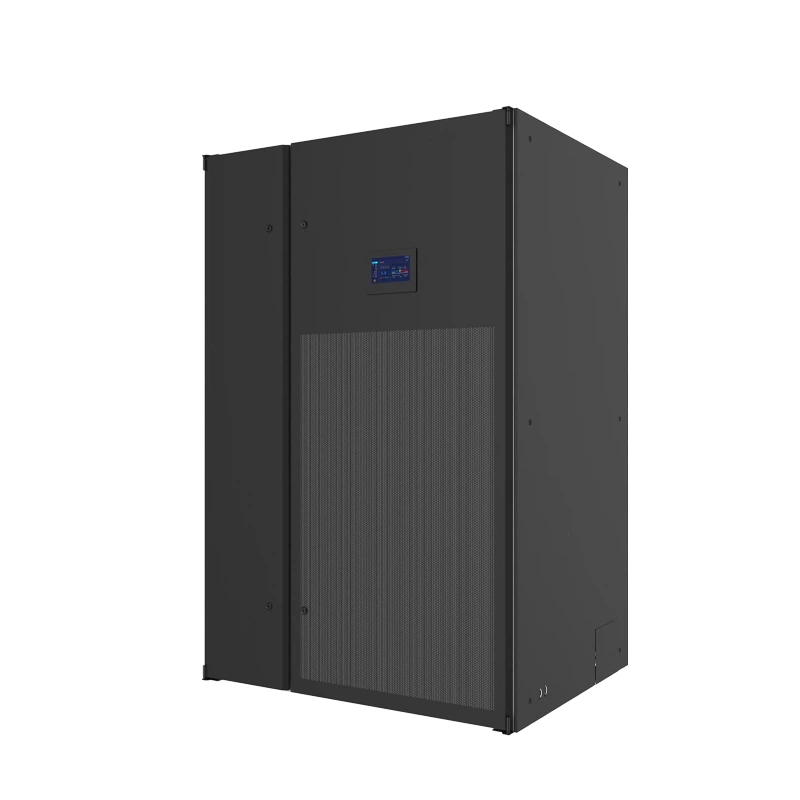

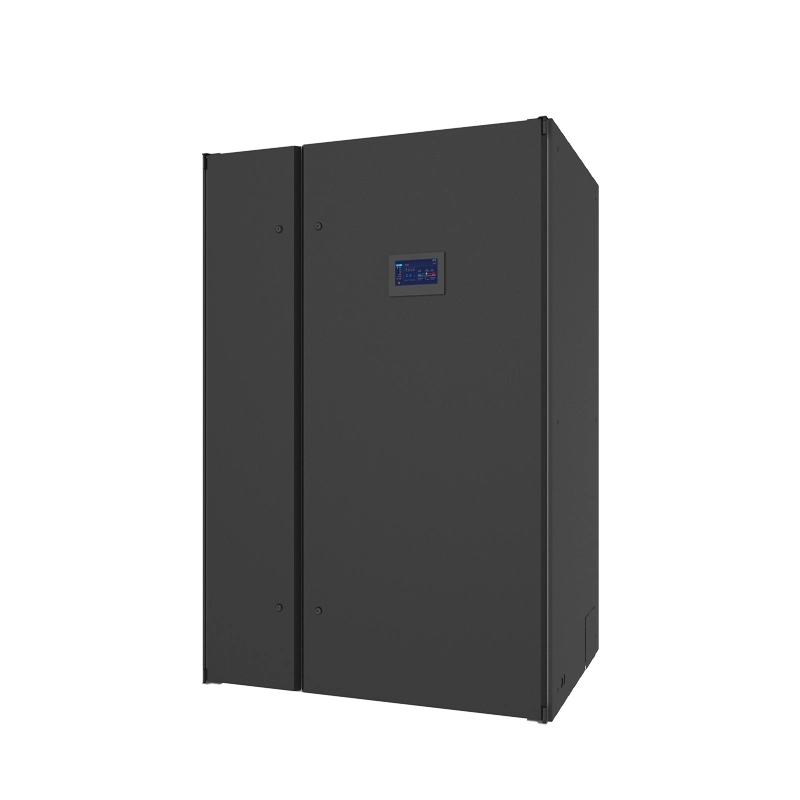

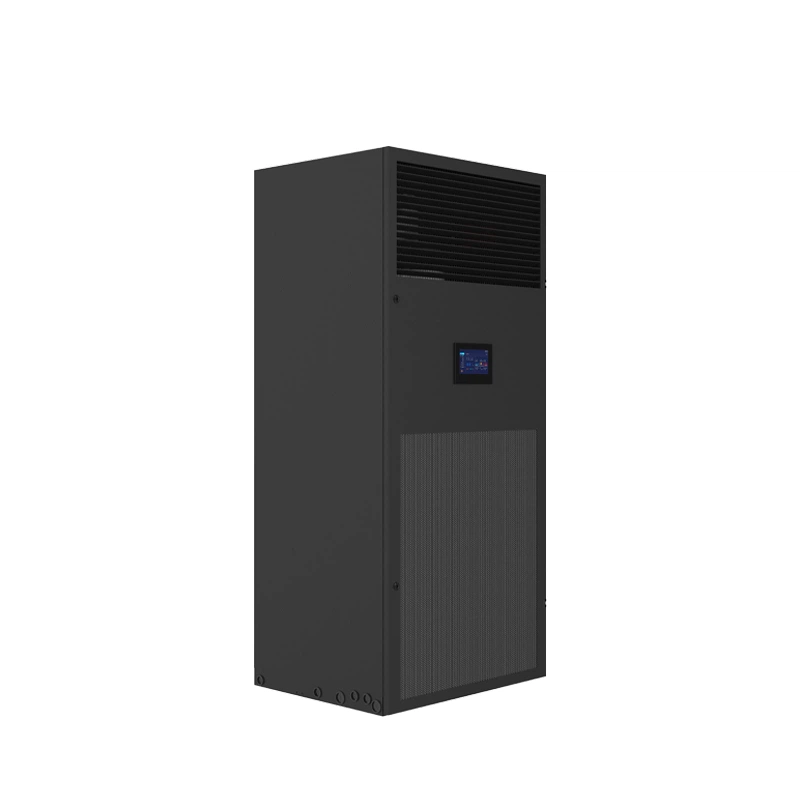

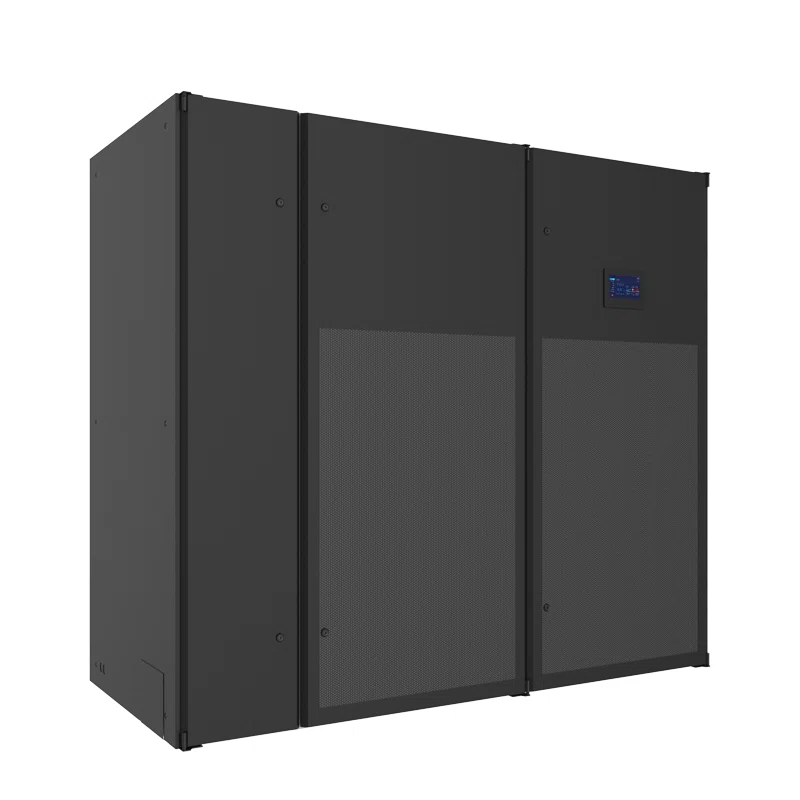

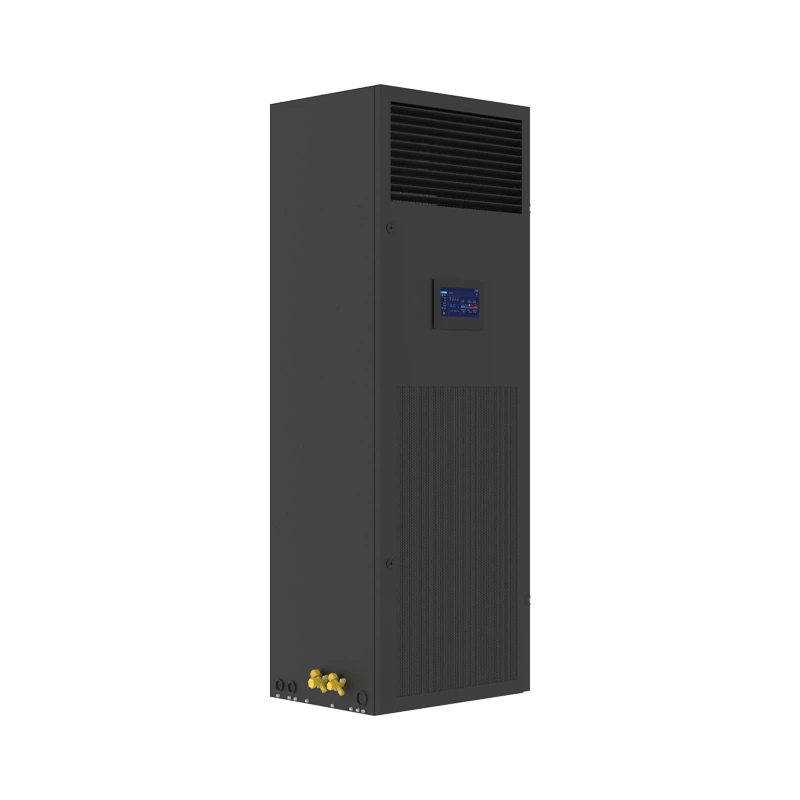

The Soeteck Datacool inverter series is a family of precision air conditioners for server rooms and data centres that need tight, continuous control of temperature and humidity. Units hold room conditions within ±1 °C and ±5% relative humidity, combining cooling, electric PTC reheat and electrode humidification in a single floor-standing cabinet.

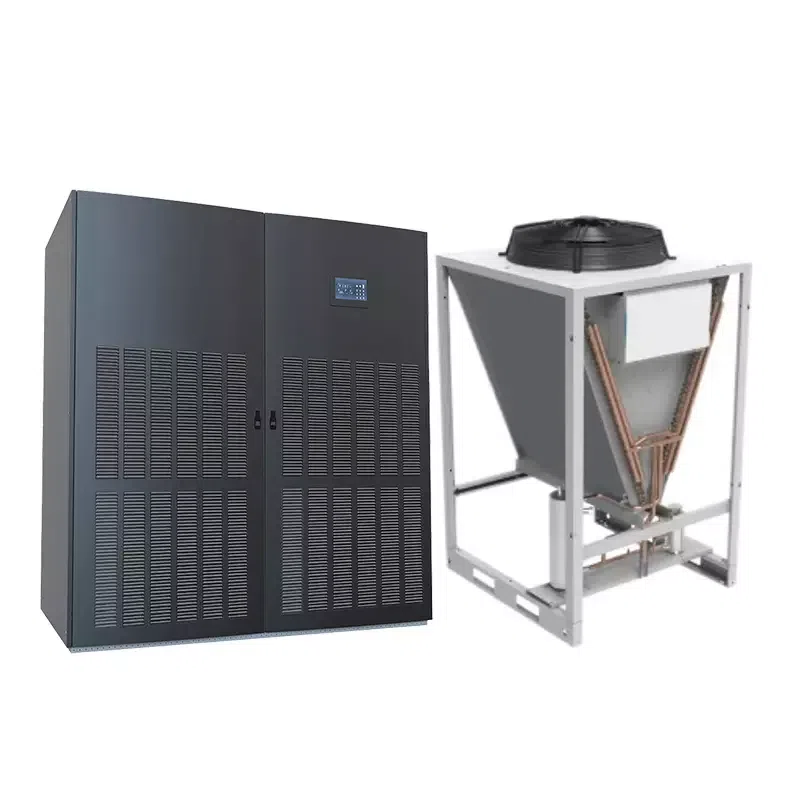

Capacity scales from 7.5 kW in the compact W-series up to 122.9 kW in the dual-circuit DA/DW range, with single- and dual-circuit indoor units and matching condensers. Cooling capacities are rated at 24 °C / 50% RH return air and 45 °C condensing temperature. Upflow and downflow versions, with front, side or underfloor supply, allow installation in rooms with or without a raised floor.

Efficiency by design

A DC inverter scroll compressor and EC fans adjust output continuously to the actual heat load, instead of cycling on and off. A precision electronic expansion valve and an intelligent controller fine-tune refrigerant flow, which lowers energy use at part load – the condition most IT rooms operate in. Besides the standard air-cooled version, water-cooled, glycol-cooled, chilled-water, dual-coil and CW+DX dual-cool variants are offered, including glycol free-cooling configurations.

An RS485 port with Modbus protocol links each unit to DCIM, BMS or remote monitoring platforms for live readings and control. Standard air-cooled outdoor units operate from −15 °C, and an optional low-temperature kit extends operation to −35 °C. Typical applications include data centres, telecom equipment rooms, laboratories, electronics manufacturing areas and medical facilities.

ServerInvest sizes, supplies and integrates Datacool units together with racks, servers and power distribution — plan the layout in our 3D Room Builder and request a quote for a configuration matched to your load.
