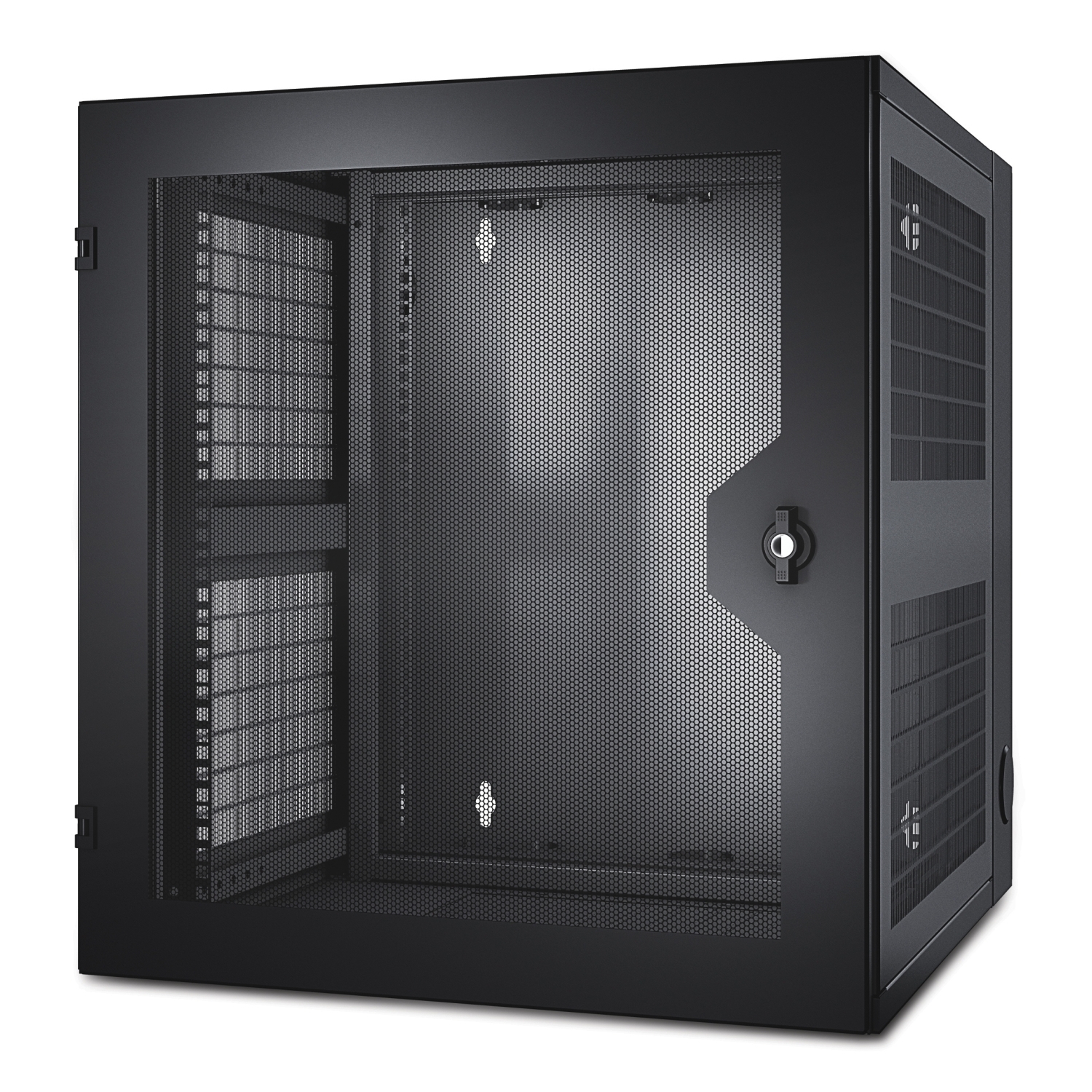

The APC AR100HD is a 13U NetShelter wall-mount enclosure that brings 19-inch rack space to places with no floor to spare - retail stores, clinics, classrooms and small offices. It measures 663 mm high, 584 mm wide and 631 mm deep and is a server depth model, taking rack-mount equipment up to 482.6 mm deep. That leaves room for compact servers and low-profile single-phase UPS units as well as networking gear.

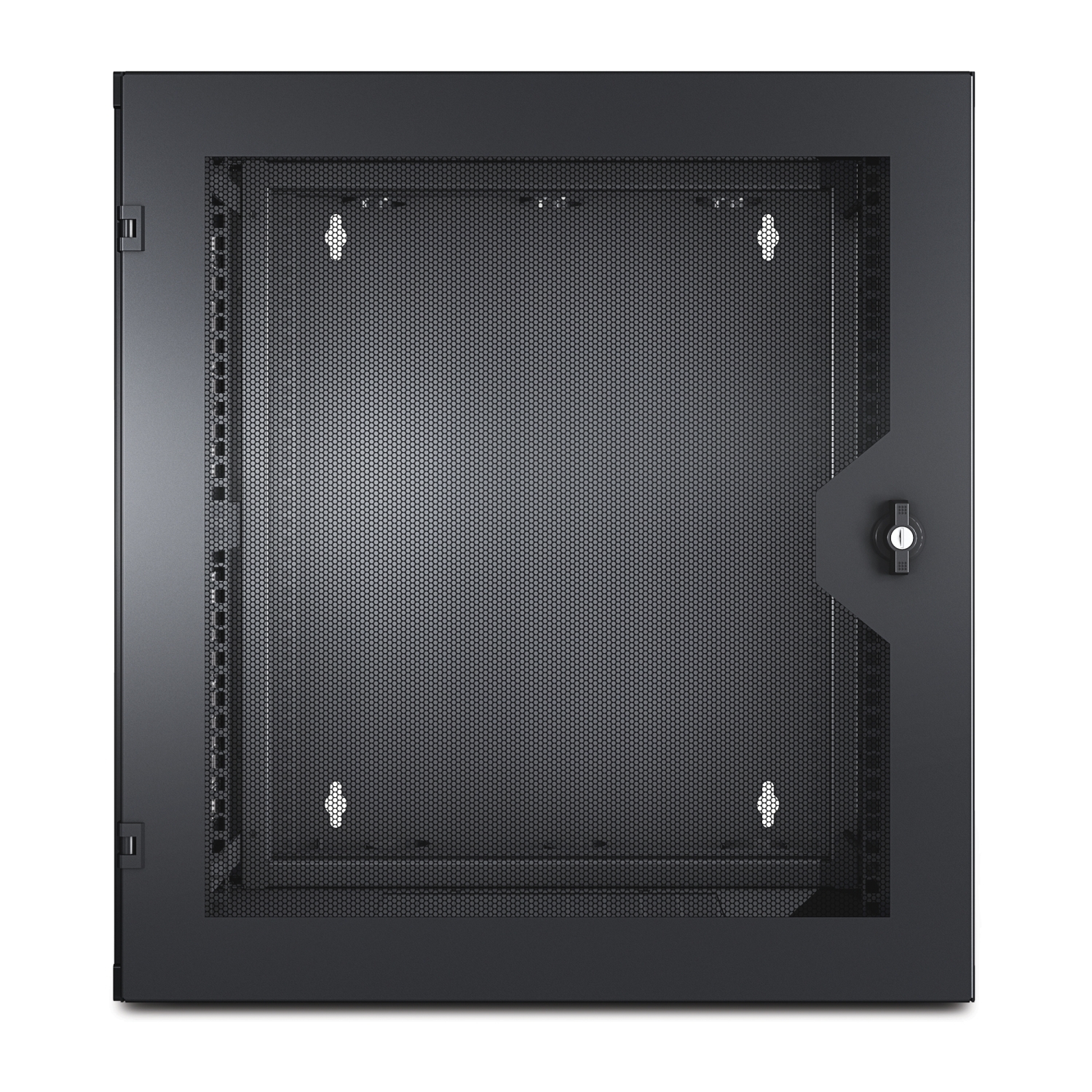

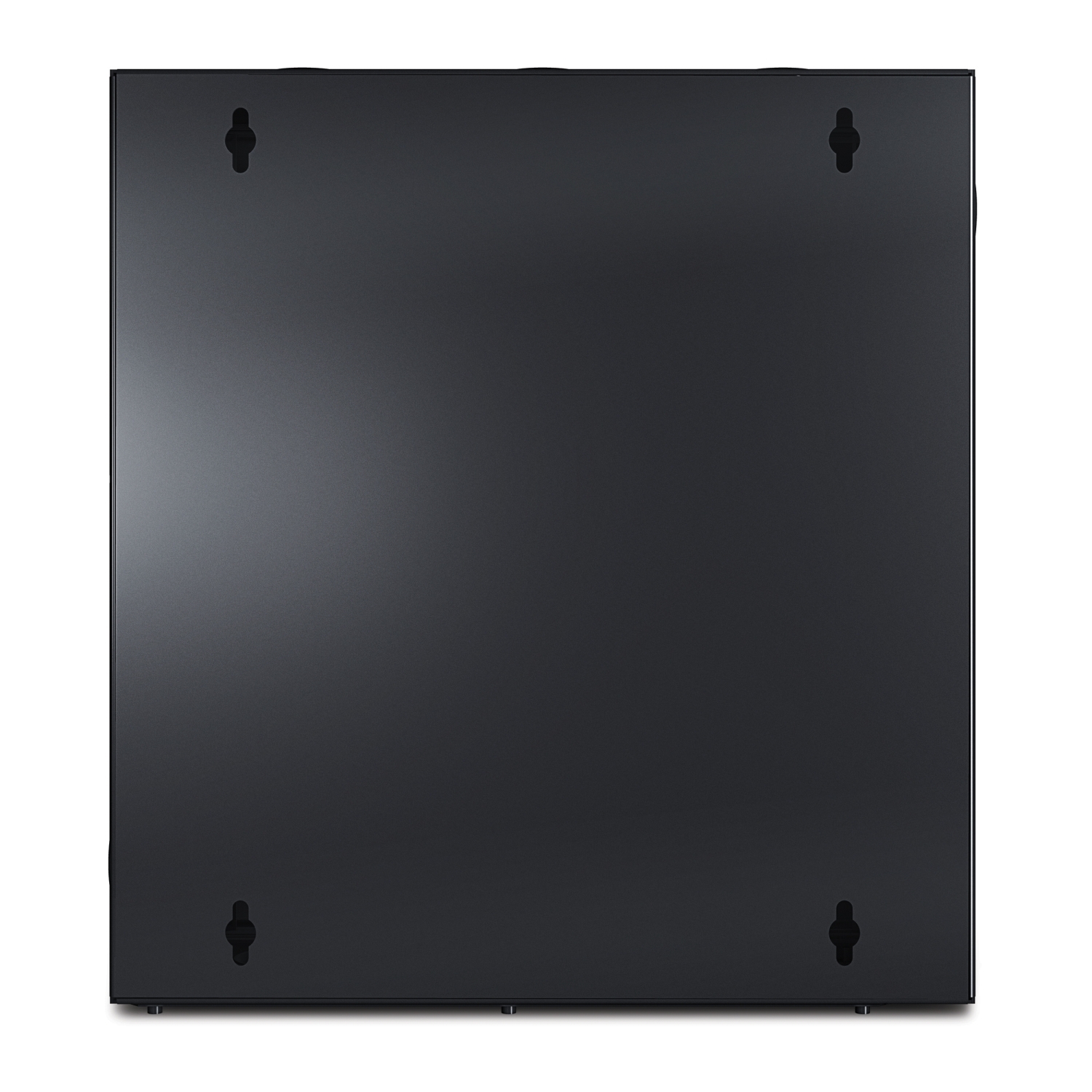

The cabinet is double-hinged: the body swings away from the wall-mounted rear section, giving full access to the back of the equipment during installation and service. A lockable vented front door provides passive airflow. The door is reversible so it can open in whichever direction suits the location.
The steel enclosure supports 90.7 kg (200 lb) of equipment, offers IP20 protection and is compatible with APC NetBotz security and monitoring options. It ships fully assembled for quick deployment.
Complies with EIA-310-E; 5-year APC warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
