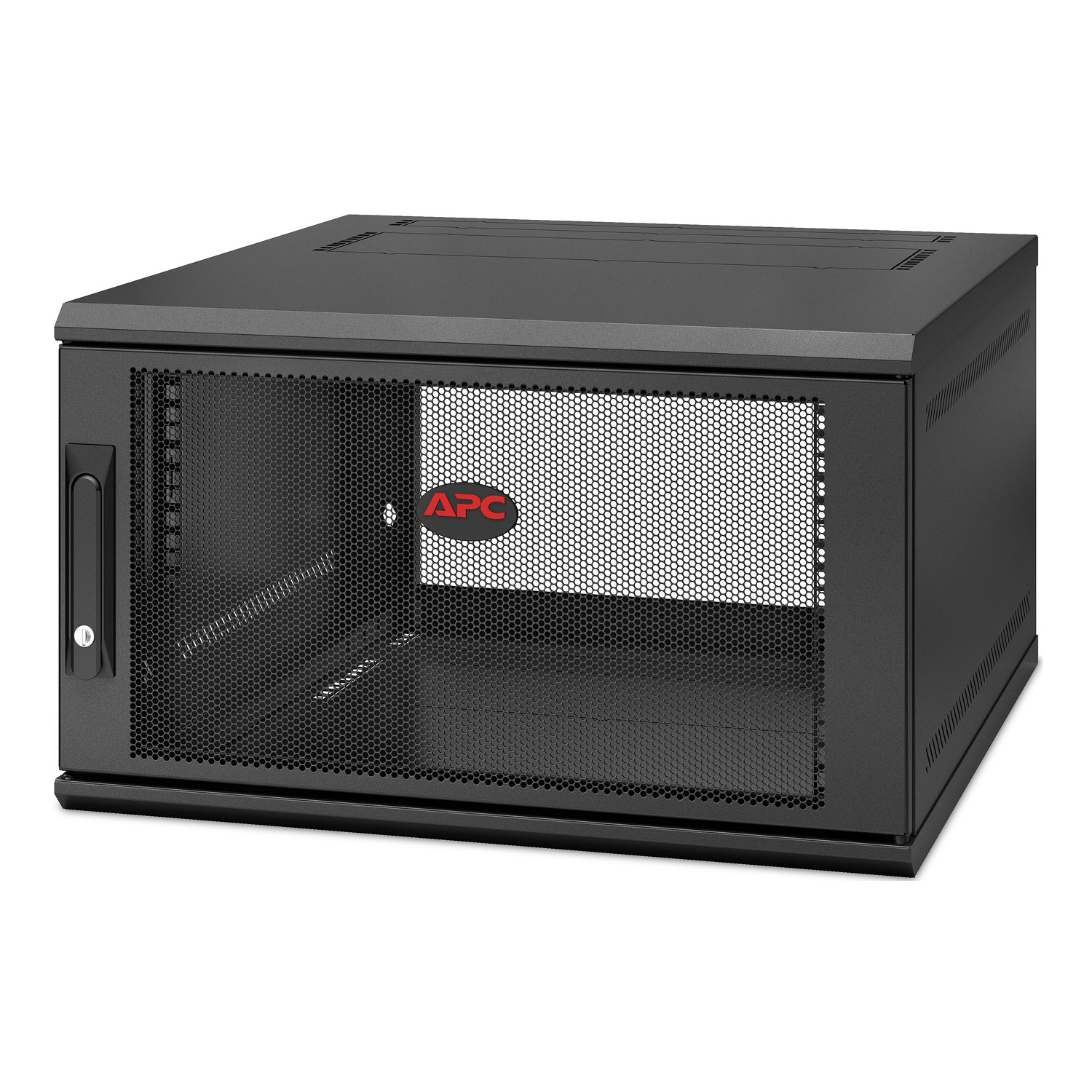

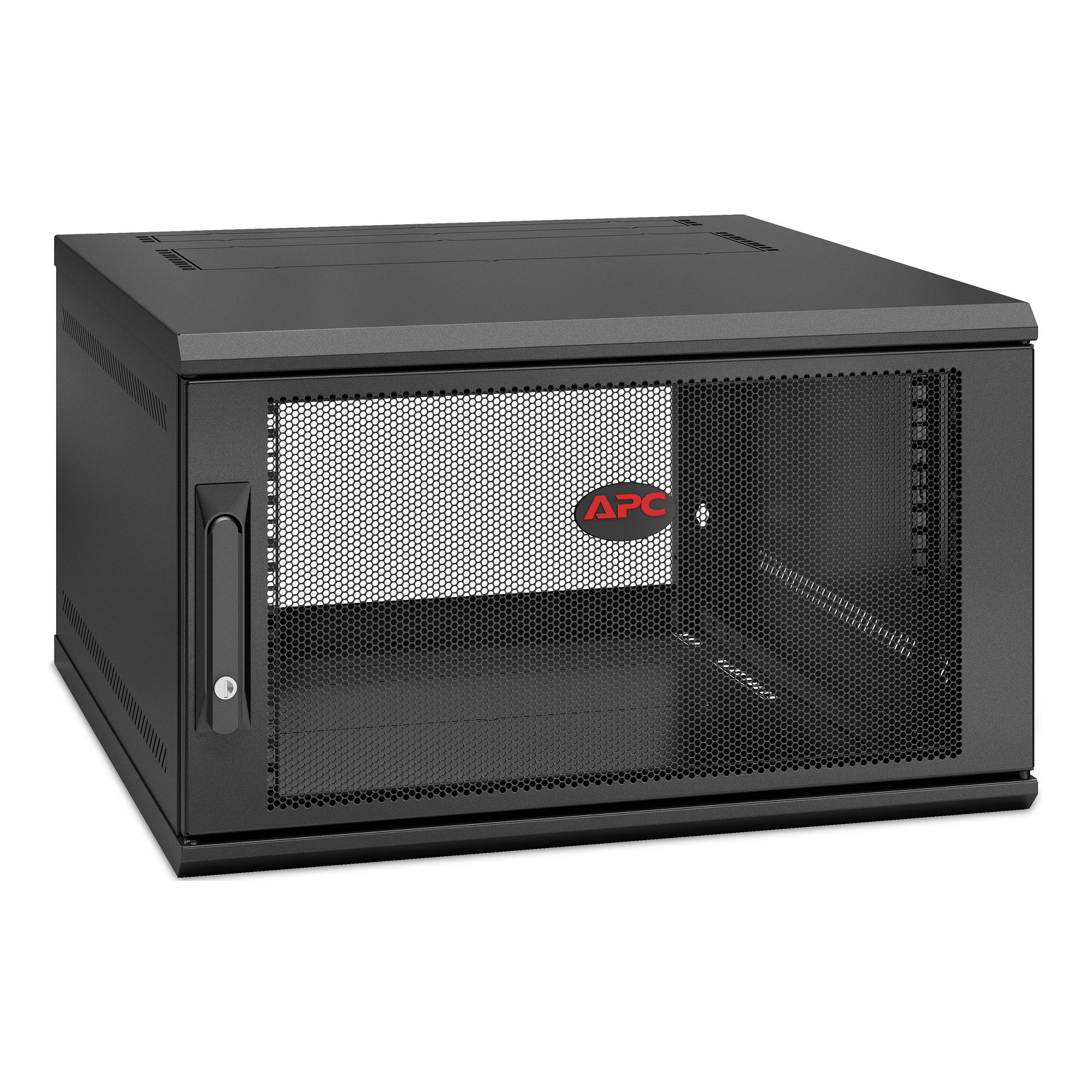

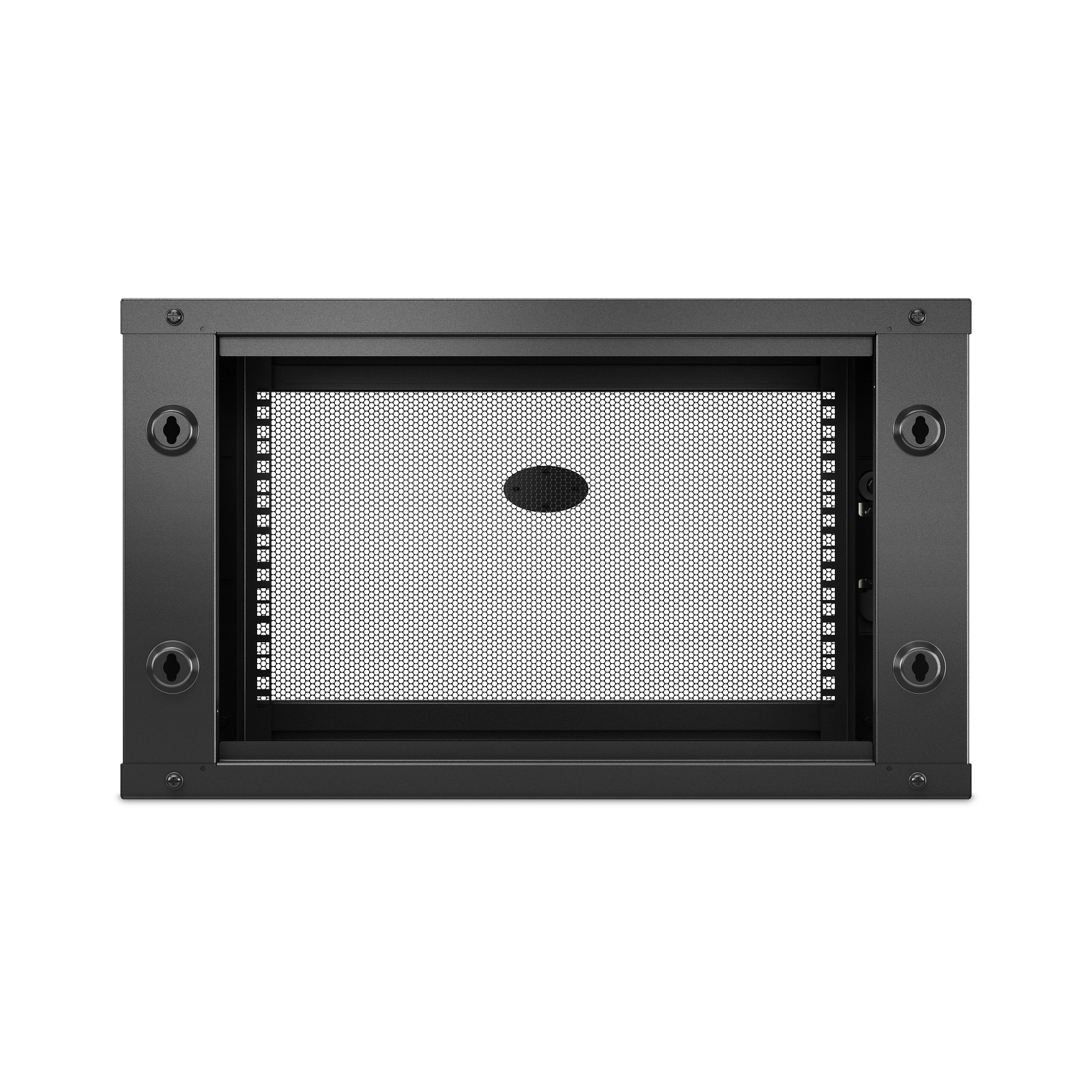

The APC AR106SH6 is a 6U NetShelter wall-mount enclosure that brings 19-inch rack space to places with no floor to spare - retail stores, clinics, classrooms and small offices. It measures 355 mm high, 600 mm wide and 600 mm deep and is a server depth model, taking rack-mount equipment from 72.9 mm up to 528.3 mm deep. That leaves room for compact servers and low-profile single-phase UPS units as well as networking gear.
A single-hinged design with a lockable, reversible perforated front door gives passive ventilation and easy front access. Knockouts in the top and bottom provide 1/2U of space for accessories and cable entry, and an optional fan tray can be added.
The steel enclosure supports 90.7 kg (200 lb) of equipment, offers IP20 protection and is compatible with APC NetBotz security and monitoring options. It ships fully assembled for quick deployment.
Complies with EIA-310-E and UL 2416; 5-year APC warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
