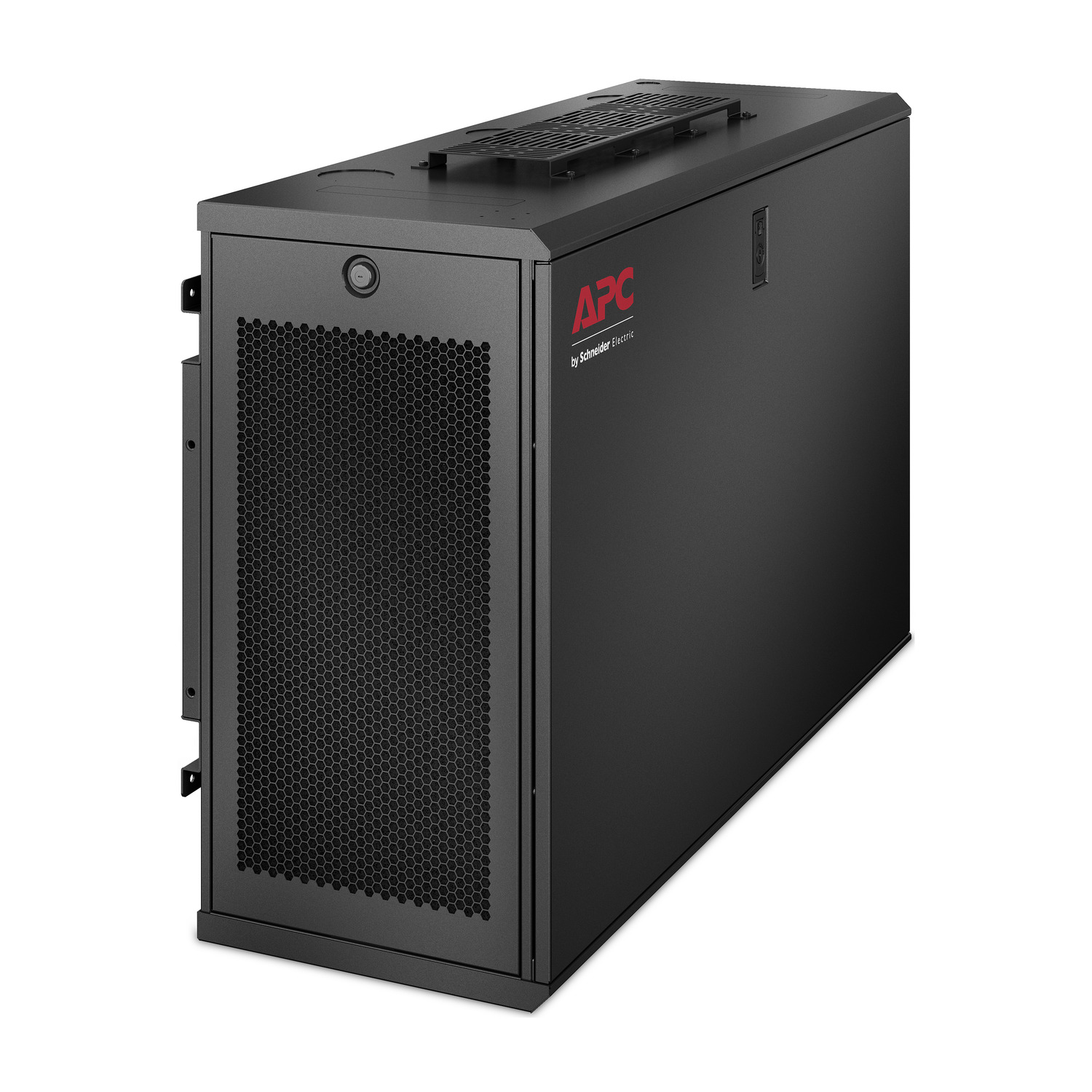

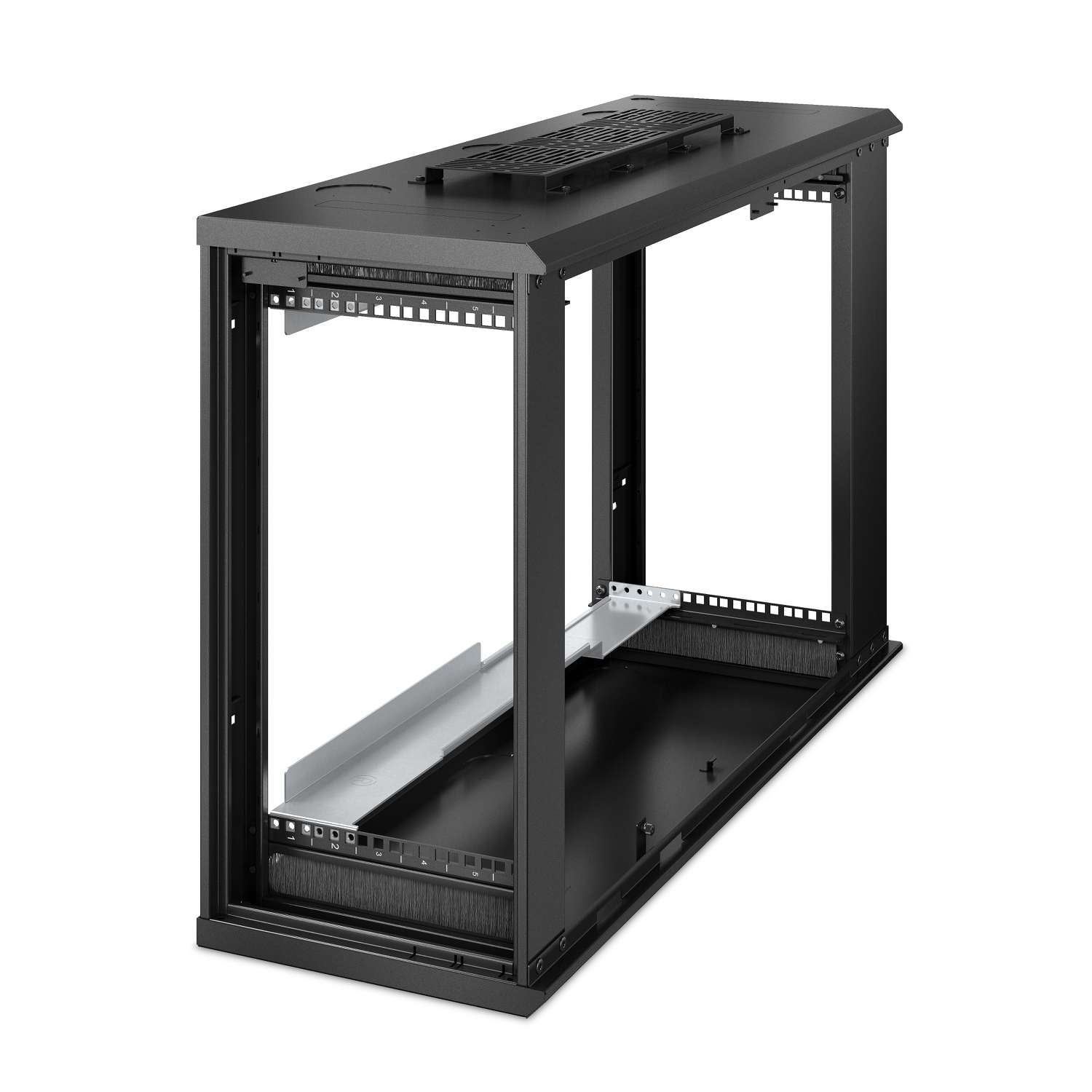

The APC AR106VI is a 6U low-profile NetShelter enclosure that mounts deep rack equipment flat against a wall. Instead of projecting far into the room like a traditional wall cabinet, it holds devices in a vertical orientation, so servers and UPS units up to 762 mm deep can be installed in corridors, back offices or retail spaces with minimal intrusion.

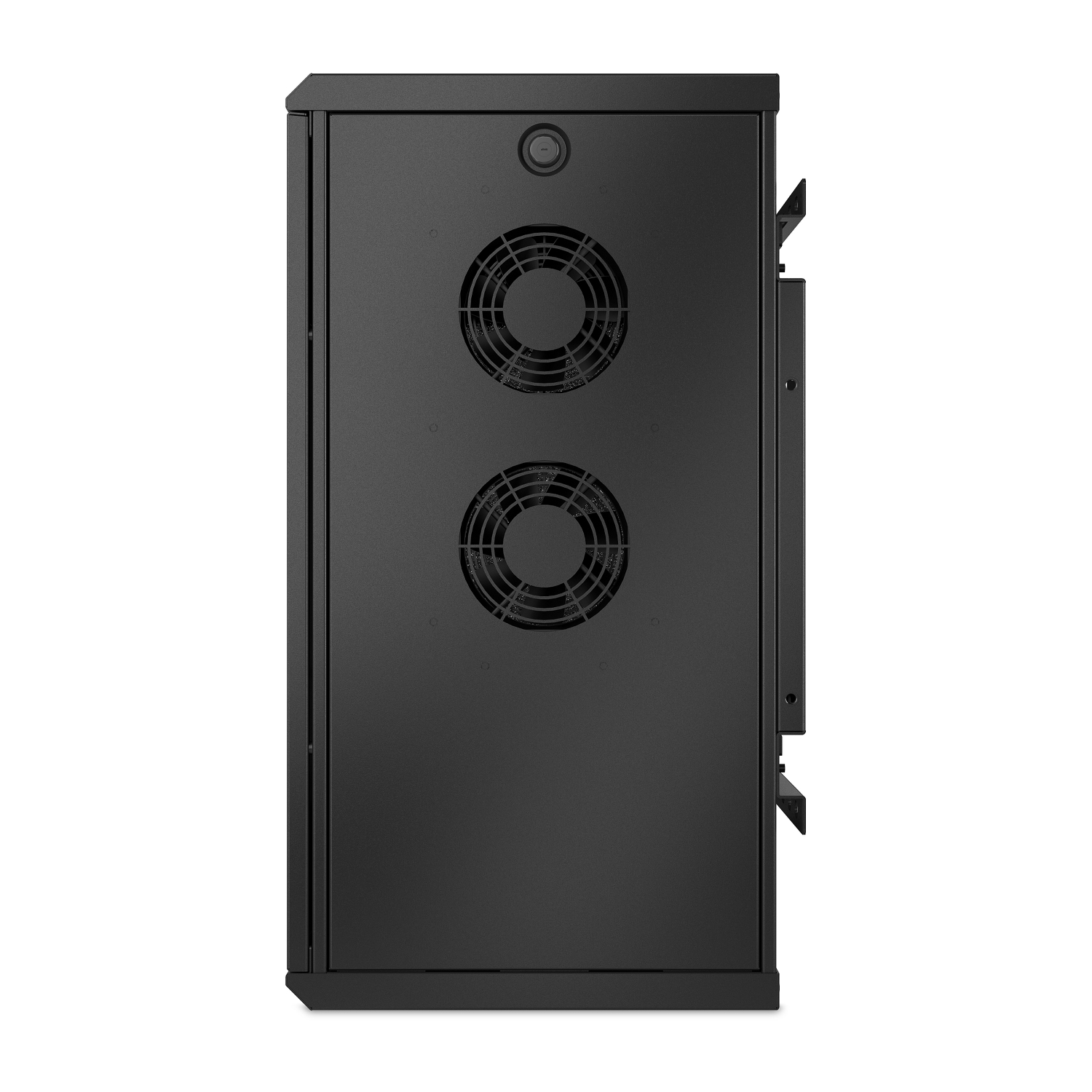

The cabinet measures 648 × 353 × 968 mm (H × W × D) according to the Schneider Electric datasheet and supports 113.4 kg static and dynamic load. A built-in 230 V fan provides active ventilation, and the perforated door protects the equipment while allowing airflow.
It is well suited to edge deployments that combine an APC Smart-UPS, NetBotz physical and environmental monitoring and EcoStruxure IT cloud-based management in one compact, wall-mounted package.
UL 2416 listed, IP20; 5-year warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
