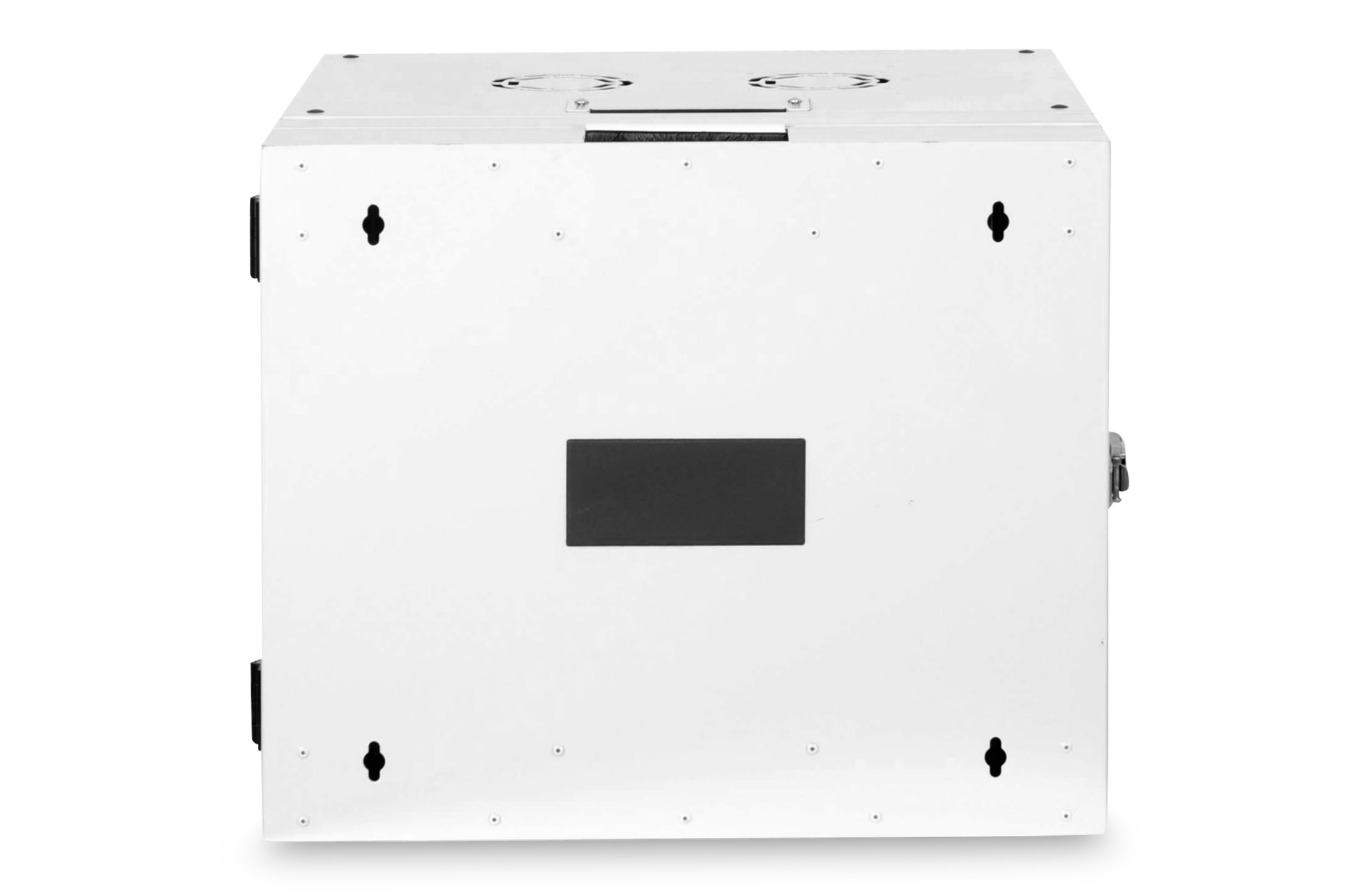

This DIGITUS Unique wall-mounting cabinet uses a double-section design: a hinge in the rear wall frame lets the whole cabinet body swing away from the wall (up to 102°), giving direct access to the rear of patch panels and active equipment without dismounting anything. The rear frame carries its own 19-inch punch-outs and brush strips for cable entry.

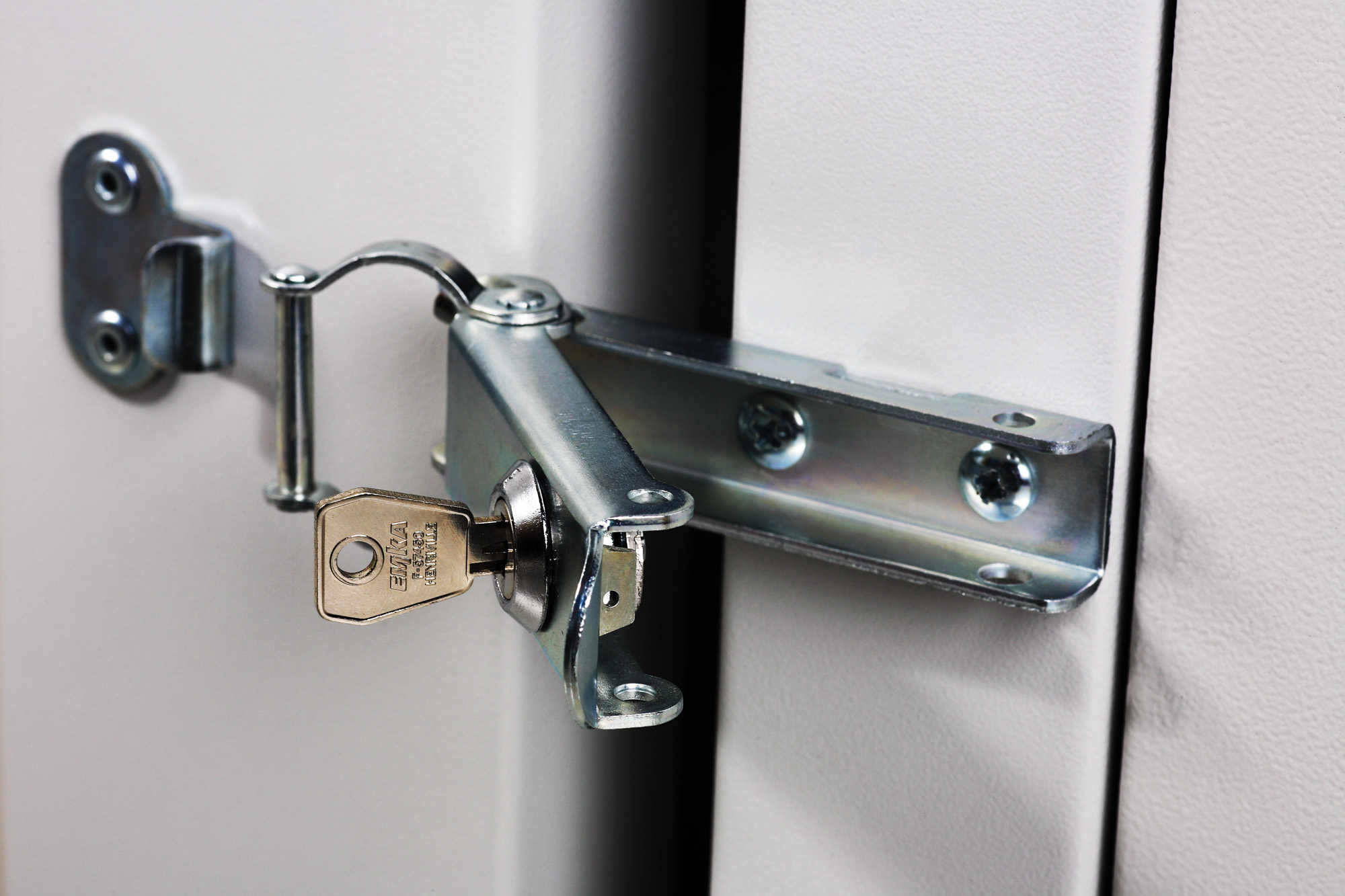

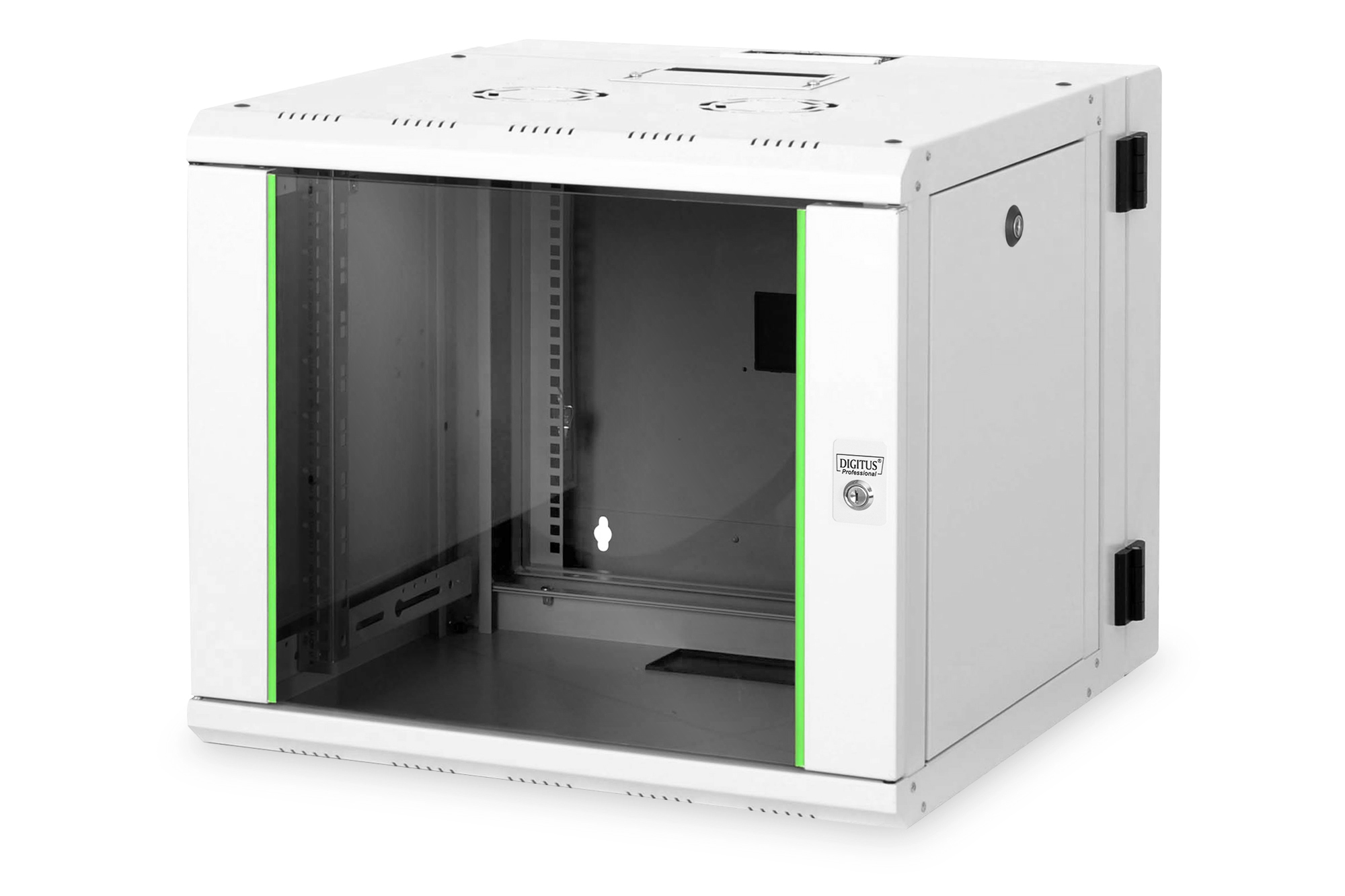

This 9U model (part number DN-19 09-U-3) measures 509 × 600 × 600 mm (H × W × D) and is finished in light grey (RAL 7035) electrostatic powder coating. It is equipped with a lockable safety-glass front door. The 19-inch mounting rails accept equipment with an installation depth of 440 mm. Rated load capacity is 100 kg. It is delivered fully assembled.
The pivoting construction is particularly useful in tight spaces where rear access would otherwise be impossible, for example in corridors, ceiling-high installations or small technical rooms. The cabinet can also be used free-standing with optional feet or castors.
Key features
