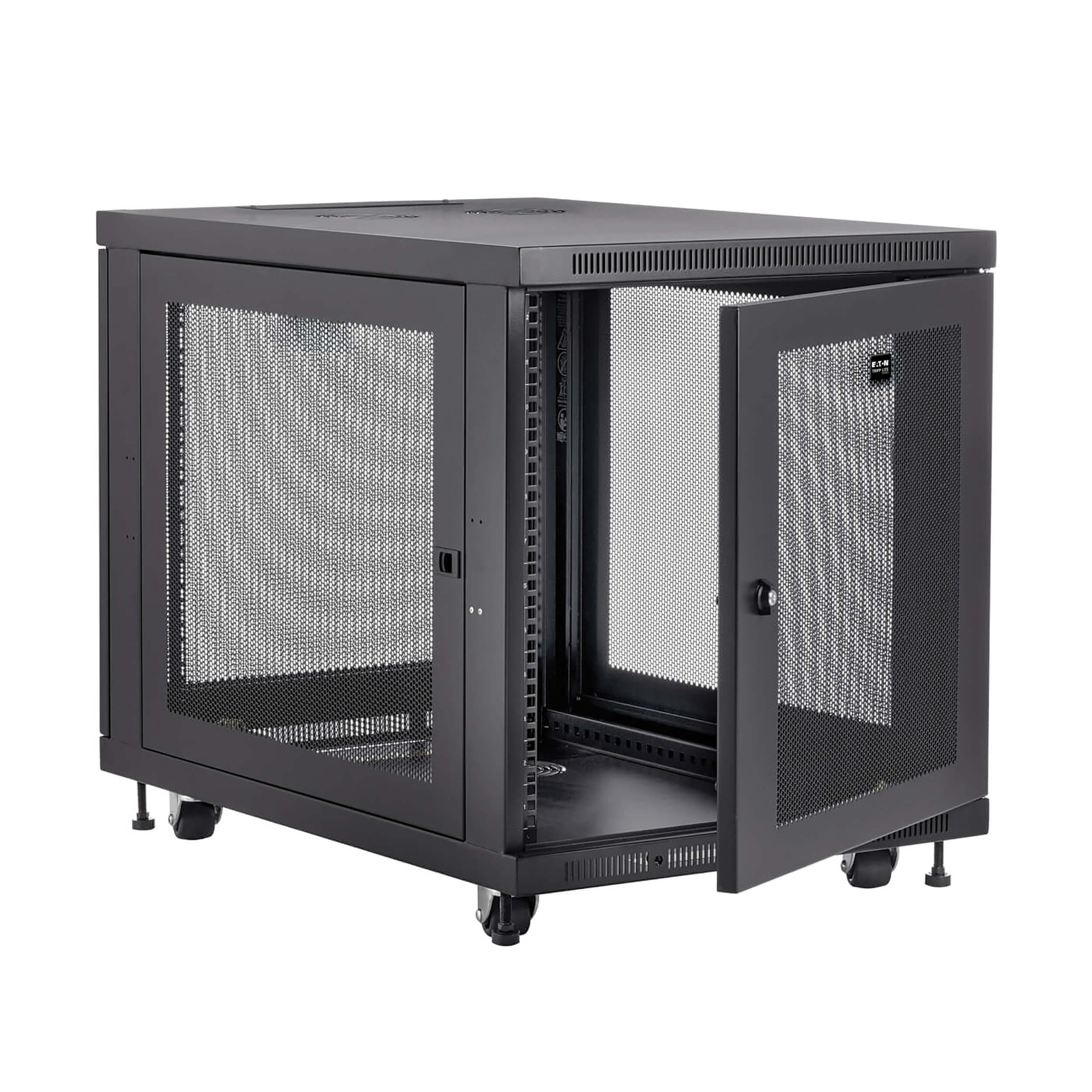

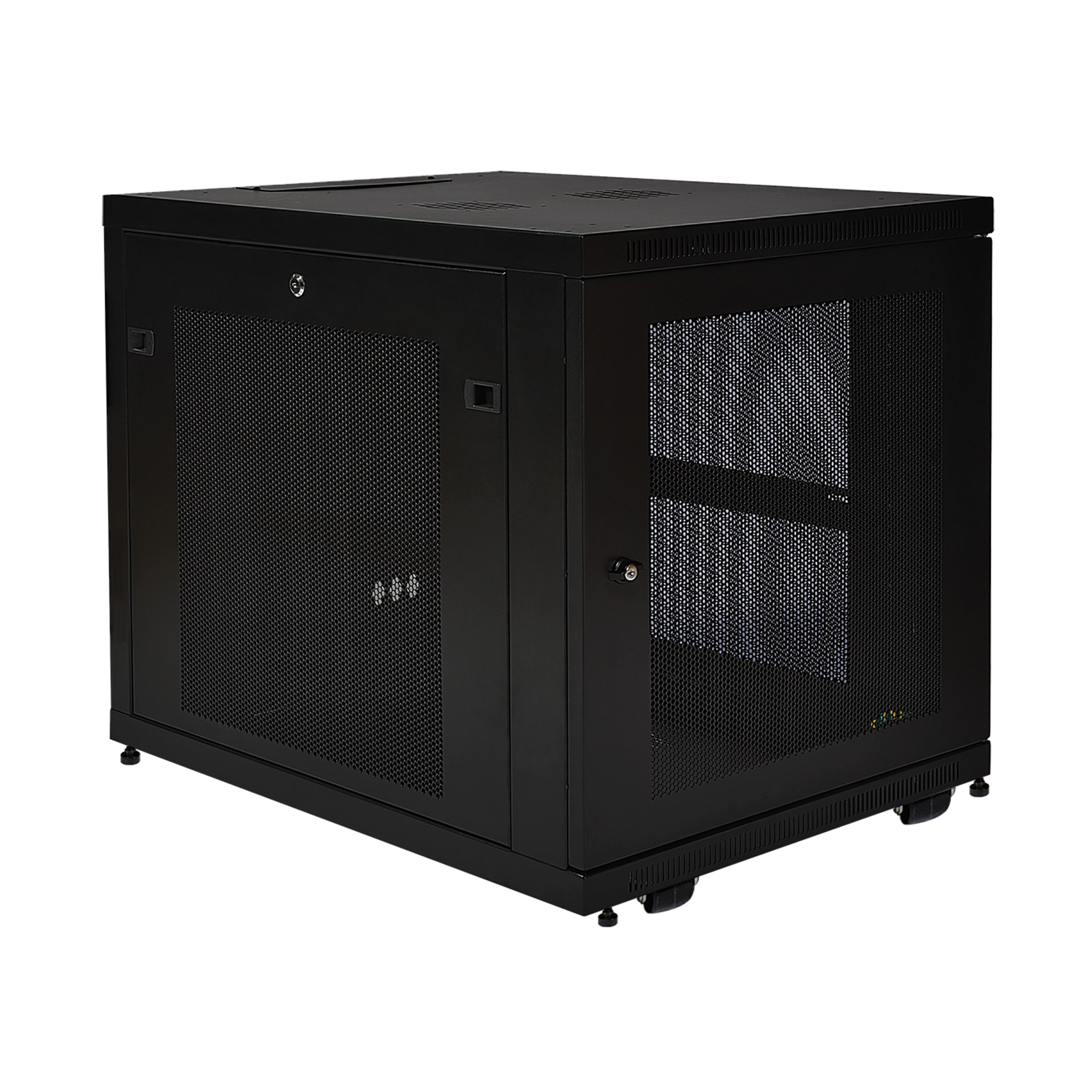

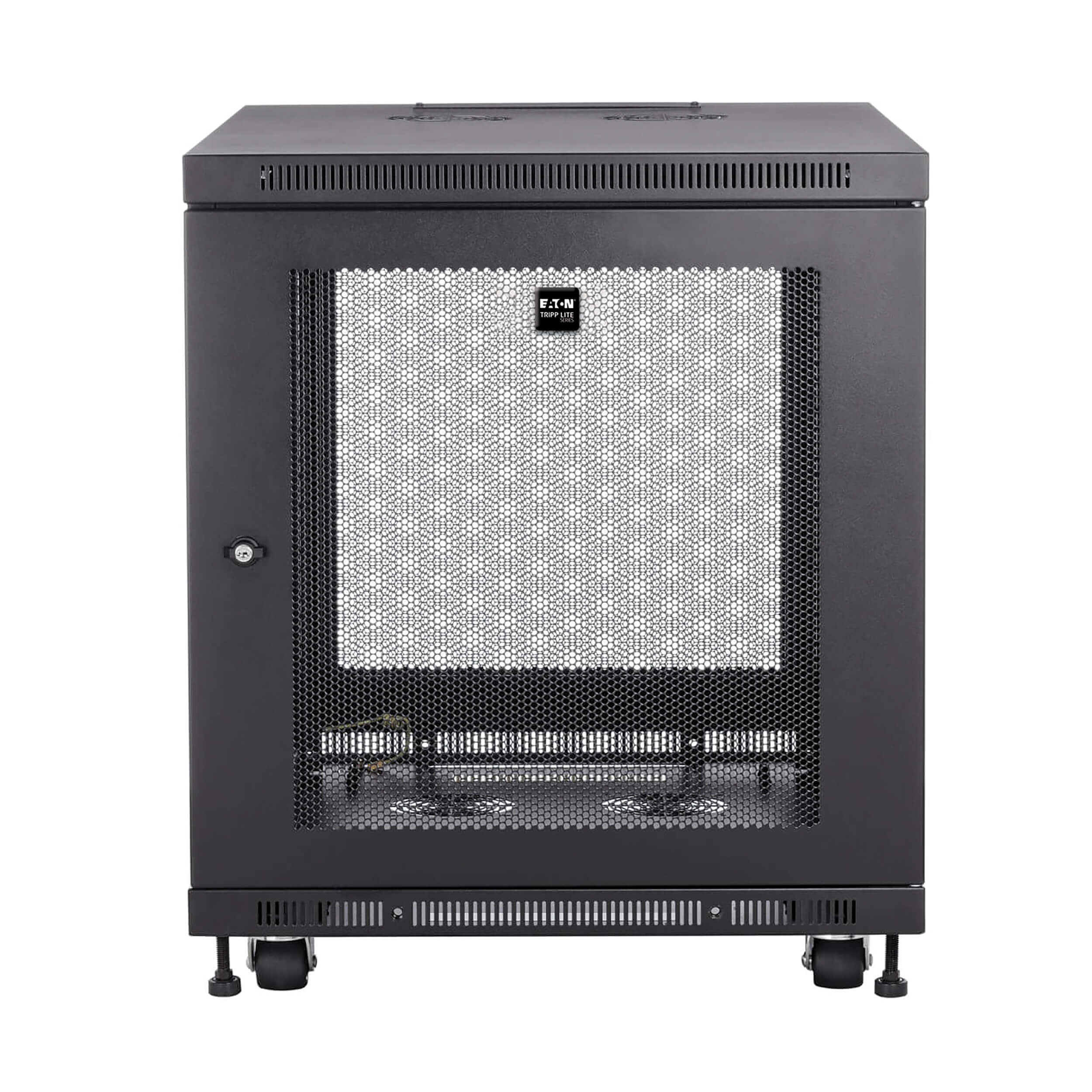

The Eaton SR12UB is a 12U floor-standing rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in server rooms, data centres, IT closets and edge sites. Its external footprint is 638 mm high, 600 mm wide and 851 mm deep, and it accepts rack devices from 76 mm up to 826 mm deep. Eaton rates the steel frame for 454 kg of static load and 454 kg while rolling.
Security is provided by locking reversible vented front door, locking reversible perforated rear door and locking removable side panels. The vertical mounting rails use square-hole (cage nut) mounting, with numbered rack spaces for quick installation.
It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
