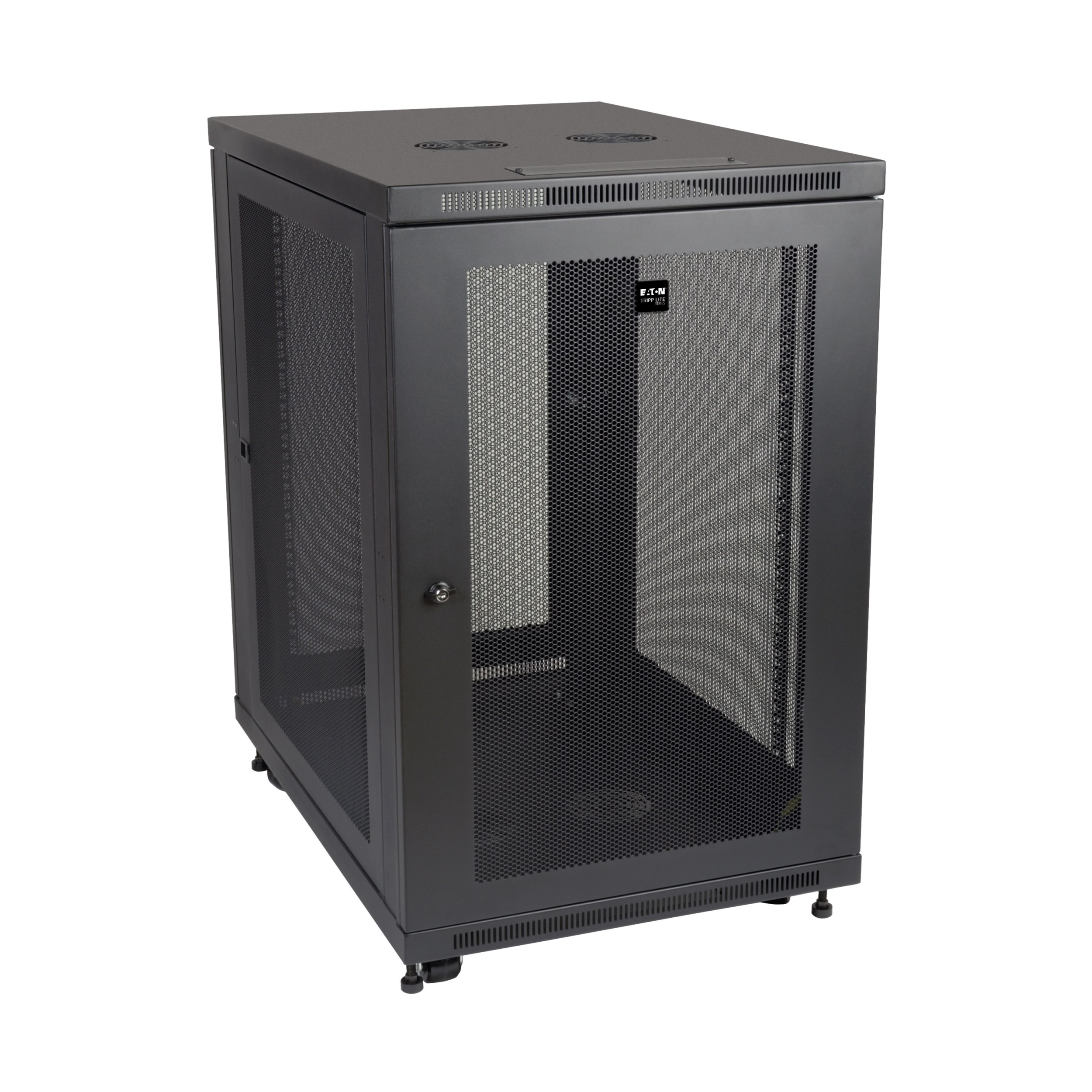

The Eaton SR18UB is a 18U floor-standing rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in server rooms, data centres, IT closets and edge sites. Its external footprint is 904 mm high, 600 mm wide and 851 mm deep, and it accepts rack devices from 76 mm up to 826 mm deep. Eaton rates the steel frame for 454 kg of static load and 454 kg while rolling.

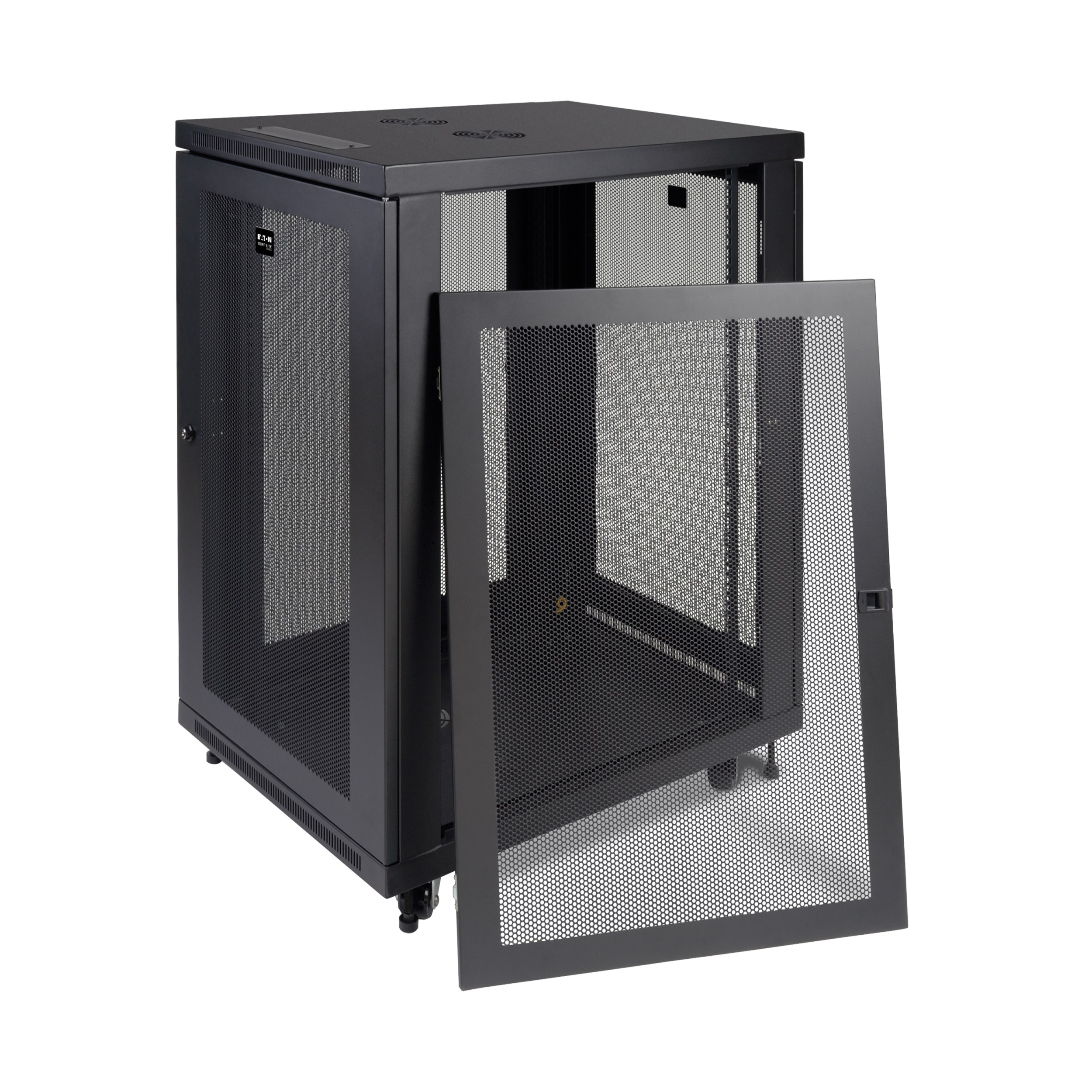

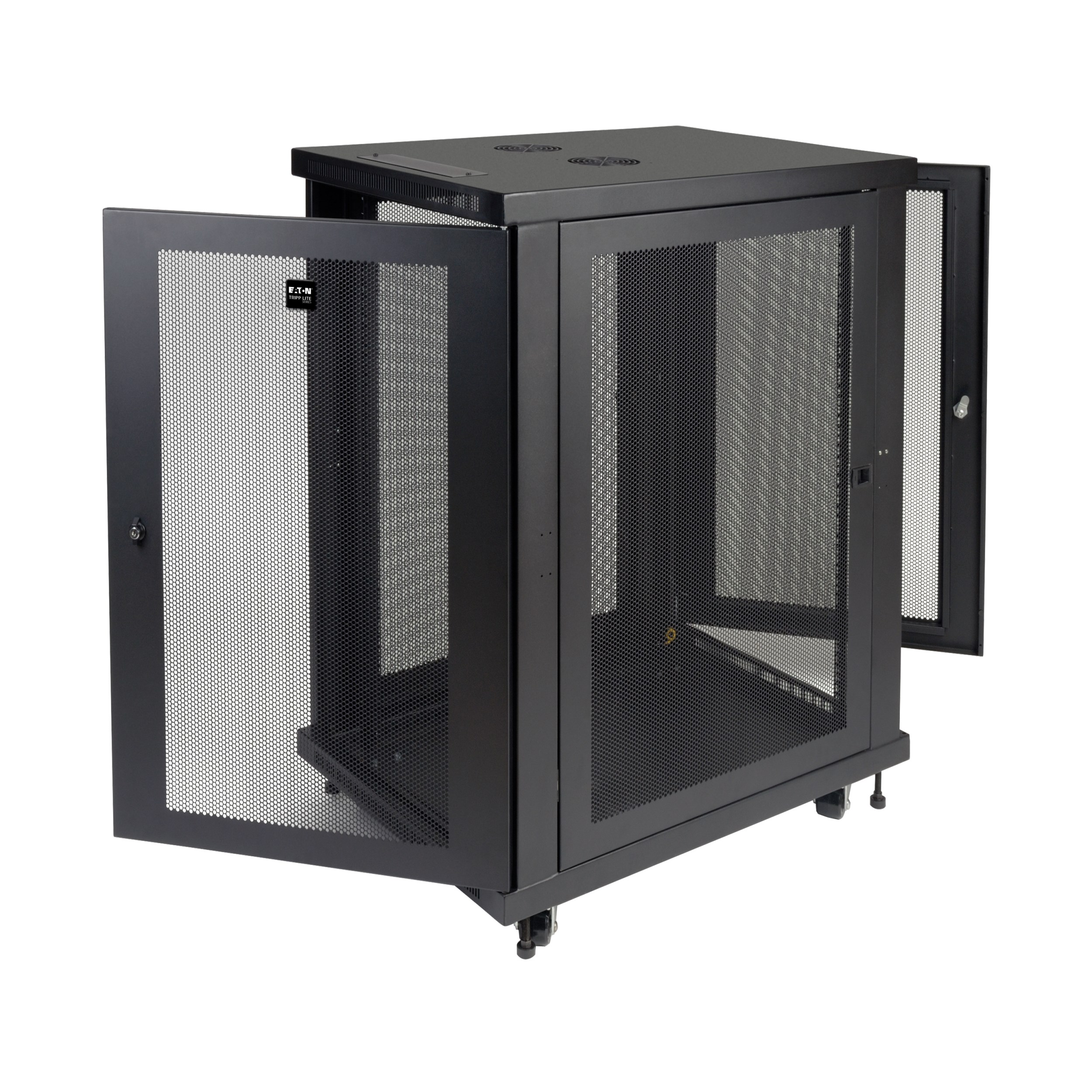

Security is provided by locking reversible perforated front door, locking reversible perforated rear door and locking removable side panels. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. The vertical mounting rails use square-hole (cage nut) mounting, with numbered rack spaces for quick installation.
Pre-installed removable casters let the cabinet be rolled into position, where adjustable levelers stabilise it on uneven floors. It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
