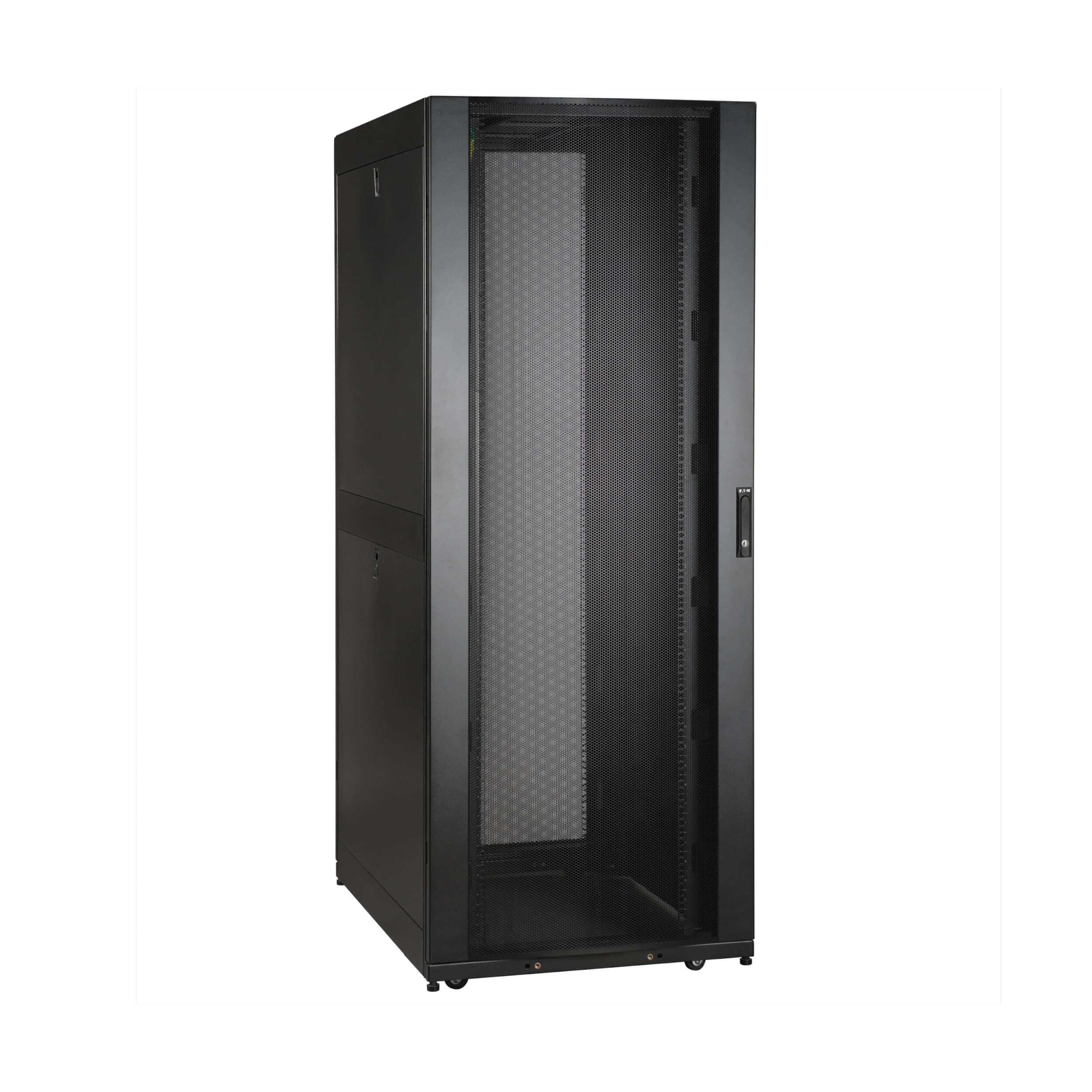

The Eaton SR42UBDPWD8 is a 42U floor-standing rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in server rooms, data centres, IT closets and edge sites. Its external footprint is 1994 mm high, 800 mm wide and 1201 mm deep, and it accepts rack devices from 102 mm up to 1118 mm deep. Eaton rates the steel frame for 1588 kg of static load and 1021 kg while rolling.

The 800 mm width leaves side channels beside the 19-inch rails for vertical cable management, PDUs and improved airflow, which suits dense networking and patching.

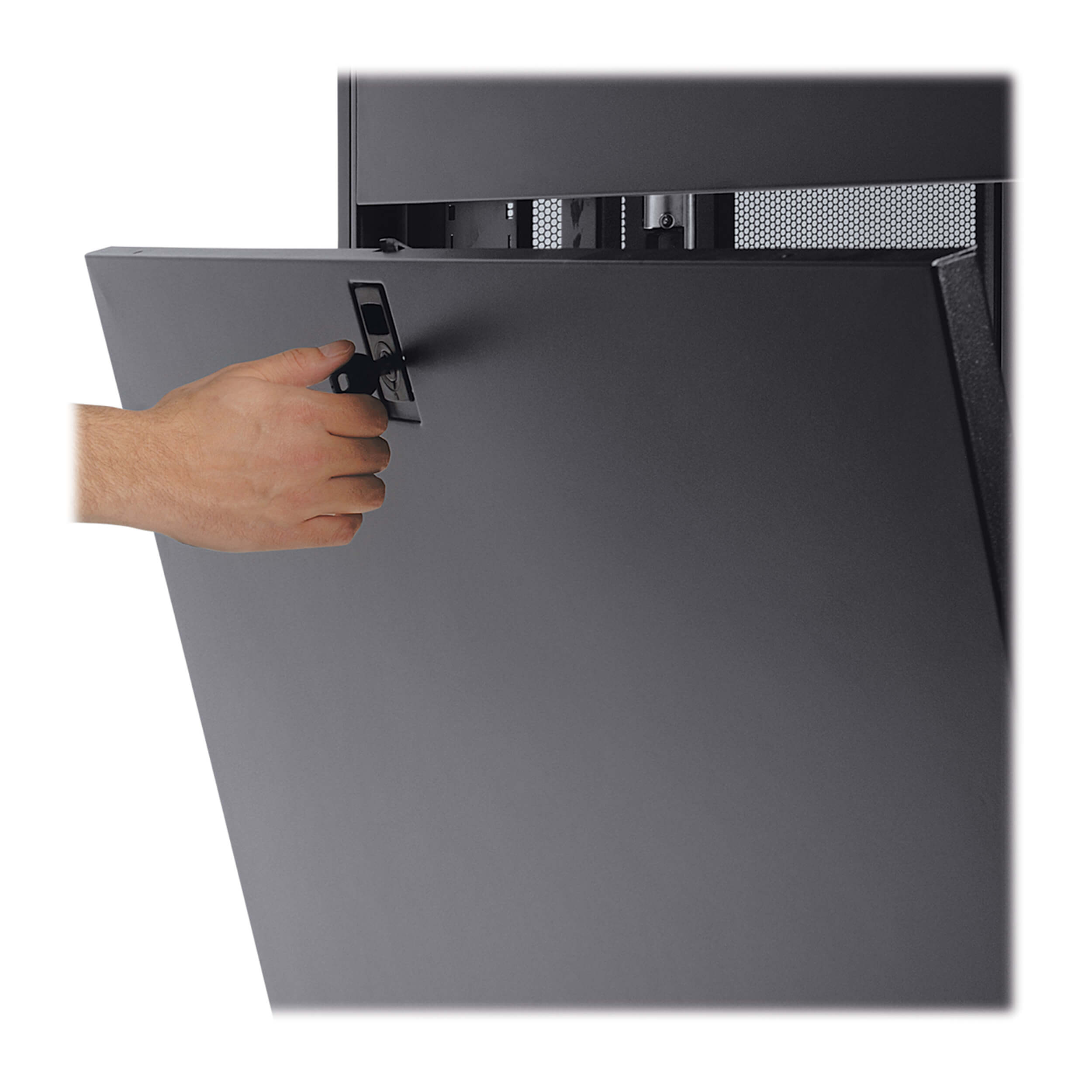

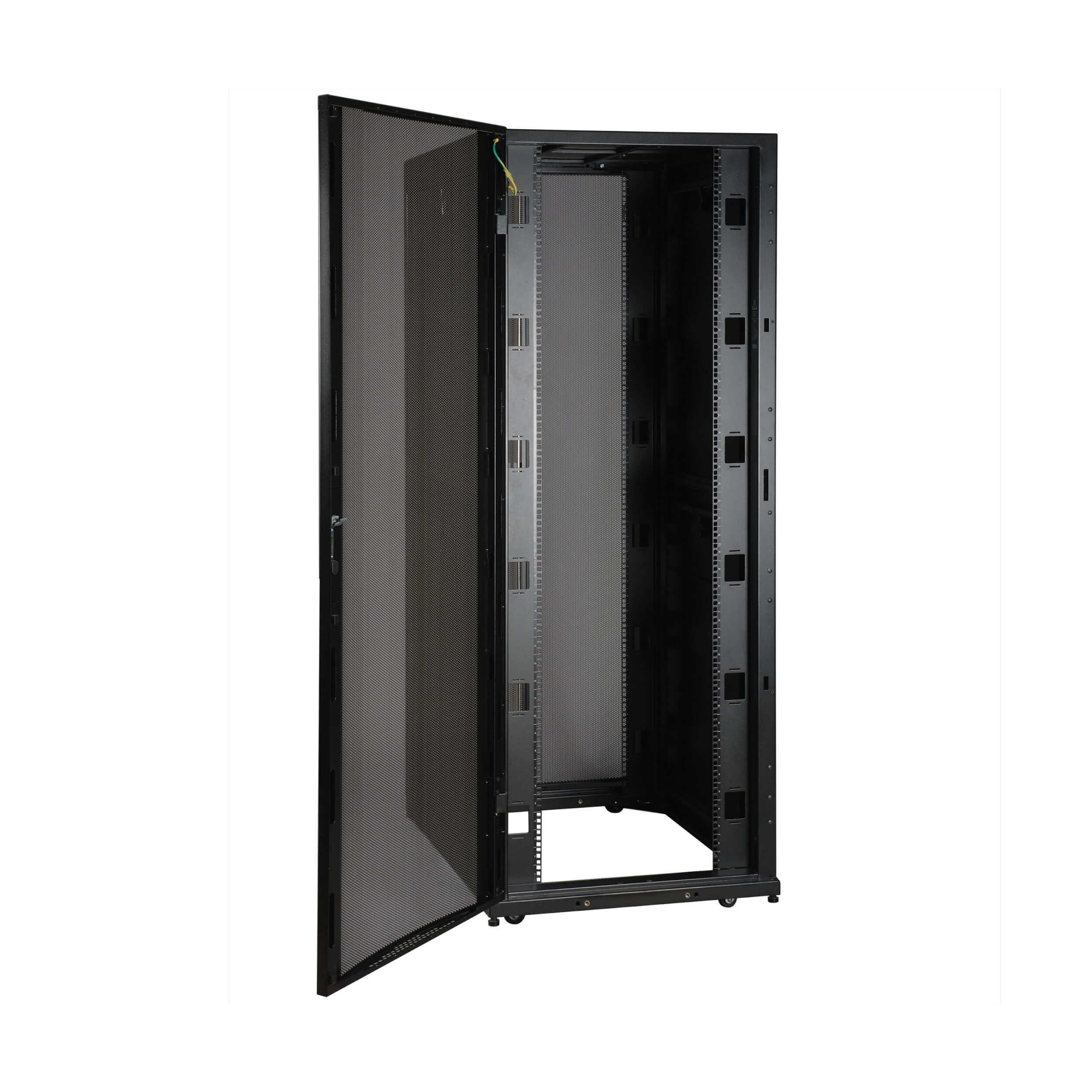

Security is provided by locking reversible perforated front door, locking reversible split perforated rear doors and locking removable half-size (split) side panels, 4 total. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. Toolless 0U mounting points accept vertical PDUs and cable managers without consuming rack units.

Pre-installed removable casters let the cabinet be rolled into position, where adjustable levelers stabilise it on uneven floors. Built-in baying brackets allow several SmartRack cabinets to be joined into a row on 600 mm / 24 in. centres. It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
