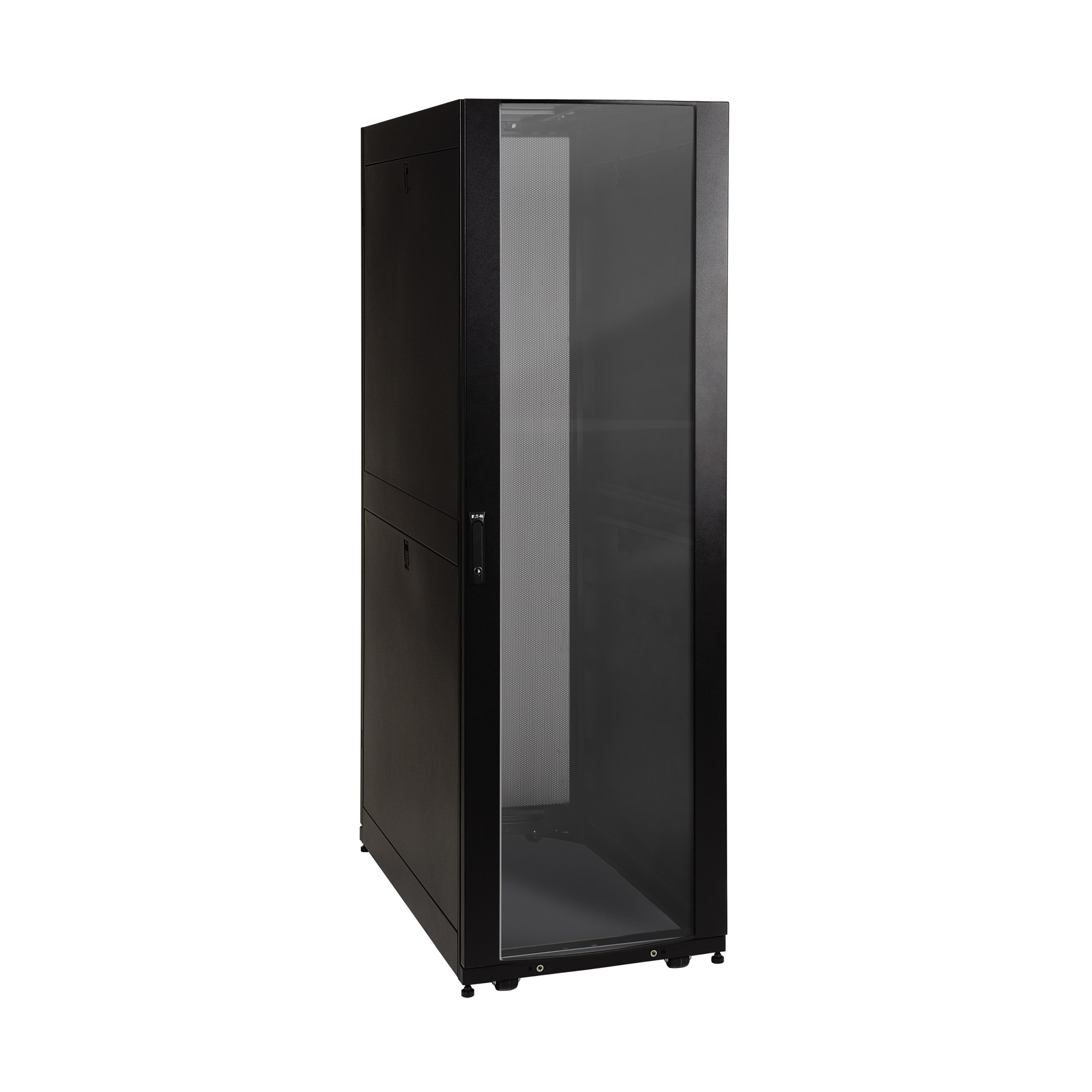

The Eaton SR42UBG is a 42U floor-standing rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in server rooms, data centres, IT closets and edge sites. Its external footprint is 1994 mm high, 600 mm wide and 1092 mm deep, and it accepts rack devices from 102 mm up to 940 mm deep. Eaton rates the steel frame for 1588 kg of static load and 1021 kg while rolling.

A clear acrylic window in the front door lets staff check status LEDs and displays without unlocking the cabinet.

Security is provided by locking front door with clear acrylic window, locking reversible split perforated rear doors and locking removable side panels. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. The vertical mounting rails adjust in 1/4 in. increments and use square-hole (cage nut) mounting, with numbered rack spaces for quick installation. Toolless 0U mounting points accept vertical PDUs and cable managers without consuming rack units.

Pre-installed removable casters let the cabinet be rolled into position, where adjustable levelers stabilise it on uneven floors. Eaton backs the product with a 5-year limited warranty.
