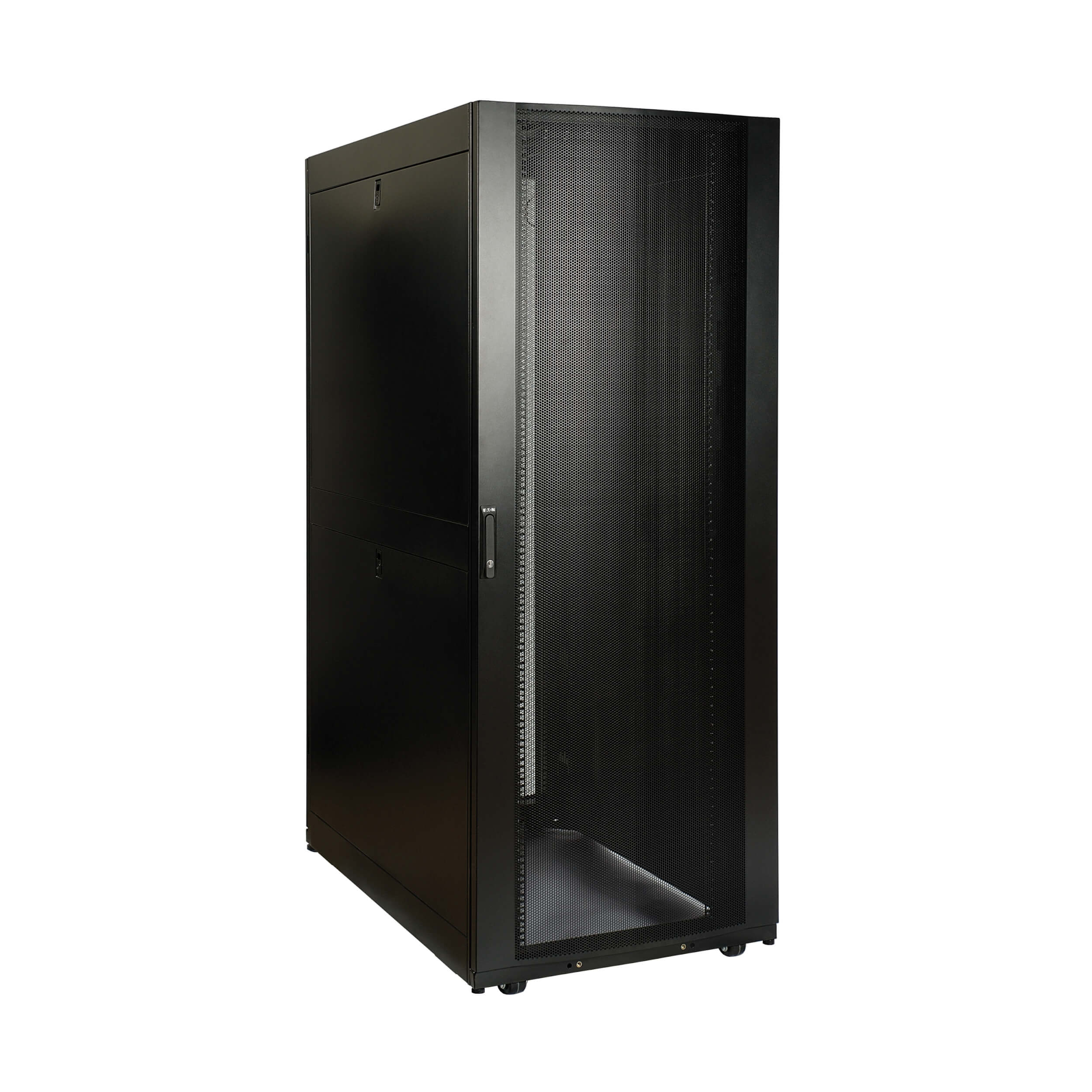

The Eaton SR45UBDPWD is a 45U floor-standing rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in server rooms, data centres, IT closets and edge sites. Its external footprint is 2127 mm high, 750 mm wide and 1232 mm deep, and it accepts rack devices from 102 mm up to 1067 mm deep. Eaton rates the steel frame for 1588 kg of static load and 1021 kg while rolling.

The 750 mm width provides extra room at the sides for cable routing and accessories compared with standard 600 mm cabinets.

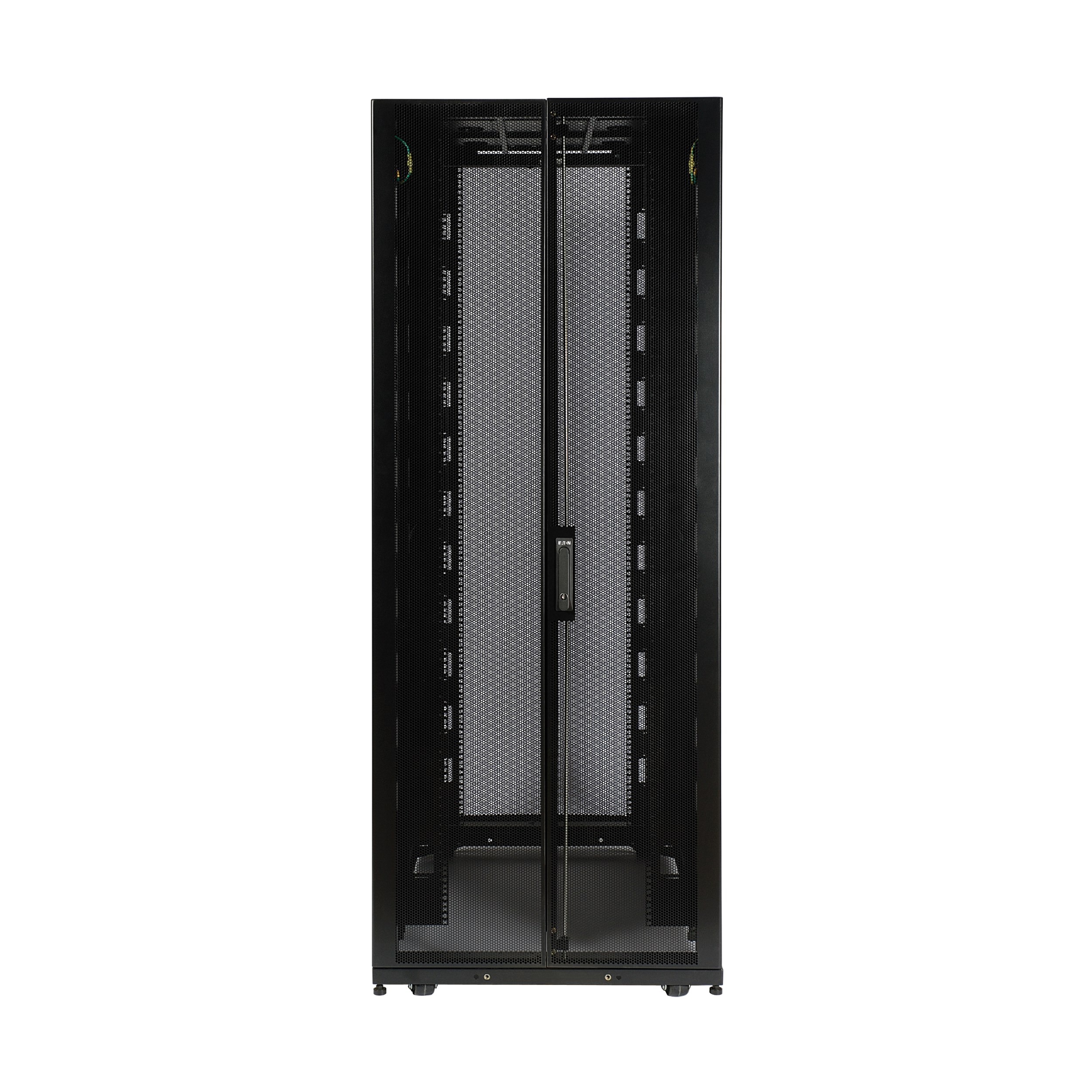

Security is provided by locking, reversible, removable perforated front door (65%+ open area), locking reversible split perforated rear doors and locking removable half-size (split) side panels, 4 total. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. Toolless 0U mounting points accept vertical PDUs and cable managers without consuming rack units.

Pre-installed removable casters let the cabinet be rolled into position, where adjustable levelers stabilise it on uneven floors. Built-in baying brackets allow several SmartRack cabinets to be joined into a row on 600 mm / 24 in. centres. It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
