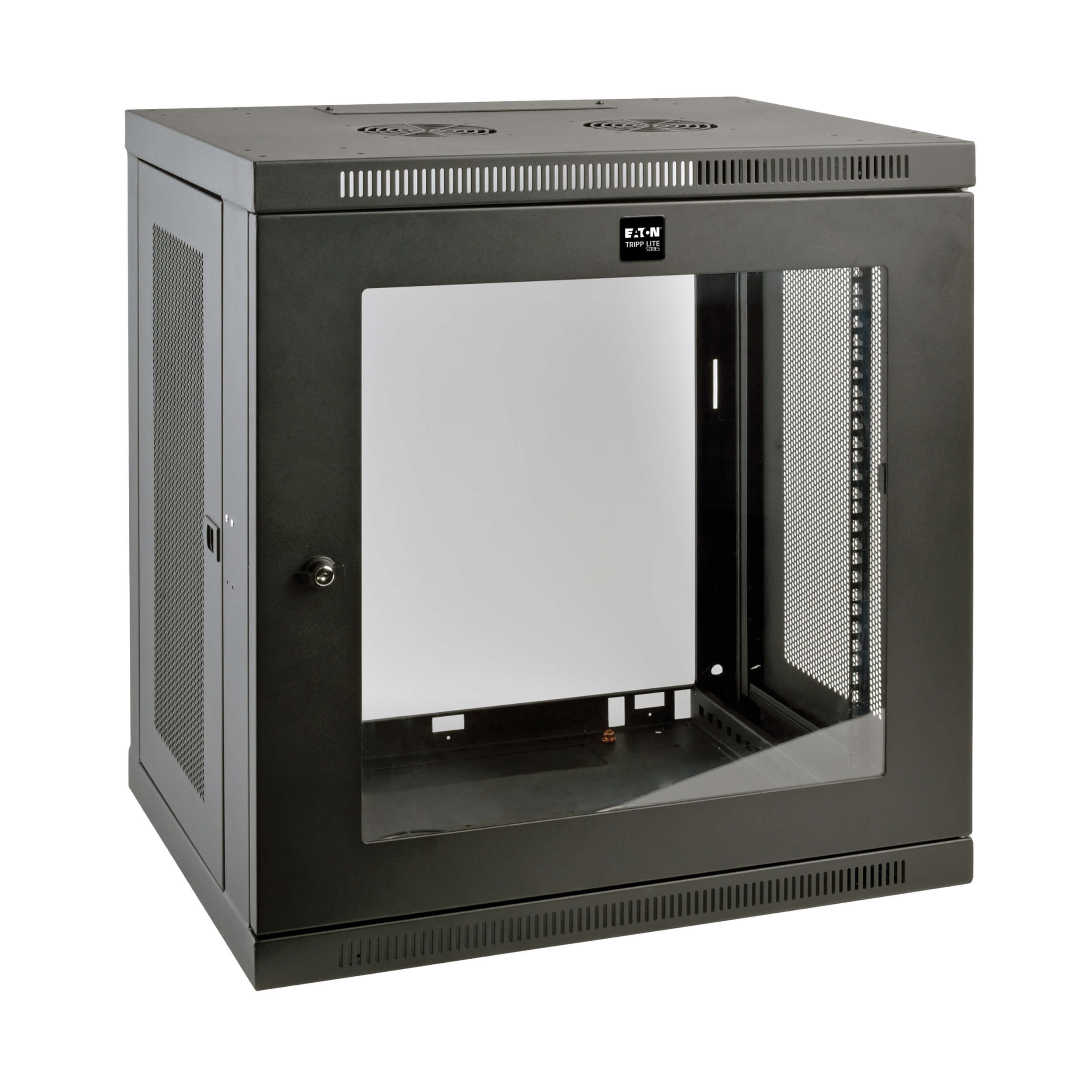

The Eaton SRW12UG is a 12U wall-mount rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in wiring closets, retail branches, classrooms and back offices with little floor space. Its external footprint is 631 mm high, 600 mm wide and 449 mm deep, and it accepts rack devices from 76 mm up to 419 mm deep. Eaton rates the steel frame for 91 kg of static load.
A clear acrylic window in the front door lets staff check status LEDs and displays without unlocking the cabinet.

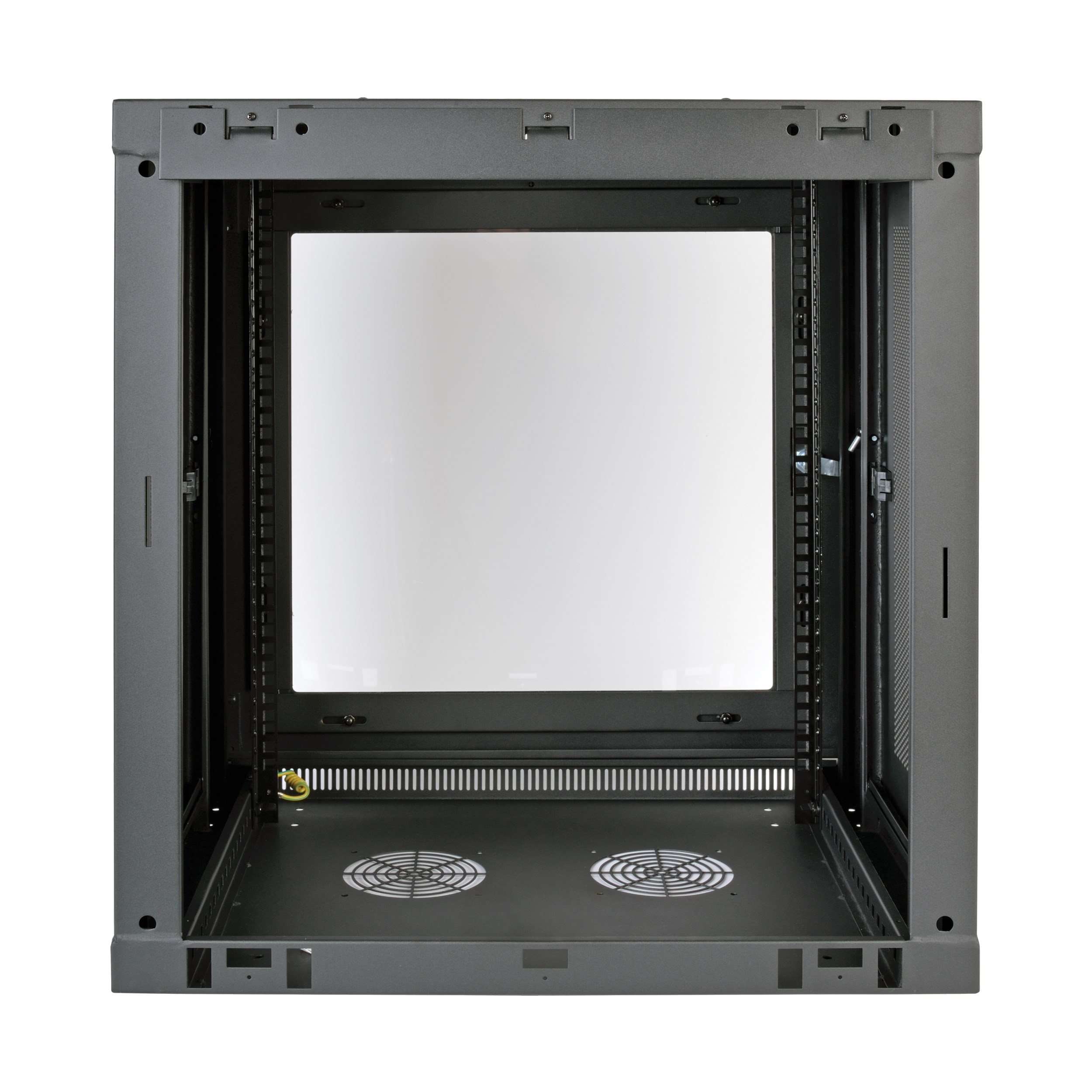

Security is provided by locking front door with clear acrylic window and removable locking vented side panels. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. The vertical mounting rails adjust in 7/8 in. increments and use square-hole or 12-24 threaded mounting, with numbered rack spaces for quick installation.

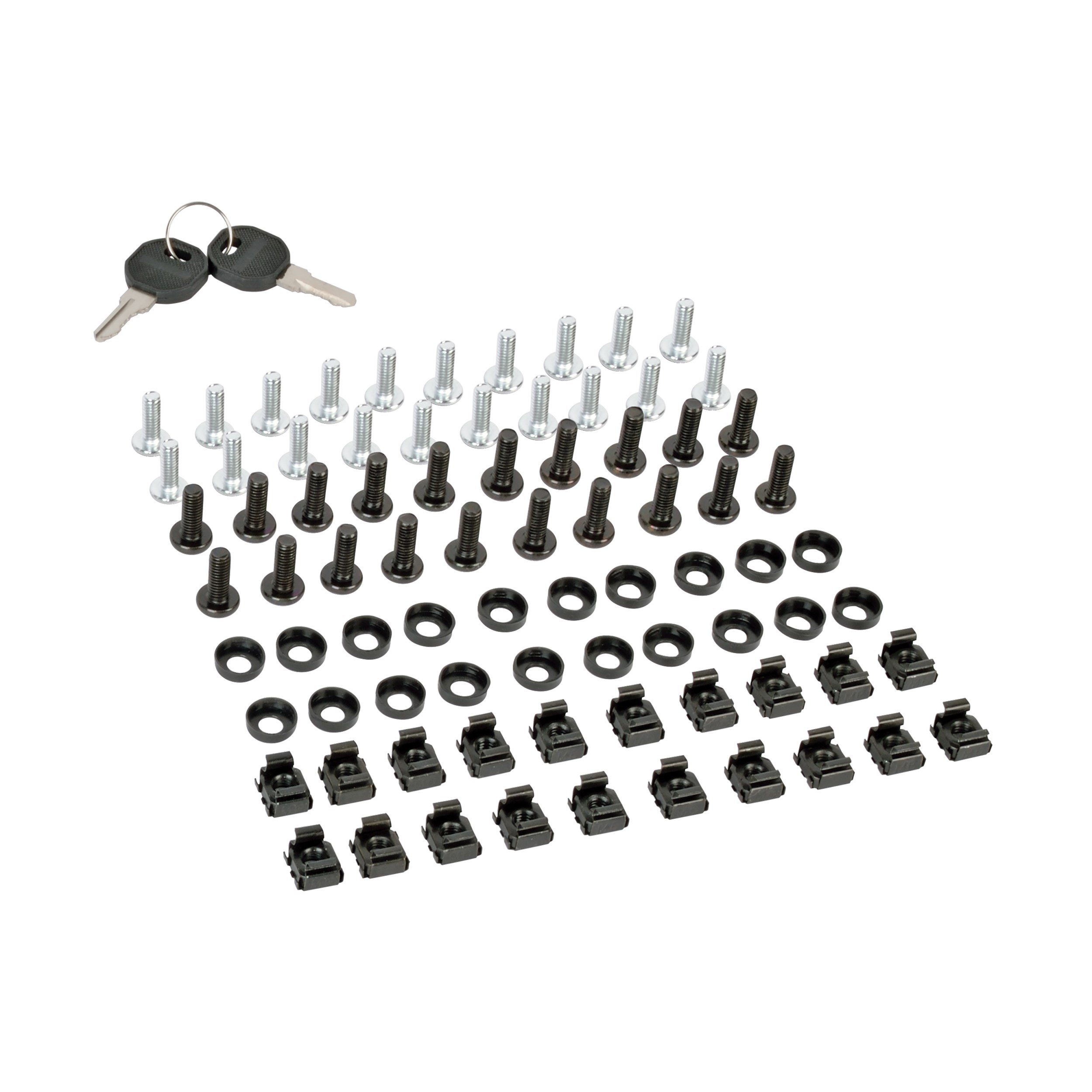

It can be wall-mounted with the included hardware or turned into a mobile rack with the optional SRCASTER caster kit. It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
