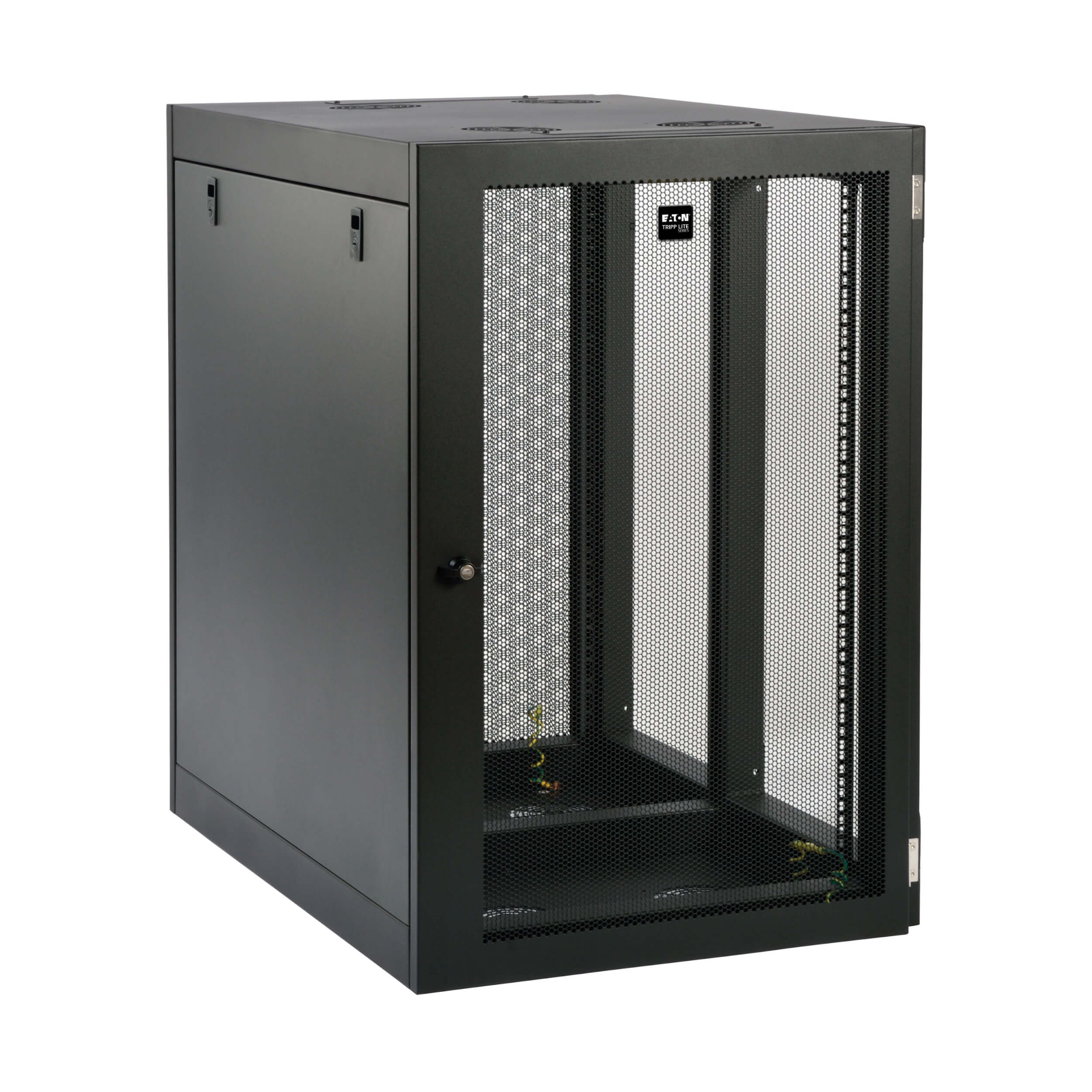

The Eaton SRW18UHD is a 18U wall-mount rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in wiring closets, retail branches, classrooms and back offices with little floor space. Its external footprint is 939 mm high, 920 mm wide and 629 mm deep, and it accepts rack devices from 76 mm up to 826 mm deep. Eaton rates the steel frame for 227 kg of static load.

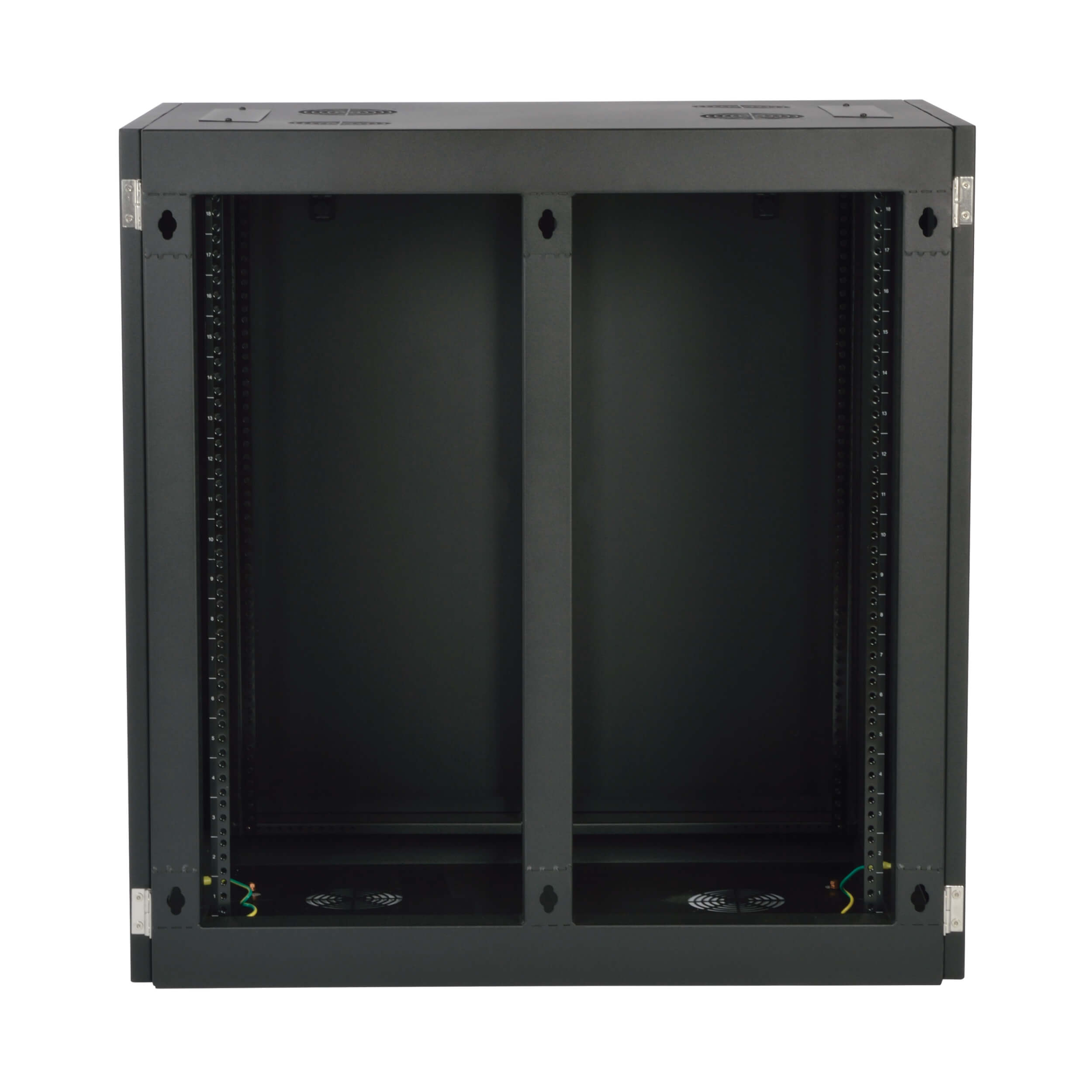

The 800 mm width leaves side channels beside the 19-inch rails for vertical cable management, PDUs and improved airflow, which suits dense networking and patching. Equipment mounts sideways, keeping the cabinet low-profile on the wall while still accommodating server-depth devices up to 826 mm deep.

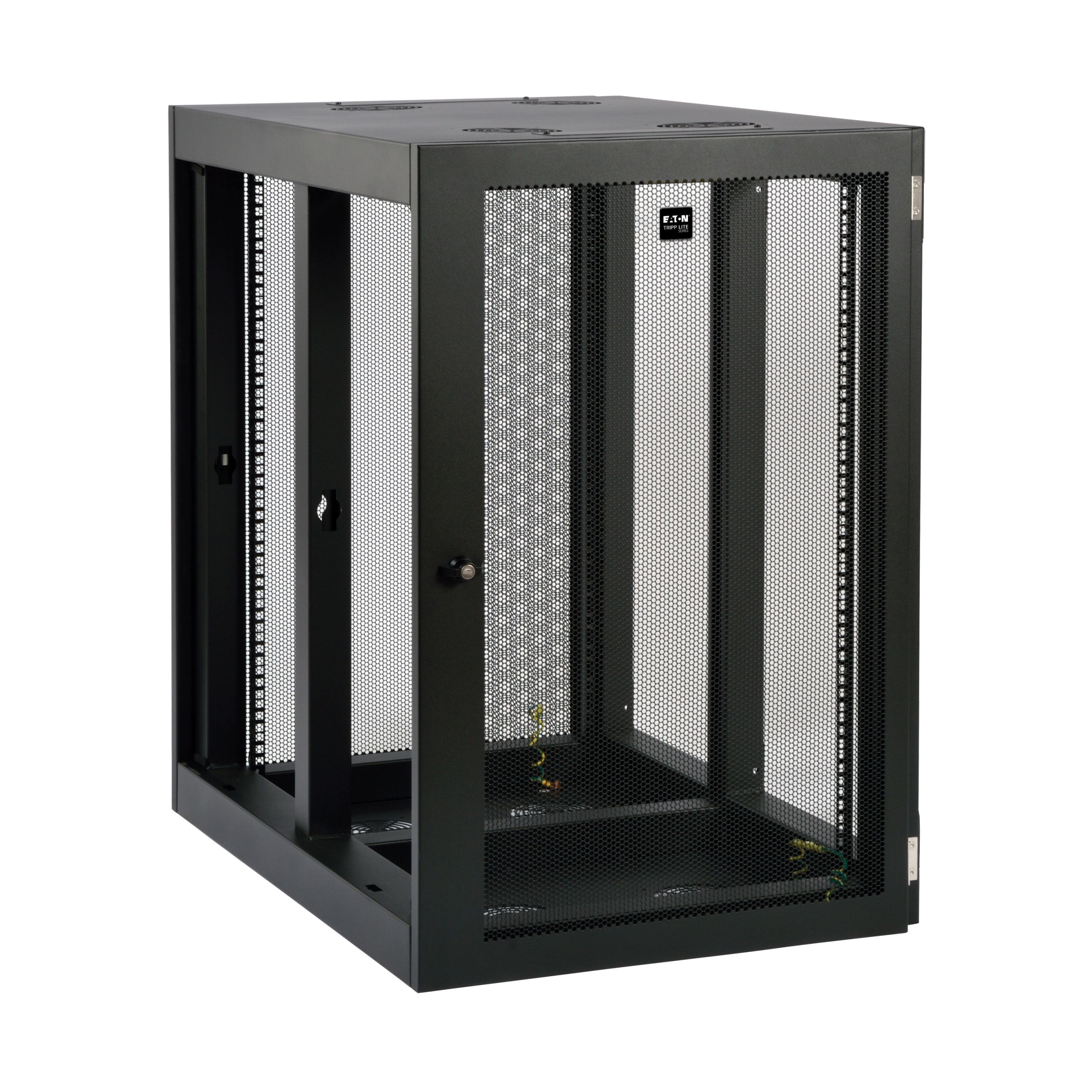

Security is provided by locking removable front panel, side doors (lockable) and locking side doors. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. The vertical mounting rails adjust in 7/8 in. increments and use square-hole or 12-24 threaded mounting, with numbered rack spaces for quick installation.

It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
