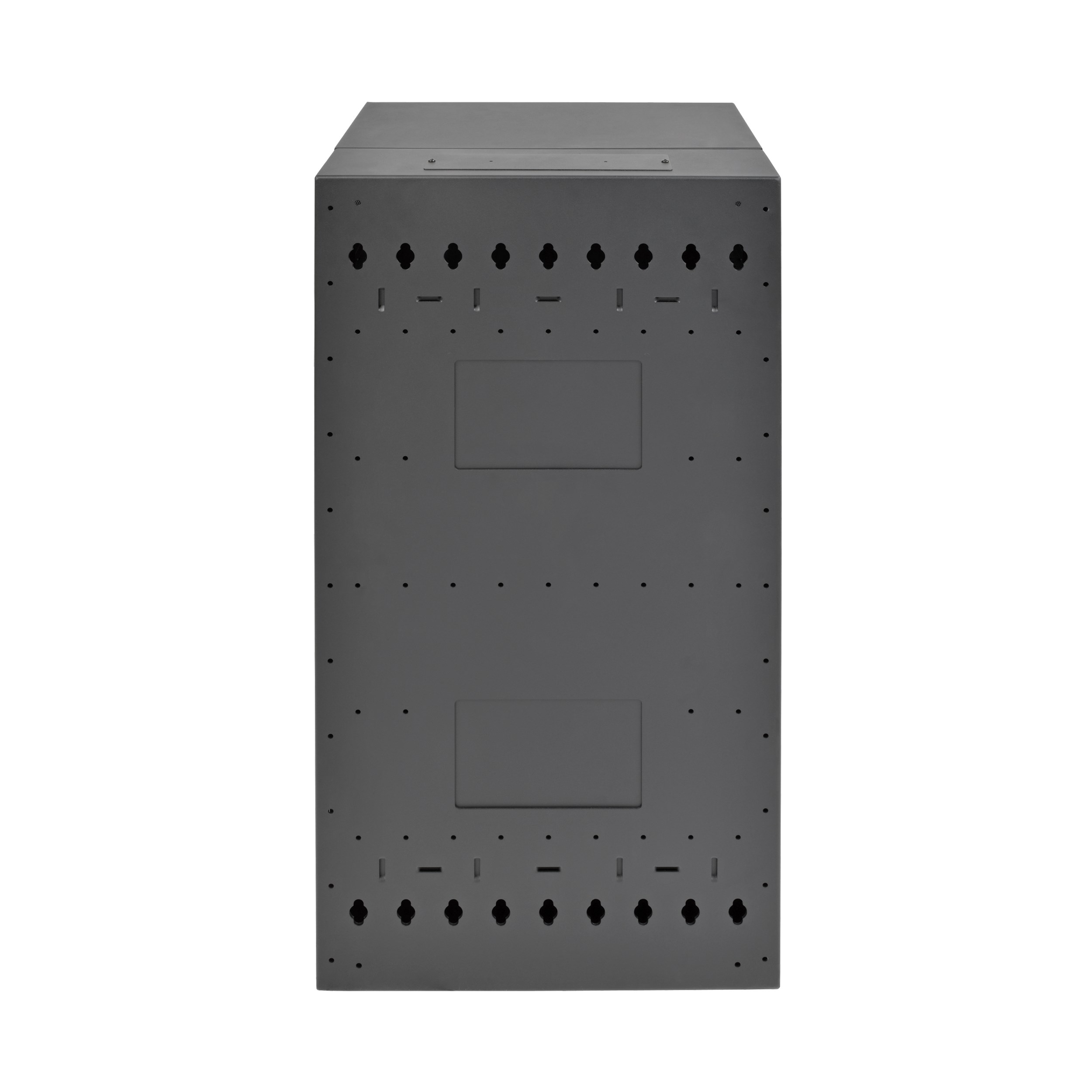

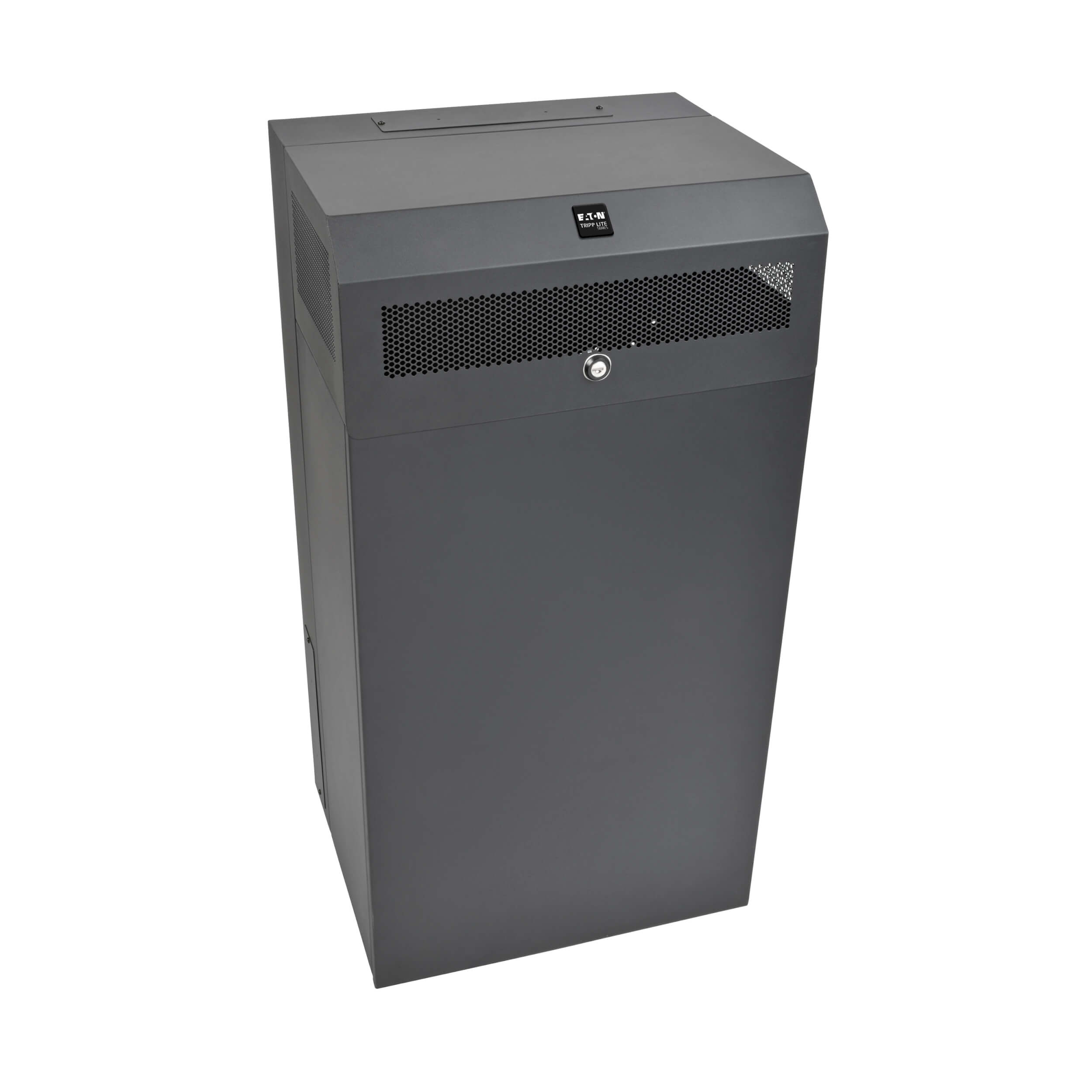

The Eaton SRWF12U38 is a 12U wall-mount rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in wiring closets, retail branches, classrooms and back offices with little floor space. Its external footprint is 965 mm high, 500 mm wide and 410 mm deep, and it accepts rack devices up to 889 mm deep. Eaton rates the steel frame for 181 kg of static load.

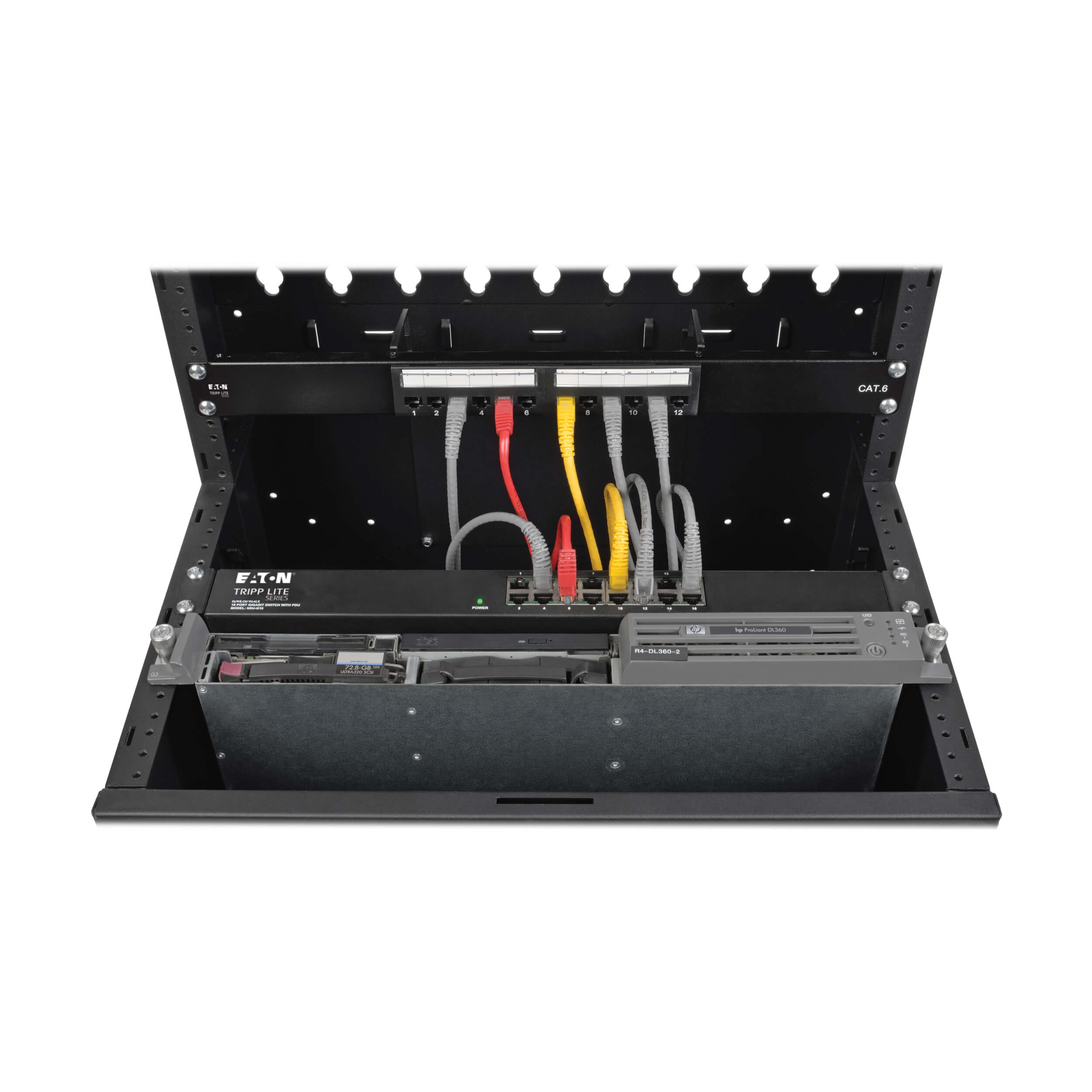

Equipment mounts vertically, so the cabinet projects only about 410 mm from the wall while still housing devices up to 889 mm deep, such as 1U servers, UPS units and switches.
Security is provided by locking reversible vented front door and fixed vented enclosure body; locking top panel. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data.
It ships flat for easy assembly with the supplied hardware. Eaton backs the product with a 5-year limited warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
