The Eaton SRWF4U36 is a 4U wall-mount rack from the Tripp Lite Series SmartRack family, built to hold EIA-310 19-inch equipment in wiring closets, retail branches, classrooms and back offices with little floor space. Its external footprint is 1092 mm high, 650 mm wide and 203 mm deep, and it accepts rack devices up to 914 mm deep. Eaton rates the steel frame for 68 kg of static load.

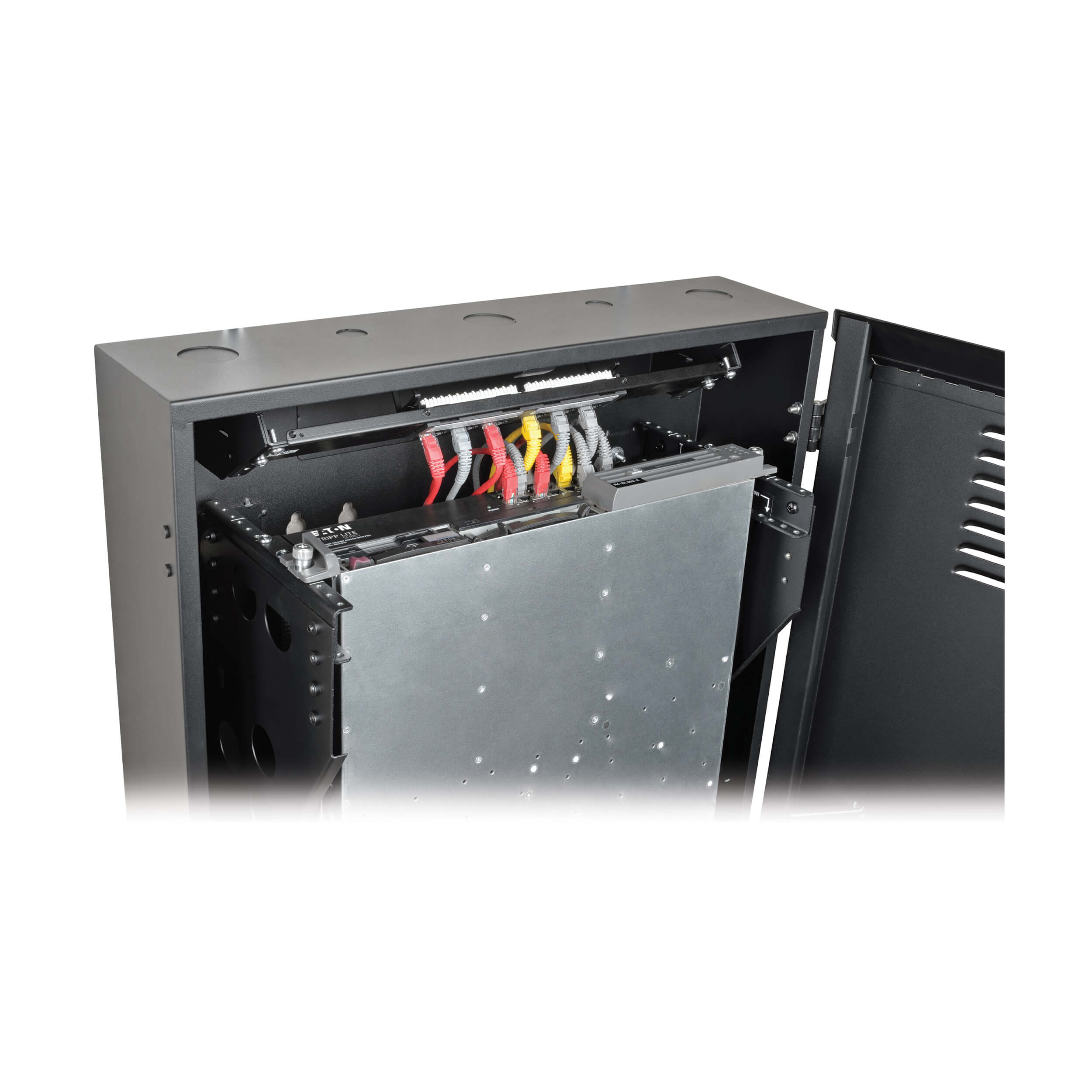

Equipment mounts vertically, so the cabinet projects only about 203 mm from the wall while still housing devices up to 914 mm deep, such as 1U servers, UPS units and switches.

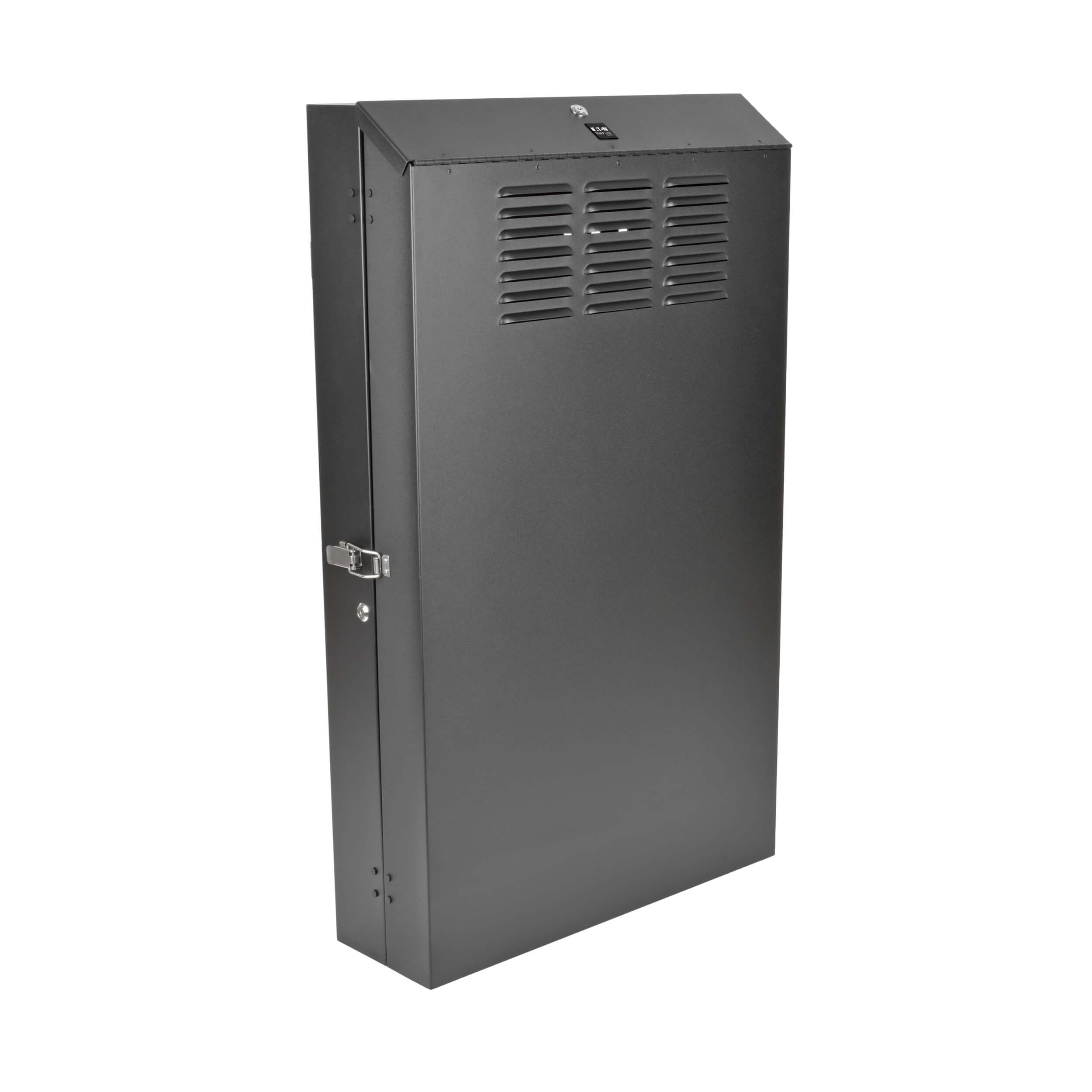

Security is provided by locking reversible vented front door and fixed vented enclosure body; locking top panel. The enclosure meets the physical-security requirements of PCI DSS for equipment handling payment card data. The vertical mounting rails use threaded M6 / 12-24 mounting, with numbered rack spaces for quick installation.
It ships fully assembled for fast deployment. Eaton backs the product with a 5-year limited warranty.
Key features
