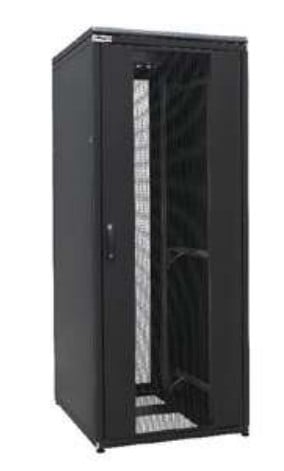

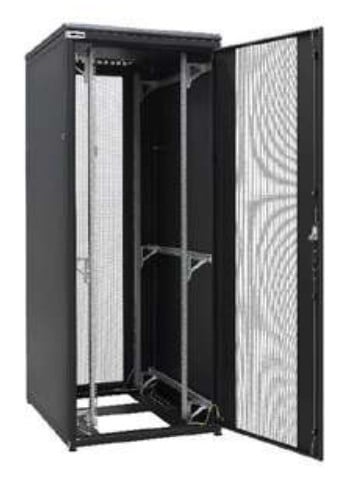

The FIBRAIN SSRS-42-8/12-S04-B is a 42U floor-standing server cabinet from the FIBRAIN DATA range, 800 mm wide and 1200 mm deep, finished in black RAL 9005 and fitted with perforated steel front and rear doors for front-to-back airflow through densely populated server and storage equipment.
The cabinet is built on an expandable configuration system with multiple door, side panel and roof options, an easy coding system for quick configuration and the option to join cabinets in a row. Airflow can be controlled by selecting suitable doors, side panels and fan units, and optional cable entries are available. The frame, side panels, mounting profiles and C-profiles are made of sheet steel, with Al-Zn coated mounting profiles and zamak outriggers.
Load capacity depends on the base: according to the FIBRAIN DATA catalogue the cabinet carries up to 1500 kg on levelling feet or a plinth and 500 kg on type-300 castors, provided the maximum distance between mounting profiles is maintained and the jam nuts are tightened to the bottom plate. A wide range of accessories, including shelves, drawers, fan units, power strips and blanking plates, completes the system.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
