The Intellinet Basic Line wall-mount cabinet is a cost-effective 19-inch enclosure for protecting and securing network equipment in offices, shops and technical rooms. The housing is made of cold-rolled, galvanized SPCC steel up to 1.2 mm thick and achieves an IP20 protection grade, while the tempered-glass front door is reversible so it can open to either side in tight spaces.

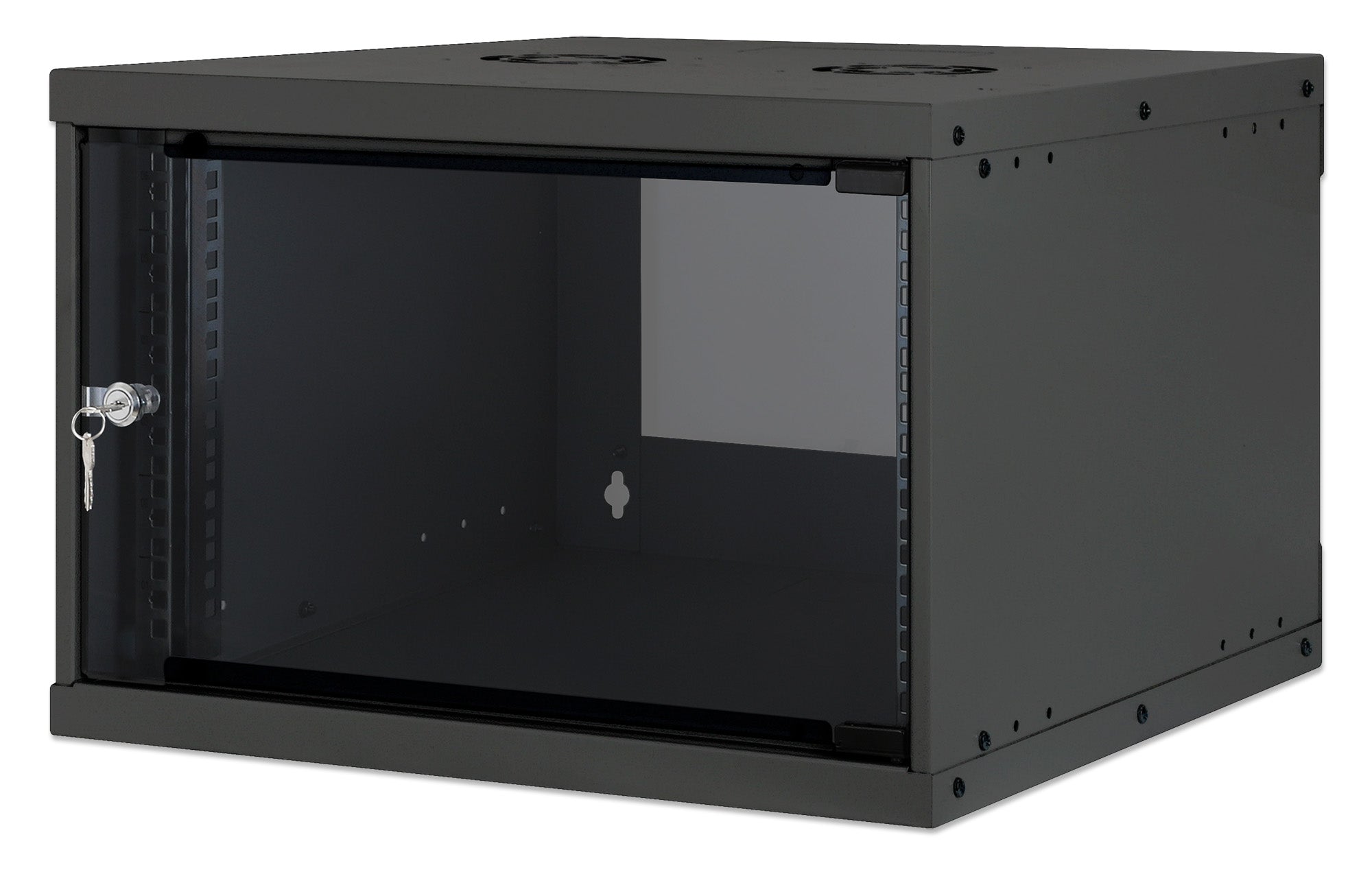

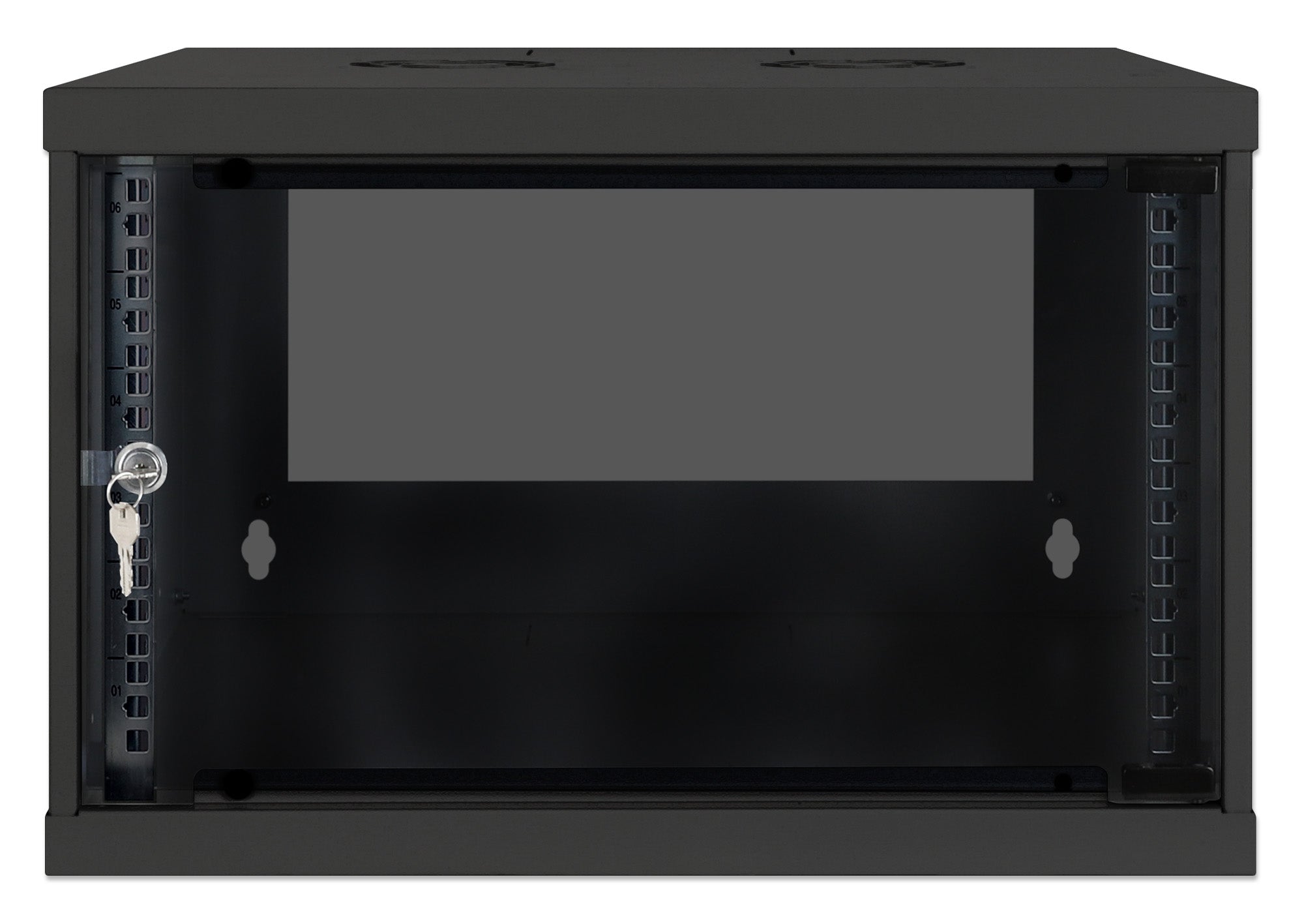

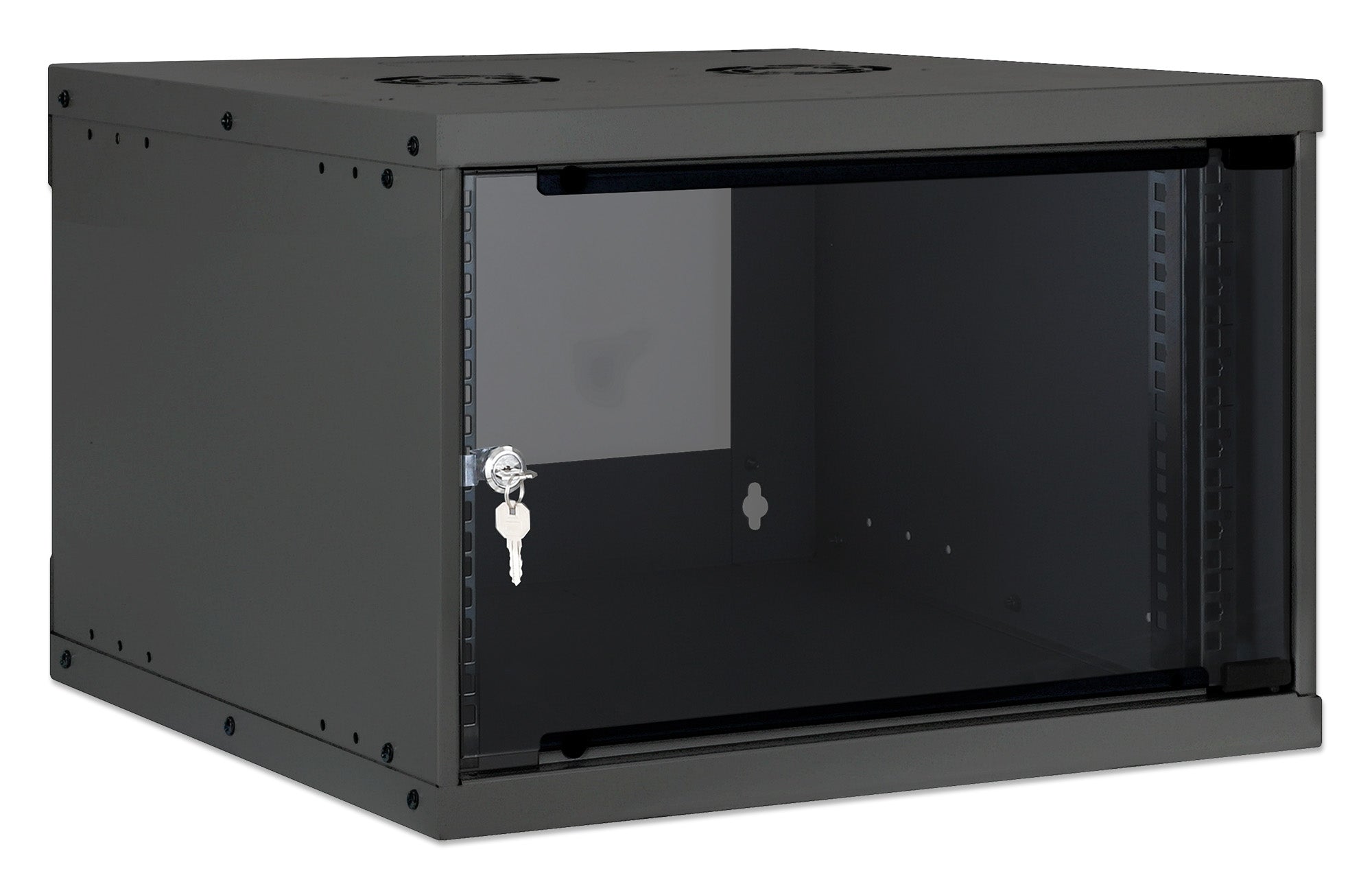

Model 714143 is a 6U wall-mount network cabinet measuring 354 × 540 × 400 mm (H × W × D), finished in Black RAL9005. Usable installation depth is 340 mm. Maximum static load is 50 kg. The front door is tempered glass and the cabinet is delivered flat-packed.
Basic Line cabinets ship flat-packed to save freight and storage space, and comply with ANSI/EIA RS-310-D, IEC 60297-2 and DIN 41494 parts 1 and 7, so any standard 19-inch patch panel, switch or shelf can be installed. Intellinet backs the product with a three-year warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
