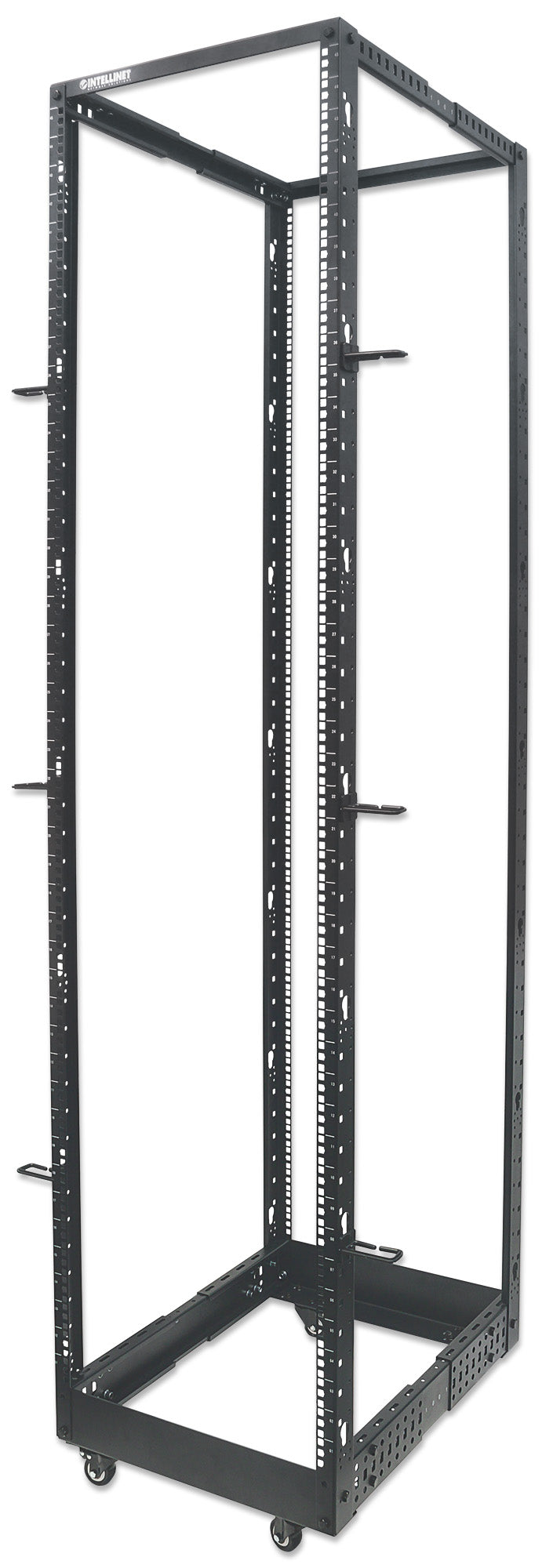

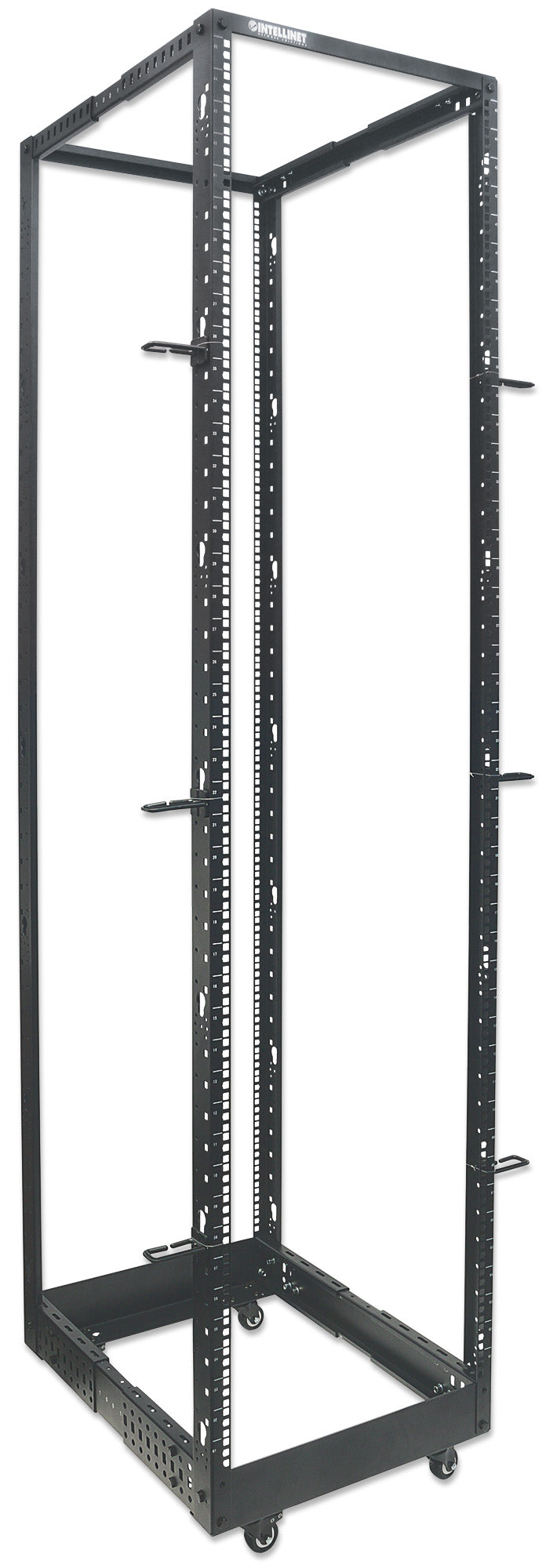

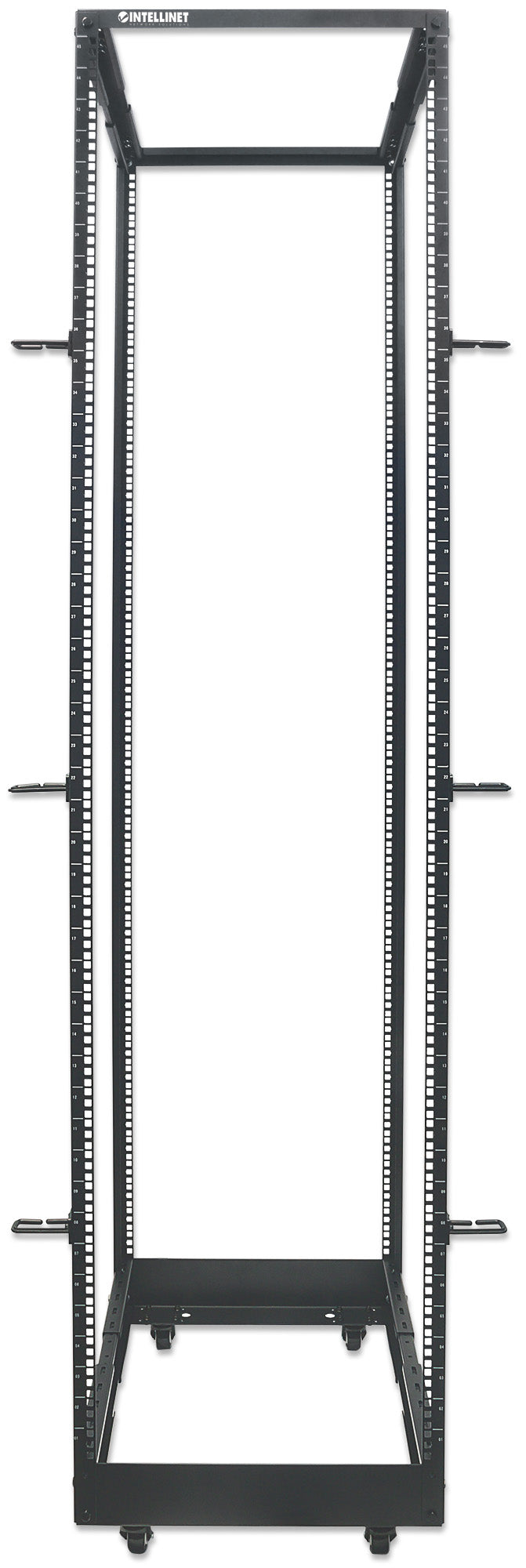

The Intellinet 4-post open frame rack is a sturdy, low-cost alternative to an enclosed cabinet for large rackmount equipment. Made from 2.0 mm steel, it offers the strength and stability needed for servers, telecom gear and network hardware while keeping equipment and cabling fully accessible from all sides.
Model 714259 is a 45U floor-standing 4-post open frame rack; its footprint is 515 mm wide and 568 mm deep (minimum depth setting) and it stands 2140 mm tall, finished in Black RAL9005. Maximum static load is 360 kg (300 kg on castors).
Mounting depth is adjustable from 559 to 1016 mm (22–40 in.) in 1-inch steps, so the rack can be matched to shallow network gear or deep servers. It can stand on the supplied castors or levelling feet, or be bolted to the floor, and ships flat-packed with cable-management hooks. Intellinet backs the product with a three-year warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
