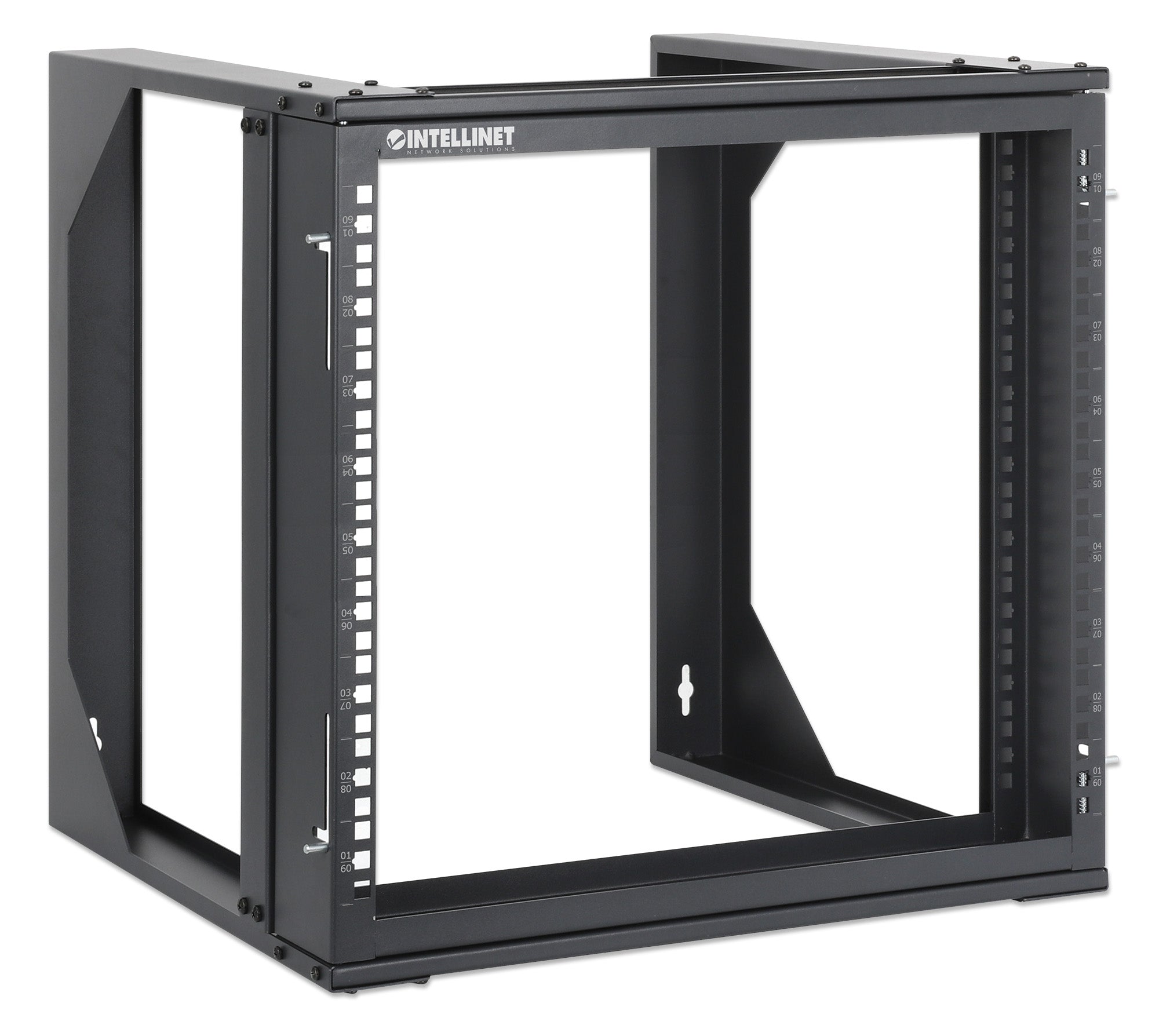

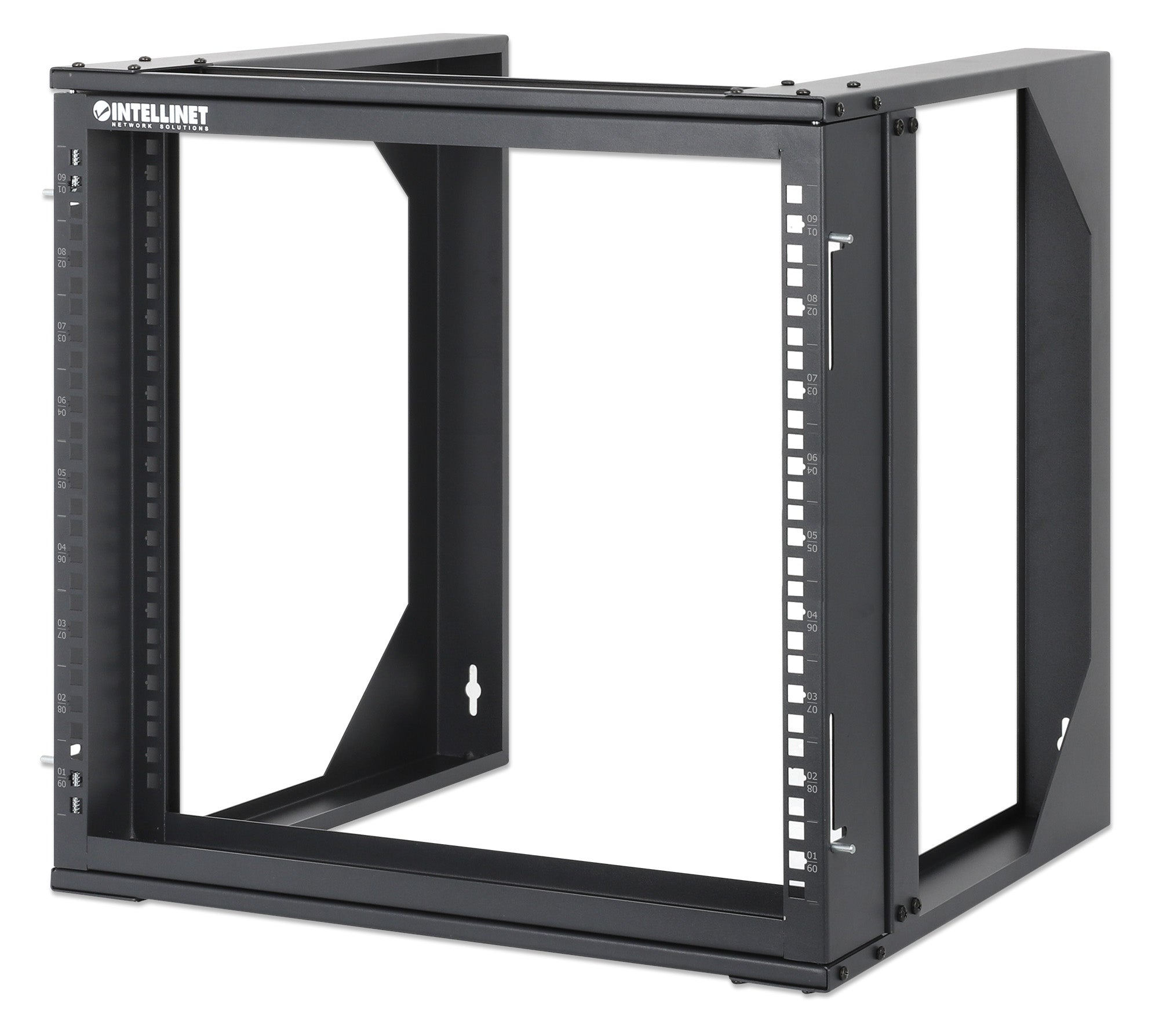

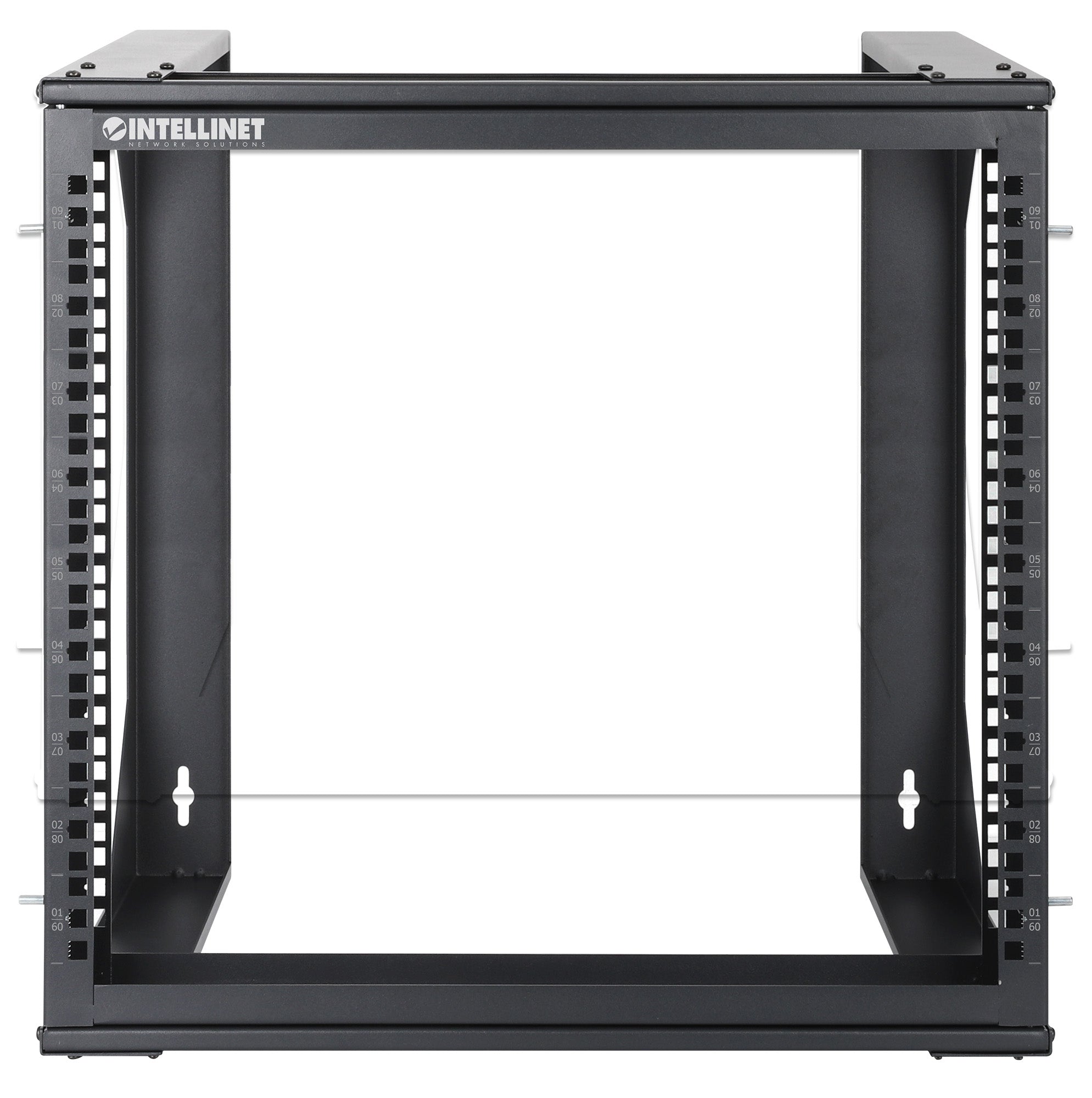

The Intellinet 9U wall-mount 2-post open frame rack is a simple, economical way to house IT equipment in secure locations that do not need a lockable cabinet. The hinged front frame swings open to the left or right for easy access to the rear of panels and switches, while integrity bars add stability and tamper resistance.
Model 716185 is a 9U wall-mount 2-post open frame rack measuring 493 × 500 × 450 mm (H × W × D), finished in black RAL 9004. Usable installation depth is 400 mm. Maximum static load is 30 kg with the frame closed (10 kg with the frame opened).
Built from cold-rolled SPCC steel with antistatic powder coating, it can be wall-mounted or placed on a desk, offers 400 mm usable depth and ships flat-packed with 20 cage-nut sets. Typical uses are branch offices, remote sites, test benches and telecom, surveillance or AV installations. Intellinet backs the product with a three-year warranty.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
Ask for price
