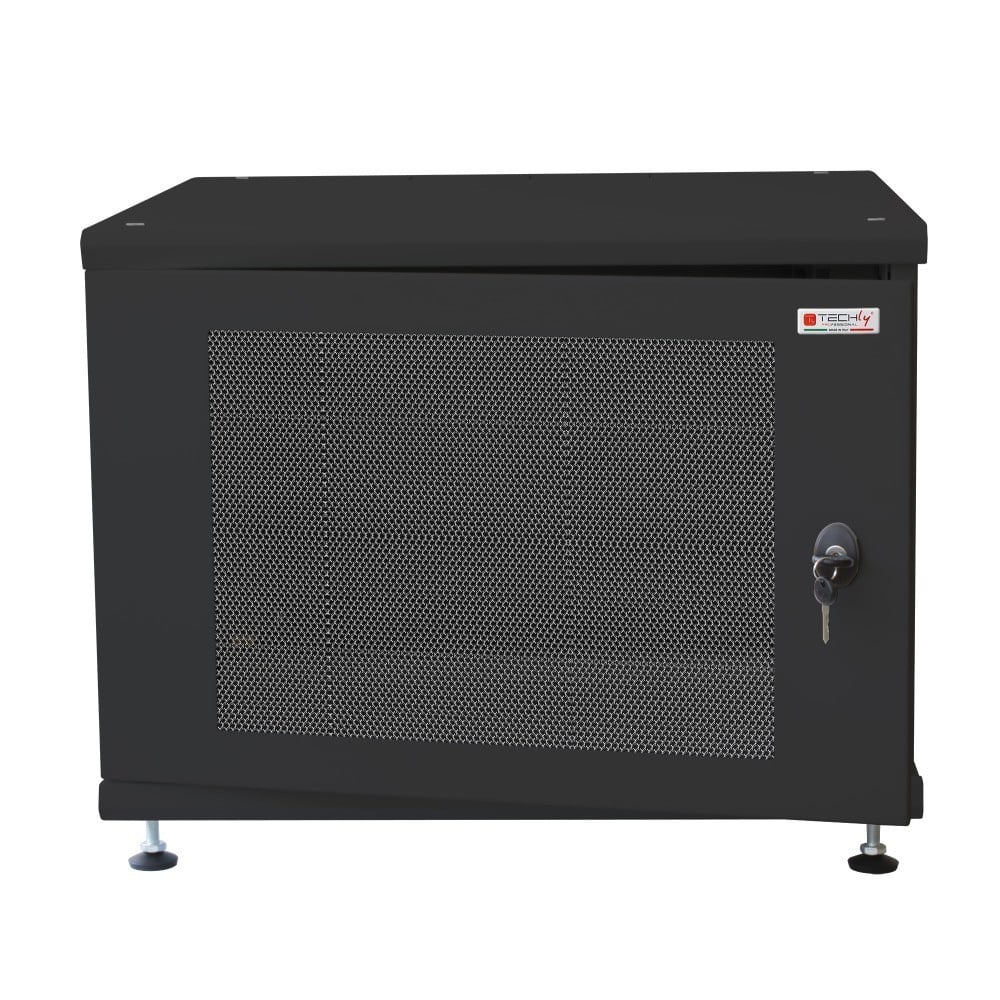

The Techly I-CASE EE-2008BK6 is an 8U 19-inch wall- or floor-mount cabinet from the I-CASE range, measuring 435 mm high, 600 mm wide and 600 mm deep, in black. It is aimed at photovoltaic battery storage systems and other energy equipment that needs a ventilated 19-inch enclosure, installable on the wall or the floor.

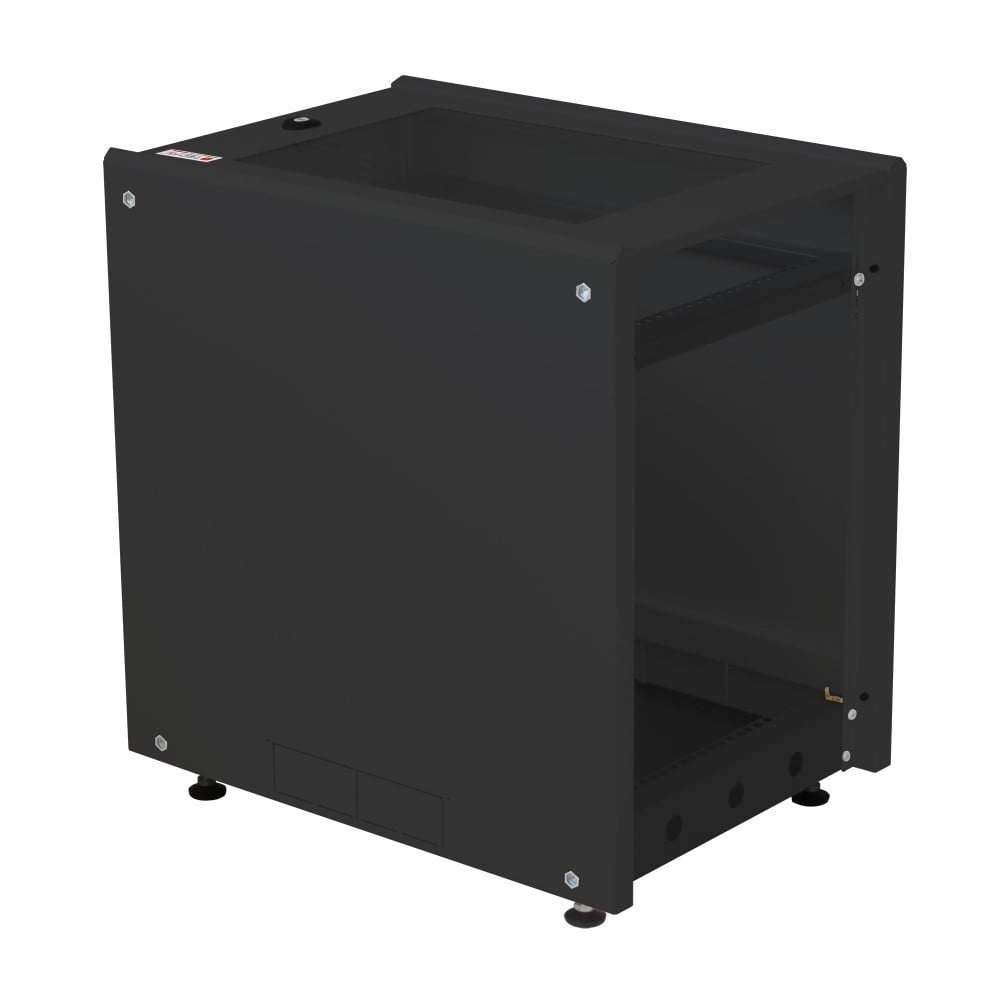

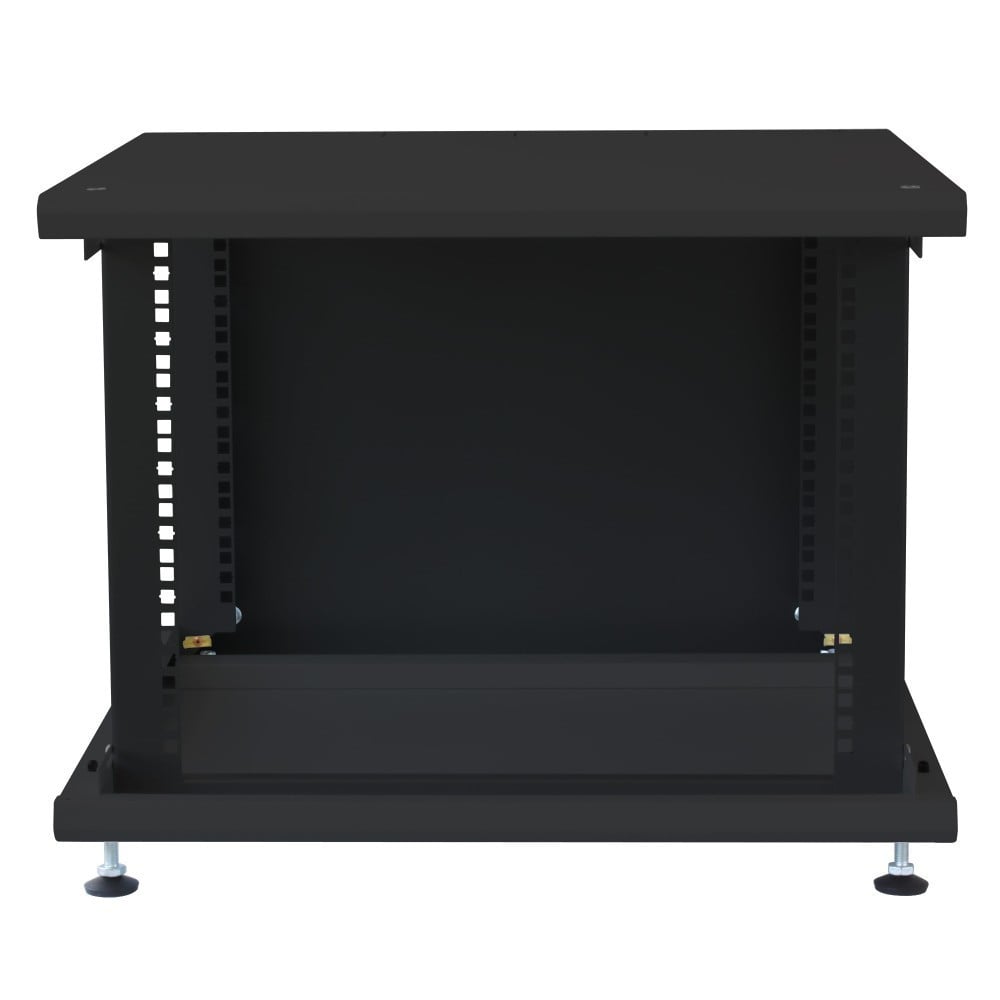

Access is through a perforated steel front door (75% open area) that can be reversed and opens up to 210°, secured by a key lock. The side panels are removable and lockable. The rear is closed by a solid panel. The 19-inch mounting profiles are depth-adjustable, with up to 460 mm of usable depth.
Cable entry points allow tidy routing of power and data cabling. Adjustable feet allow the cabinet to be levelled. The enclosure is rated IP20. It is delivered pre-assembled. A grounding kit is included.
Certifications listed for this model include CE, ISO 9001, EN 60529, EN 62208, EN12150, IEC 297, IEC 297-1, IEC 297-2, IEC 297-3.
