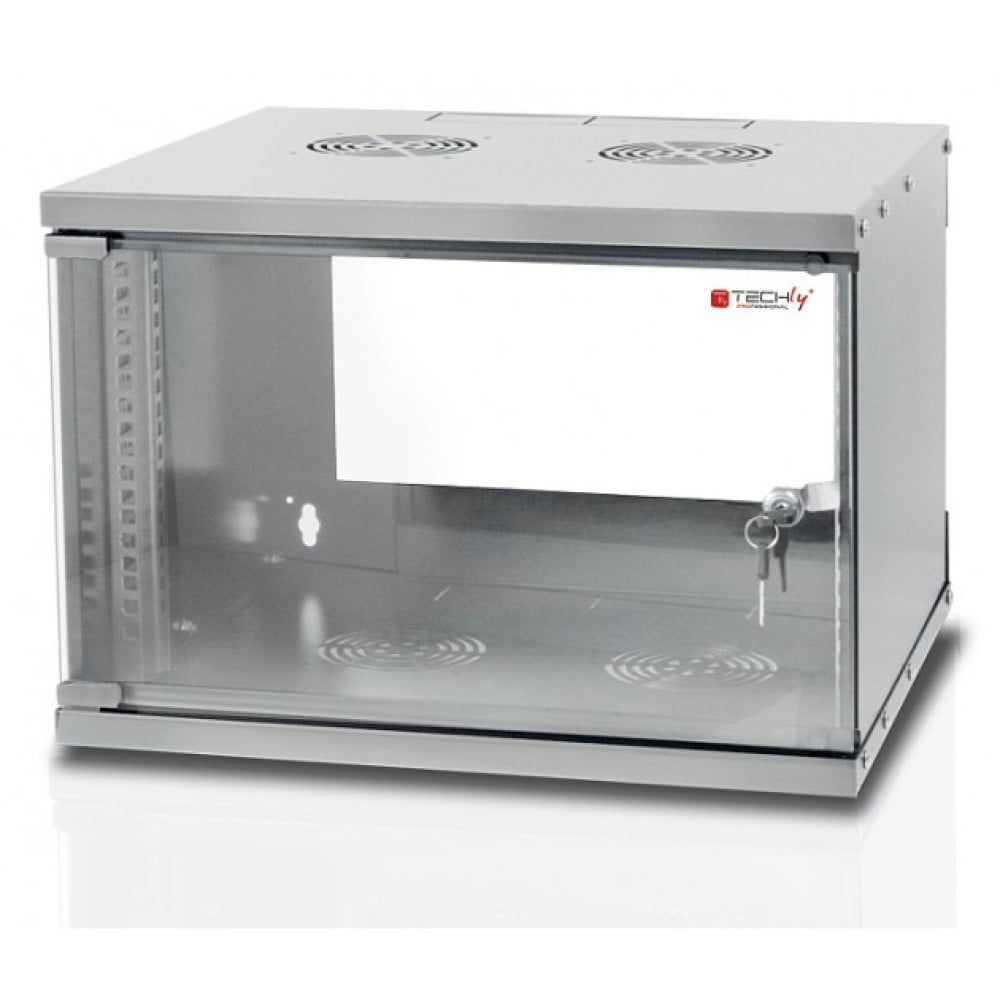

The Techly I-CASE EL-1009G45 is a 9U 19-inch wall-mount cabinet from the I-CASE range, measuring 480 mm high, 500 mm wide and 450 mm deep, in grey. It is aimed at offices, small network rooms and technical spaces that need a compact, lockable enclosure for switches, patch panels and small network equipment.
Access is through a glass front door that can be reversed and opens up to 180°, secured by a key lock. The side panels are fixed. The rear is open for direct wall mounting. The 19-inch mounting profiles are depth-adjustable, with up to 360 mm of usable depth.
Cable entry points allow tidy routing of power and data cabling. The enclosure is rated IP20. Techly specifies a maximum load of 50 kg. It is delivered pre-assembled. A grounding kit is included.
Certifications listed for this model include ISO 9001.
