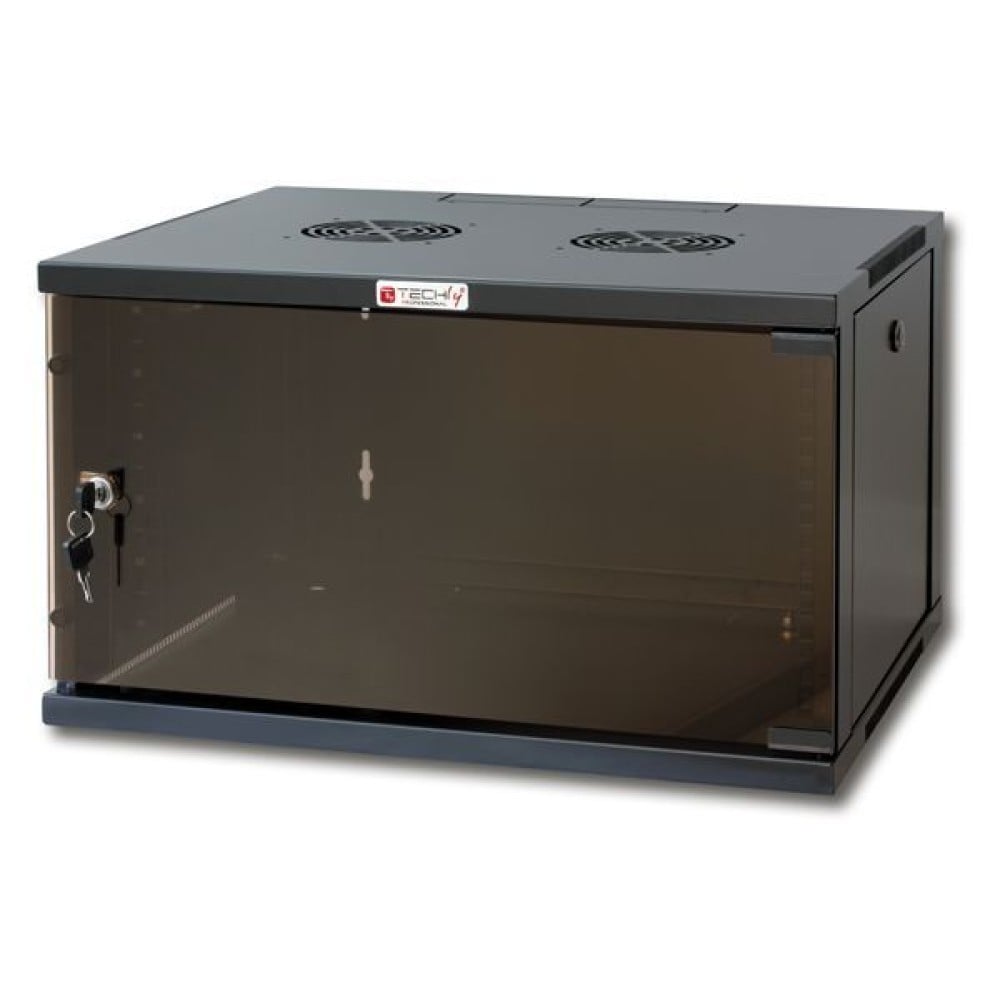

The Techly I-CASE ER-1009B45 is a 9U 19-inch wall-mount cabinet from the I-CASE range, measuring 450 mm high, 540 mm wide and 450 mm deep, in black. It is aimed at offices, small network rooms and technical spaces that need a compact, lockable enclosure for switches, patch panels and small network equipment.

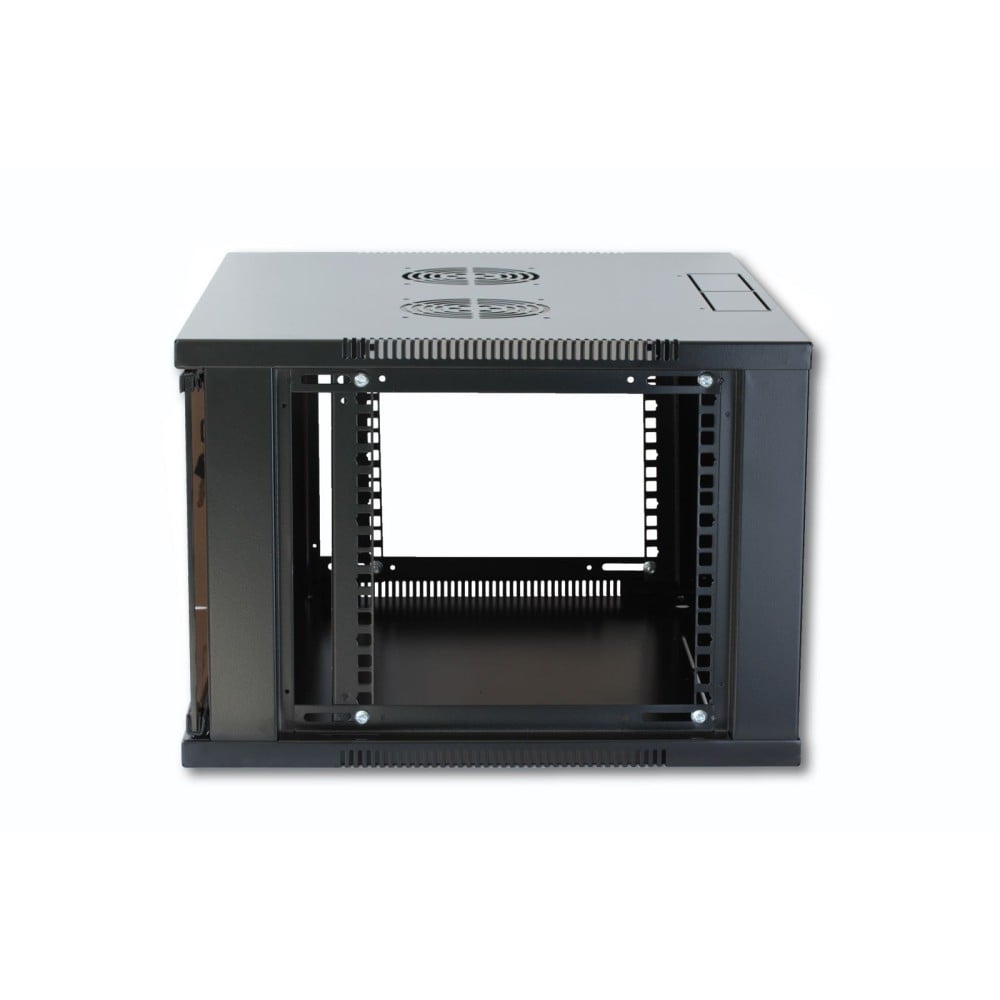

Access is through a glass front door that can be reversed and opens up to 180°, secured by a key lock. The side panels are removable and lockable. The rear is closed by a solid panel. The 19-inch mounting profiles are depth-adjustable, with up to 305 mm of usable depth.
Active ventilation is provided by 2 fans (120 mm). Cable entry points allow tidy routing of power and data cabling. Adjustable feet allow the cabinet to be levelled. The enclosure is rated IP20. Techly specifies a maximum load of 50 kg. It is delivered pre-assembled.
Certifications listed for this model include ISO 9001:2008.
Key features
