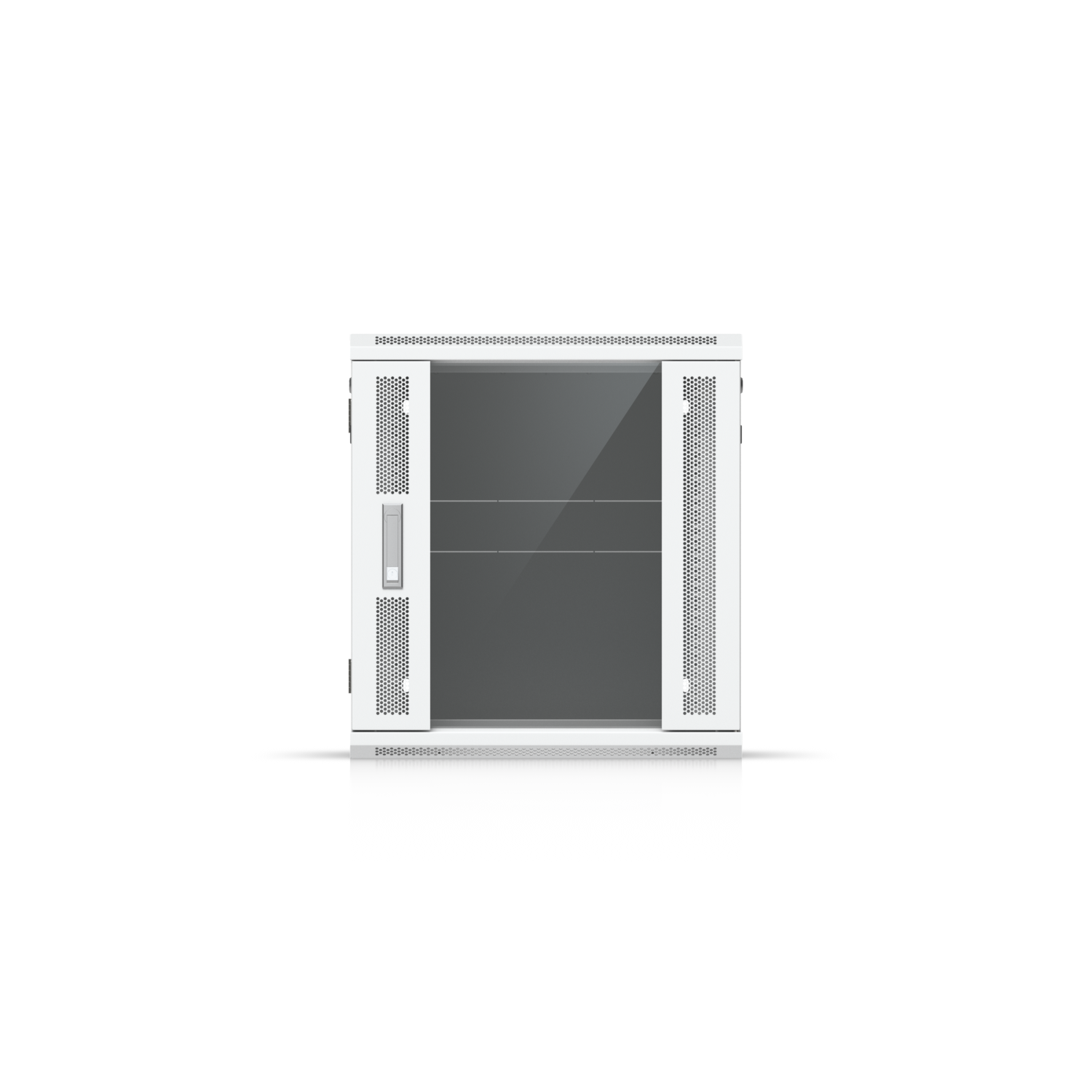

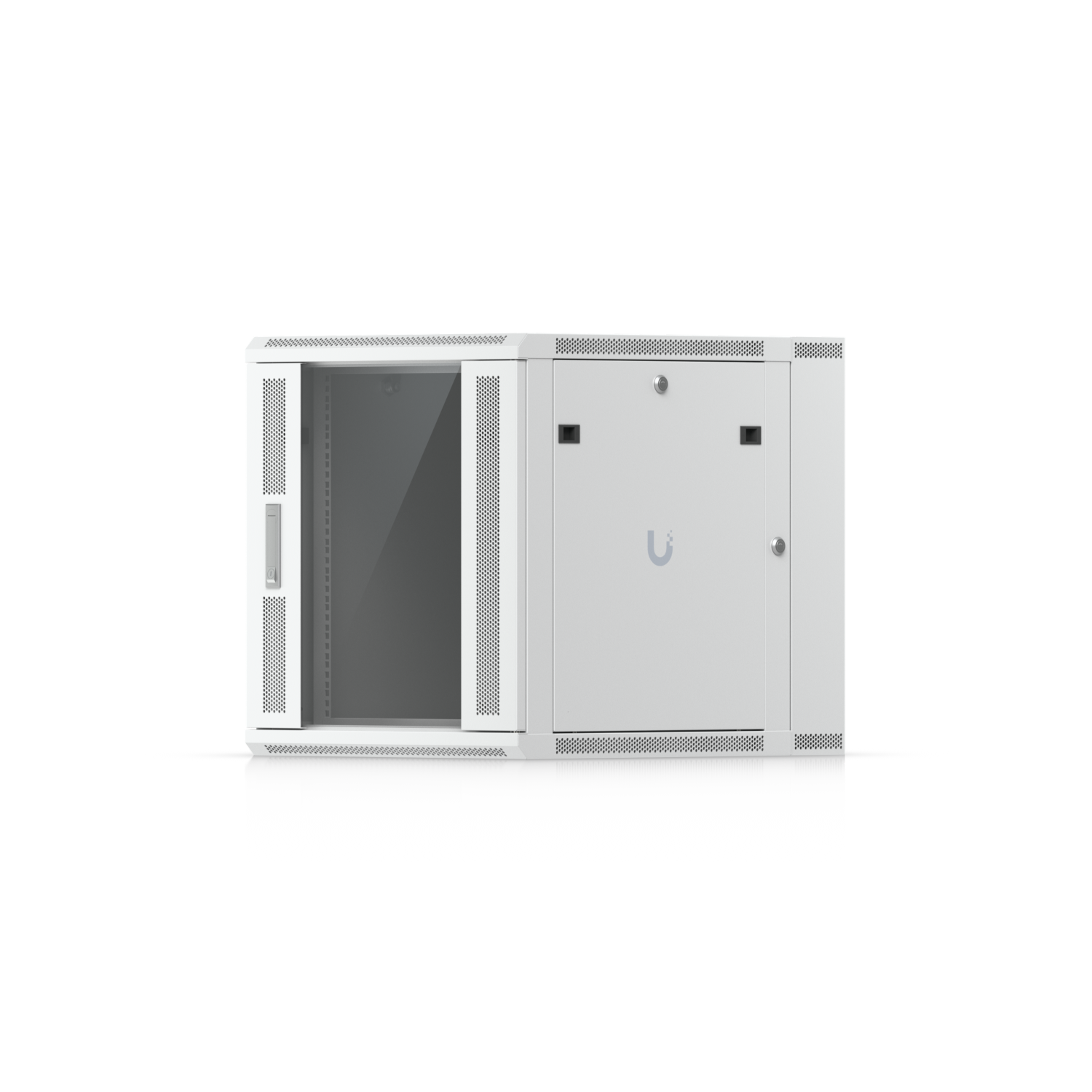

The Ubiquiti UACC-Rack-12U-Wall is the full-depth model in the UniFi rack cabinet range: a fully assembled 12U four-post enclosed cabinet for wall mounting, finished in white powder-coated SPCC steel to match UniFi hardware. It measures 600 mm wide, 720 mm deep and 650 mm high and is rated for 100 kg (220 lb).

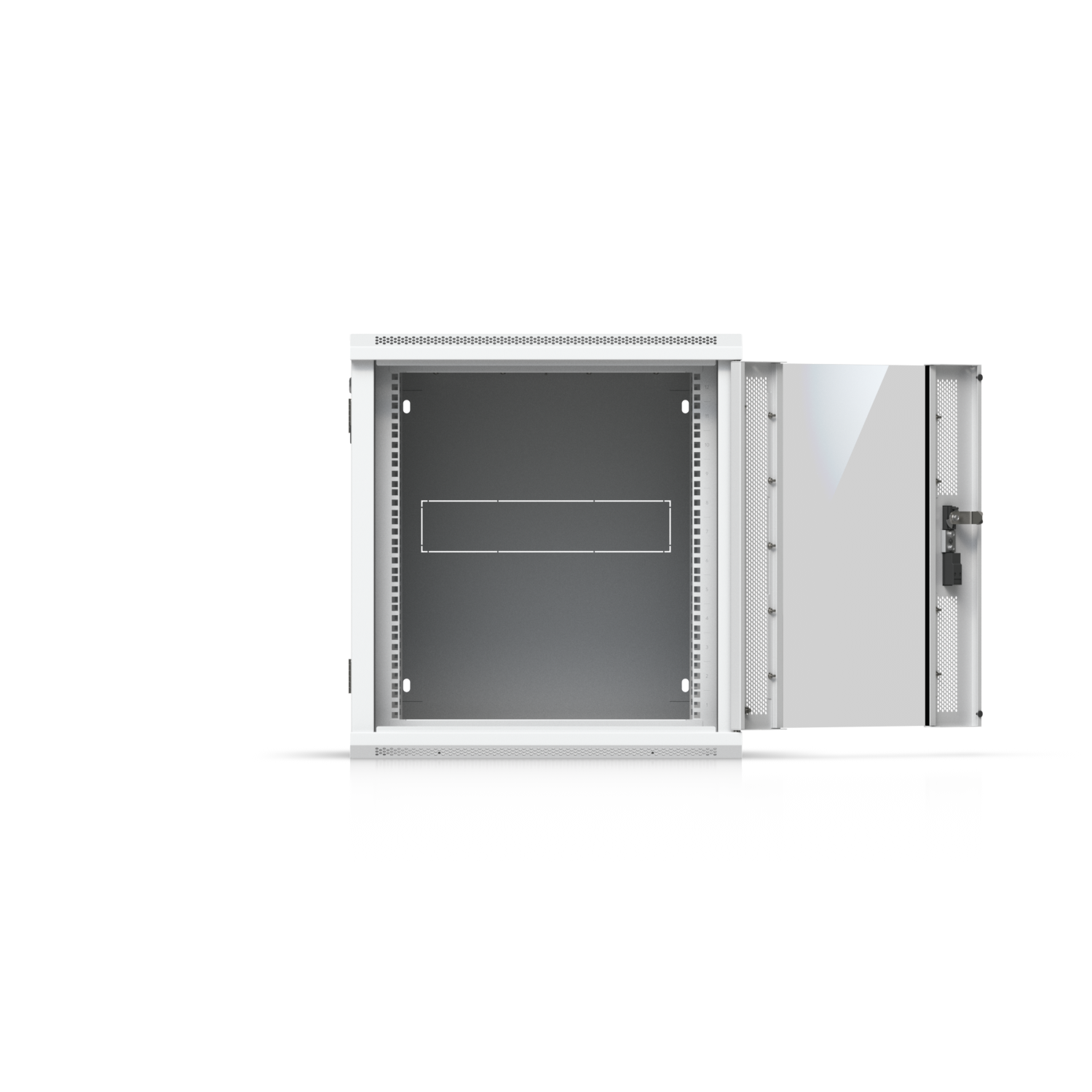

The front door is tempered glass, left-hand outswing by default and reversible, the rear door is solid, swing-out, and the cabinet has 2 solid, removable and lockable side panels. Square-hole mounting rails offer adjustable mounting depth (default 452 mm; max. 532 mm; min. 72 mm).
Cooling is handled by two pre-installed fans, which can run continuously or be switched to thermostat mode so the fans start automatically once the internal temperature exceeds 35 °C. Cable entry openings are provided (rear wall: 394 x 82 mm; top: 350 x 50 mm; bottom: 350 x 50 mm), and security includes 1 front door lock, 1 rear door lock, 2 side panel locks, 3 keys.
The cabinet complies with CE, EIA/ECA-310-E and RoHS and suits network closets, offices and small server rooms built around UniFi gateways, switches and NVRs.
Key features
Every configuration is reviewed for compatibility, power and thermals before we confirm your order.
48 hours of CPU, memory and storage stress testing, with a test report shipped in the box.
Rails, labelled cables and your OS pre-installed — unbox, rack and power on.
6U wall-mount cabinet, 355 × 600 × 400 mm, perforated door, 90.7 kg load
